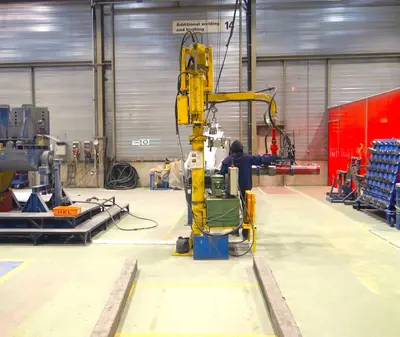

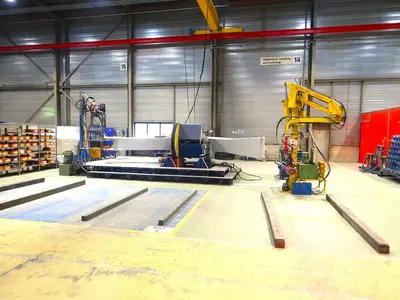

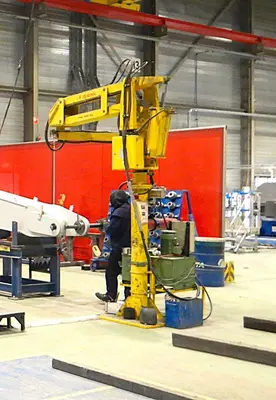

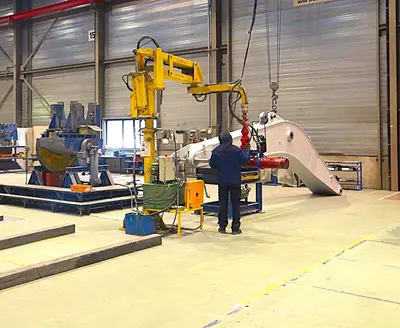

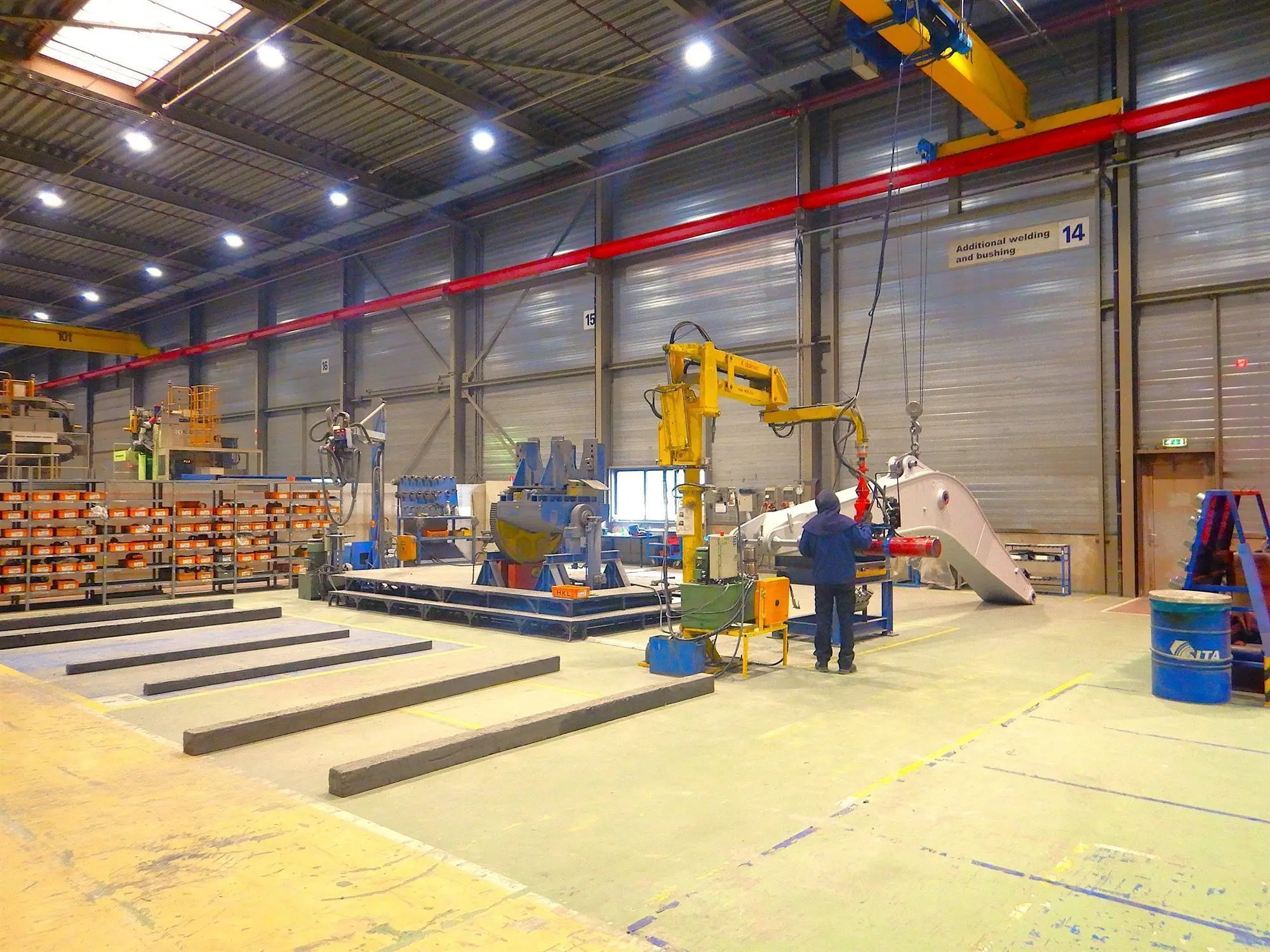

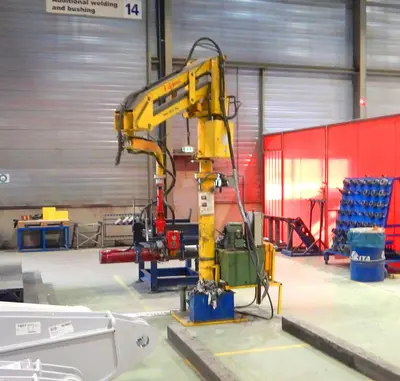

USED DALMEC MXC - 400 KG
Overview
TECHNICAL DATA:
Maximum lifting capacity: 400 kg
Weight of the balancer: 785 Kg
Maximum radius: 3900 mm
Effective radius: 3640 mm
Vertical stroke: 1000 mm
Rotation around mounting flange axis: ∞360°
Rotation around center axis: 300°
Rotation around hook axis: ∞360°
Pneumatic properties:
Power supply: Dry, filtered (50 micron) and oil-free compressed air
Compressed air pressure: 0.95 MPa (after booster)
Consumption in parking mode: 5 Nl/min
Max. compressed air consumption per work cycle: 155 Nl
Noise level:
The maximum sound level of the balancer according to equivalent A: < 72 dB(A)
Specs
Capacity: 400 kg
