(Brand is originally Georg Fischer, taken over by Hämmerle AG)

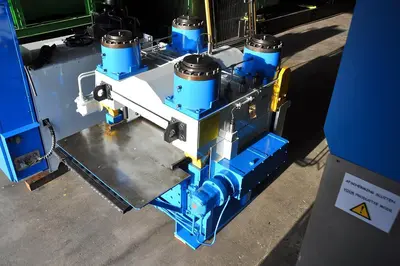

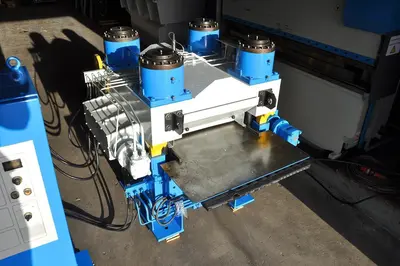

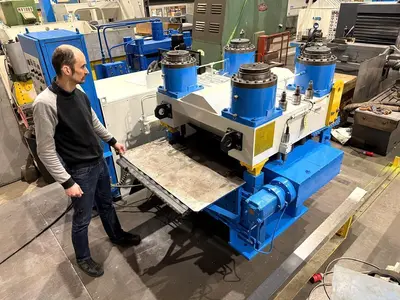

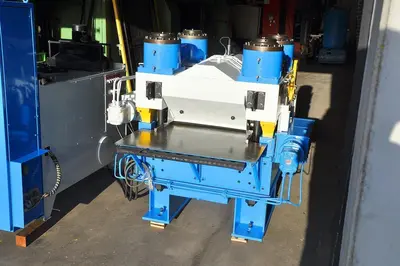

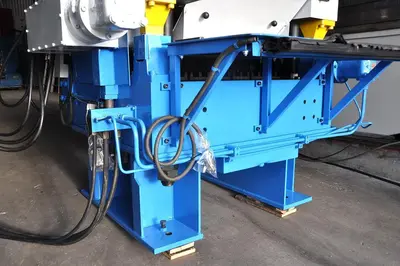

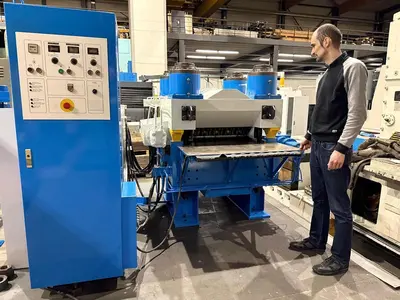

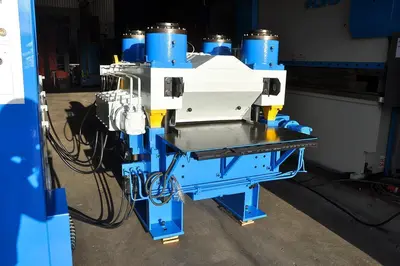

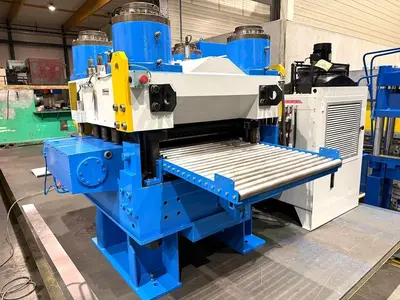

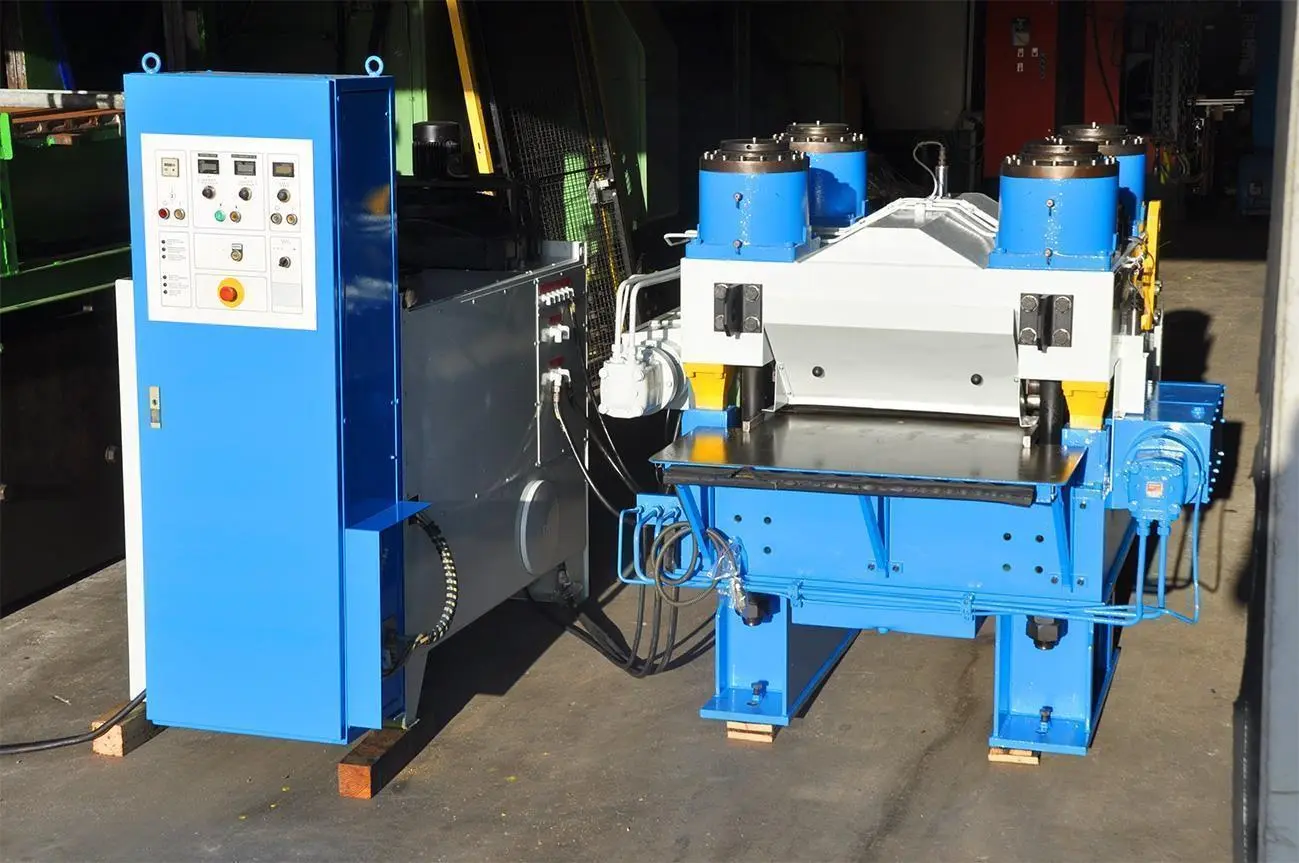

Compact Swiss made machine that uses an automatic leveling pressure system to straighten and relieve stress on parts.
Applications: Fine stamped parts - Clutch plates - Brake discs - Saw blades - Aircraft parts - Laser and plasma cut parts - Flattening of parts prior to robot welding/grinding.
- prevents deflection with 19 powered rollers
- 11 counter rollers in bottom position
- 10 counter rollers in top position

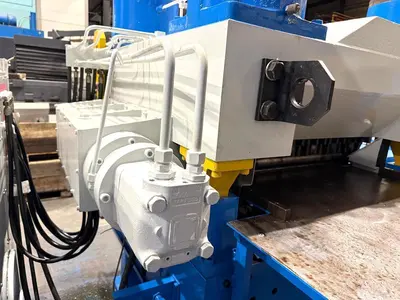

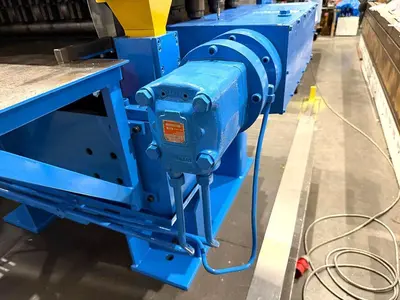

- top and bottom rollers are equipped with hydraulic motor drives
- Overload valves prevent damage to the machine due to overload or incorrect adjustment
- fast set-up time, requires input of 3 parameters (inlet gap - exit gap - input speed)
- machine speed: 2-20 m/min
maximum width: 750 mm
maximum thickness: 12 mm
min. part length: 100 mm
power: 31kW
total weight: 10 tons
