Decoiling and rollforming line for manufacturing roof sandwich panels
Max width of finished panel: 1000 mm
PRODUCTION SPEED 7,30 meter per minute
UP Floor

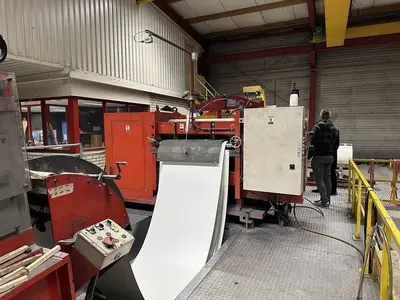

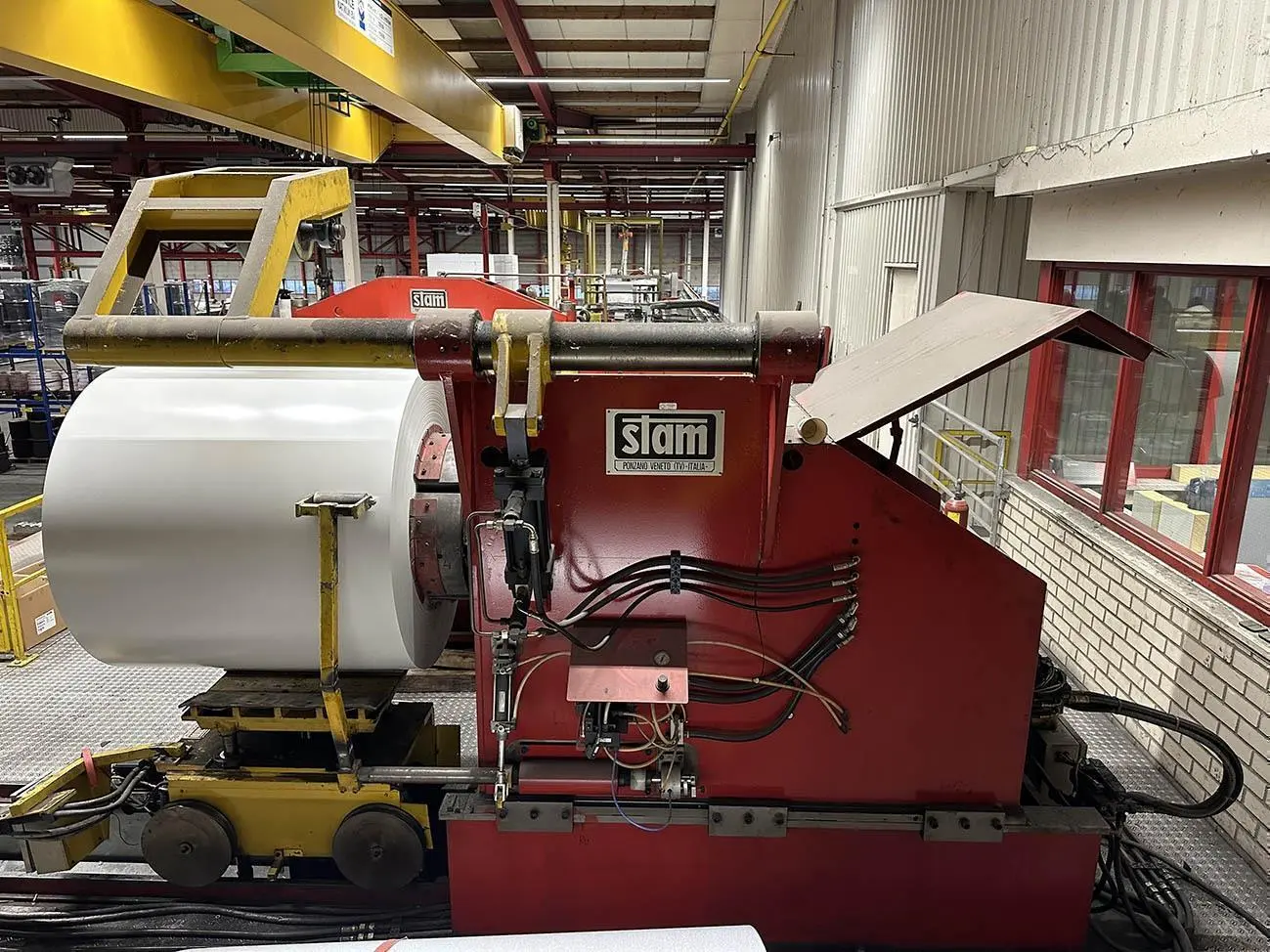

1 - Stam decoiler of 12 ton
2 - Memco embosser
3 - In-line profiling machine
4 - Sheet preheating
DOWN Floor
1 - Stam decoiler of 12 ton

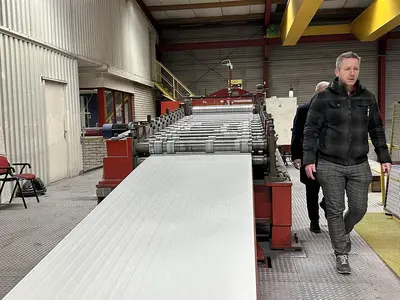

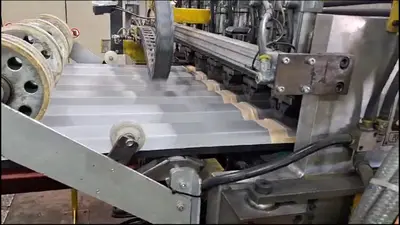

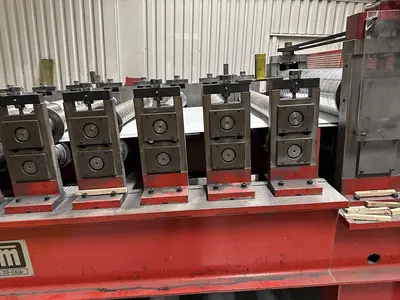

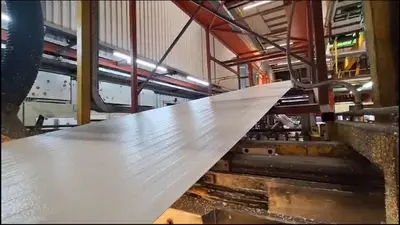

2 - Roll forming machine
3 - Sawing machine
4 - Pick and place for the insertion of sheets in the Stam production line, max panel length 18 meter

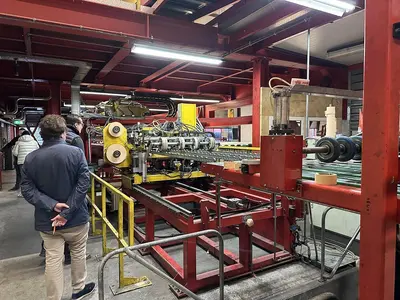

5 - Automatic machine for the overlapping of sheets
6 - Glue device
7 - Sheet preheating room

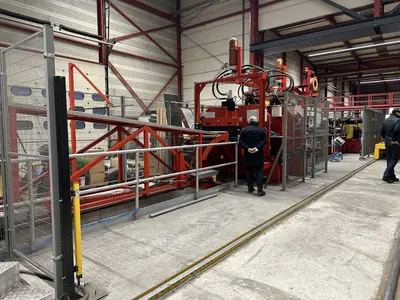

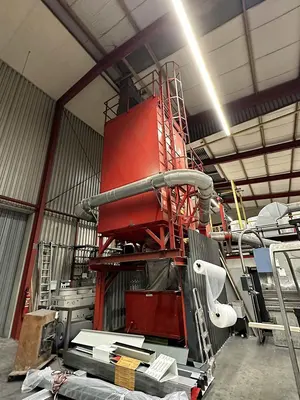

8 - PIR foaming gantry
9 - PIR dosing bench

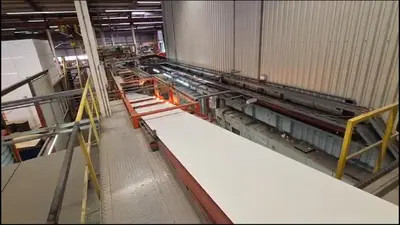

10 - Siempelkamp 25 meter belt press

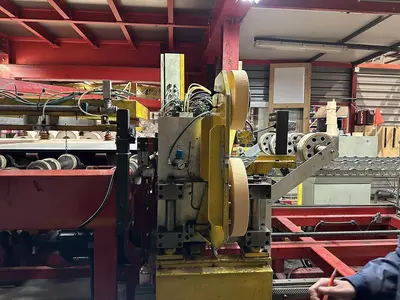

11 - Panels Cutting Machine (Flying Saw)

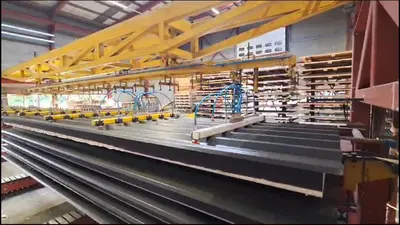

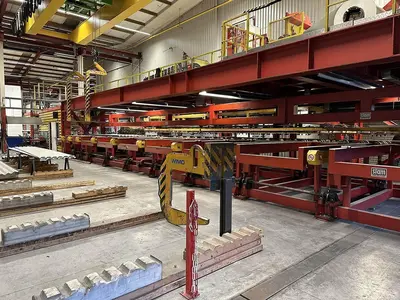

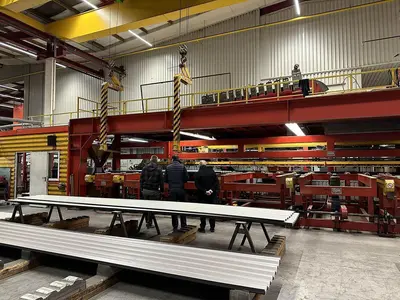

12 - Stacking unit for max panellength 16 meter
13 - Horizontal packing unit
Total length of the line from decoiler to stacking is 90 meters. The packing unit is located next to the stacking unit, panels are moved from the stacking unit with side conveyors.
