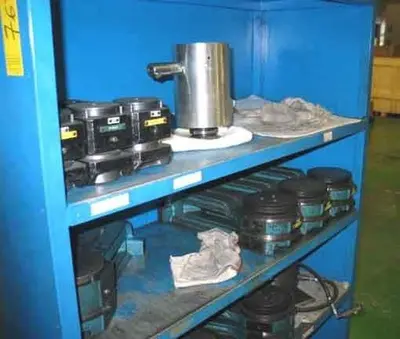

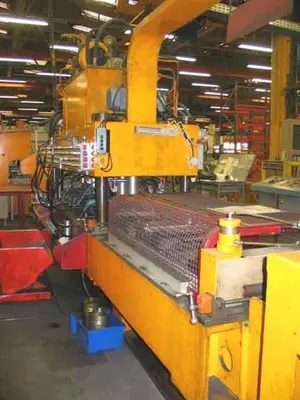

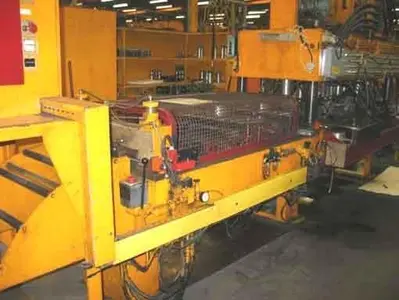

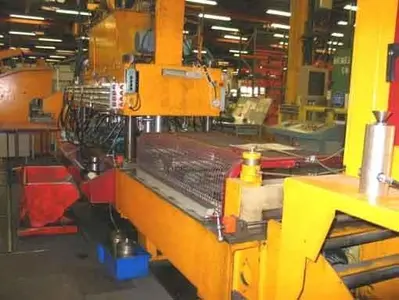

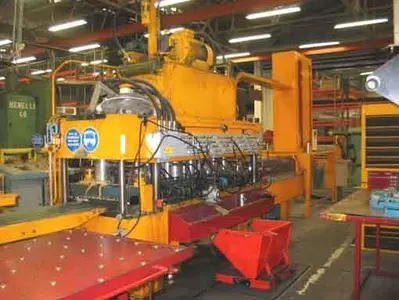

Punching press with hydraulic cylinders with magnetic base
Punching line consist of:
1.Press table 2200 x 1000 mm

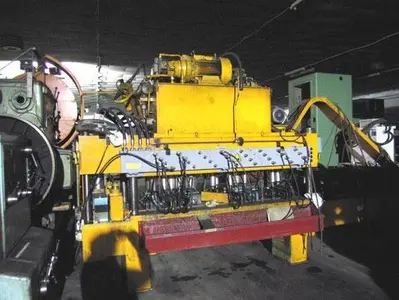

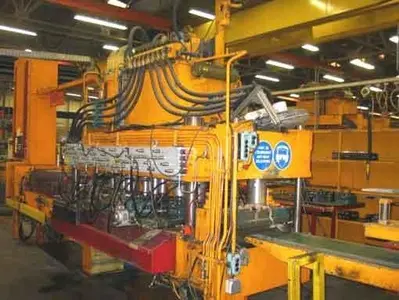

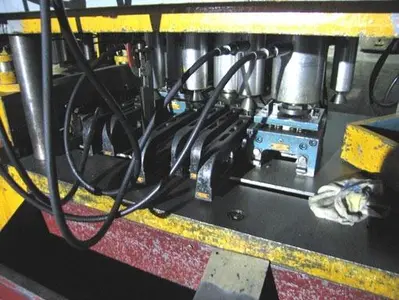

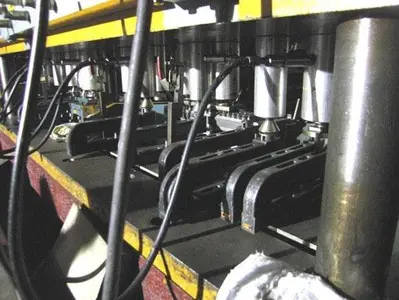

2.Punching unit SUPRA with 2 x 32 hydraulic cylinders: X-axis 2200 mm, Y-axis max 400 mm, punch force 100 T
3.Shear 500 mm width for sheet thickness max 3 mm. Stroke - 800 mm See also O19 3197 and M04 3197
Punching pressure: 100 T
Working range on cross-side (X-axes): 2200 mm
Working range along (Y-axes): 400 mm
Control: CNC
Number of toolpositioners: 32 x 2
Power needed: 20 kW
Tension: 380 V
Length: 8000 mm
Depth: 1500 mm
Height: 3000 mm
Weight: 8 000 kg
