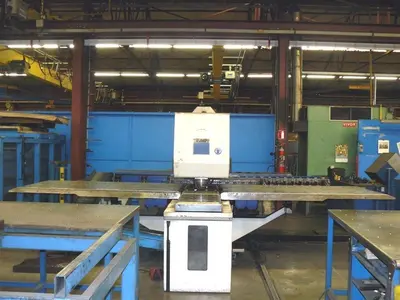

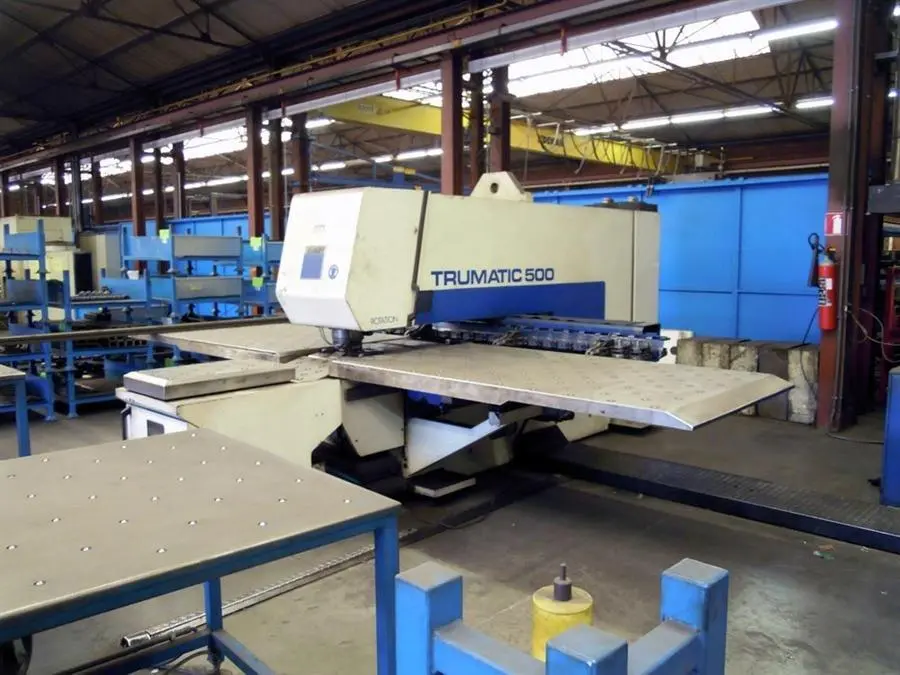

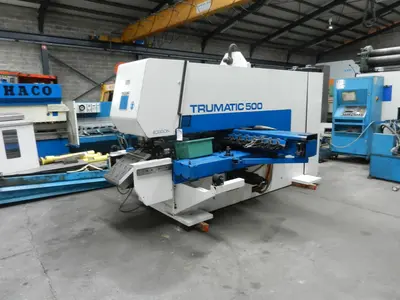

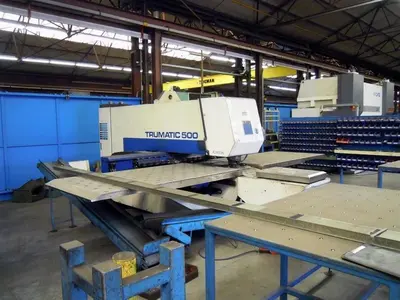

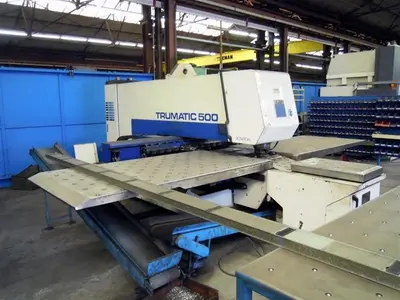

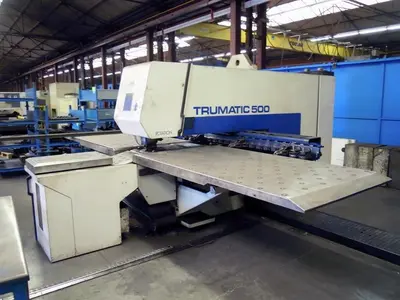

USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC
  • USED TRUMPF TRUMATIC 500R-1300 CNC

USED TRUMPF TRUMATIC 500R-1300 CNC

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hot Stamping Presses
Manufacturer:
TRUMPF
Model:
TRUMATIC 500R-1300 CNC
Stock #:
O.19 6233
Description

Trumatic 500R-1300 CNC options on the machine:
- Multitool
- Tapping
- Repositioning cylinders
- Marking tool
- Softpunch
- Cutting tool (schlitzen)

Specifications

Punching pressure: 22 Ton
Max sheet thickness by punching + nibbling: 8 mm
Max punching dia: 76.2 mm
Max weight workpiece: 200 kg
Working range on cross-side (X-axes): 2535 mm
Working range along (Y-axes): 1280 mm
Positioning speed along X-axes: 90 m/min
Positioning speed along Y-axes: 60 m/min
Control: Trumagraph
Toolchanger: Yes
Number of toolpositioners: 18 positions (indexing)
Power needed: 17 kVa
Length: 6900 mm
Depth: 5800 mm
Height: 2200 mm
Weight: 11000 kg
