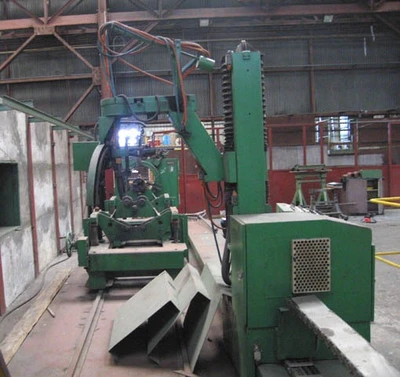

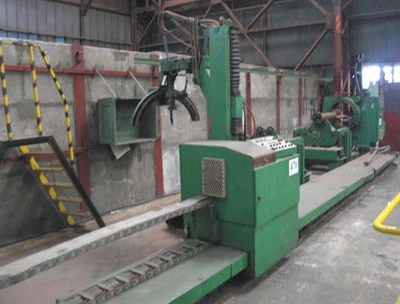

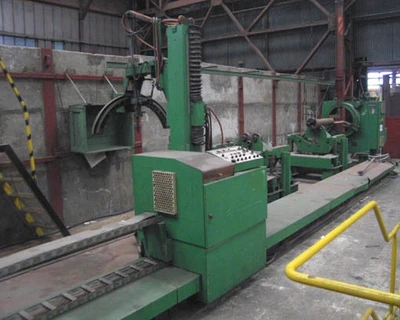

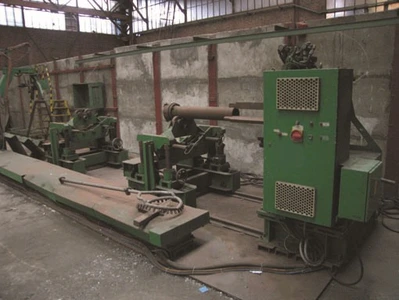

type: RB 650-1200 AGD
5-axis simultanous gas-cutting (plasma) for tubes

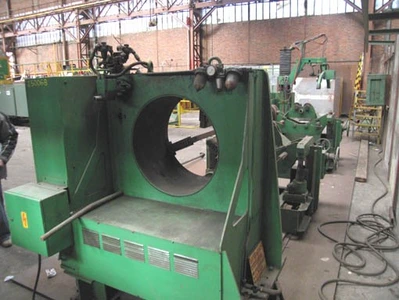

min/max workpiece dia through chuck : 80/650 mm

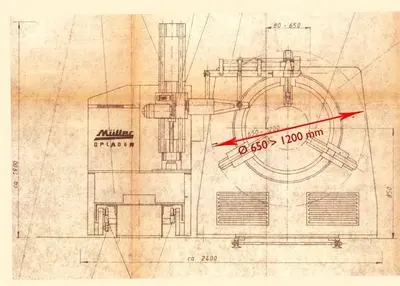

min/max workpiece dia: 650 > 1200 mm
diameter range of oscillation: 80 > 1200mm
chuck speed in manual position: 0 > 4m/min
speed of cuttinghead in manual position: 0 > 1400 mm/min
max torch angle: +/- 60° & 45°

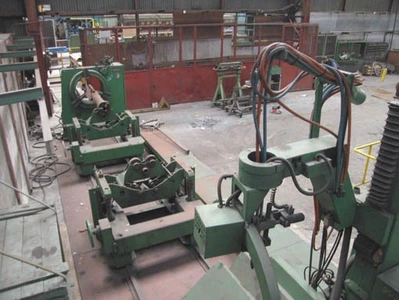

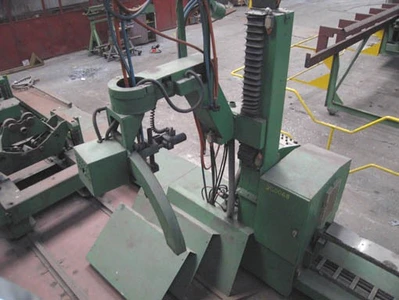

The CNC axes are as follows:

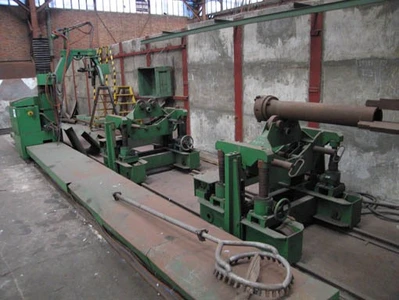

700 mm > Rotation of the workpiece inside the chuck system (Y-axis)
13 000 mm > Longitudinal movement of the cutting head along the workpiece axis (X-axis)

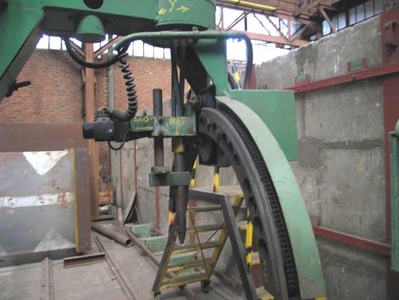

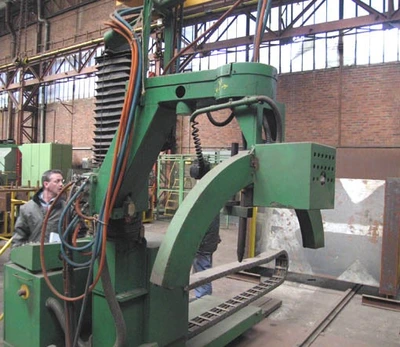

180° > Oscillatory movement of the cutting head (B-axis)
360° > Rotation of the cutting head (C-axis)
Transverse movement of the cutting head at 90° to the workpiece axis (V-axis)
