Consists of
1. - Trumpf HL 4006 YAH-laser.
- Resonator max.cap: 4000W

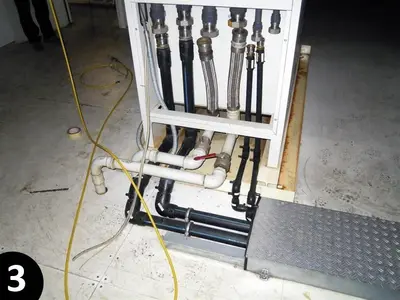

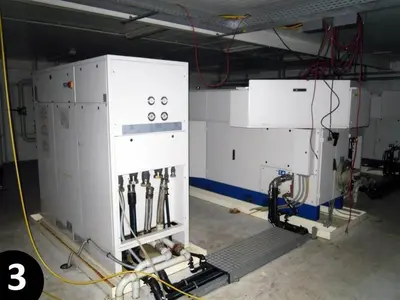

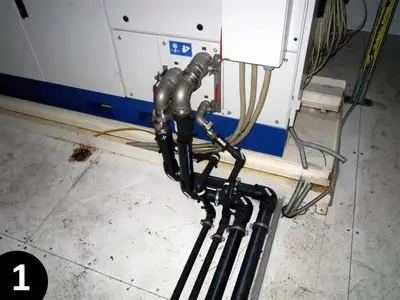

2. - Chiller Riedl for Resonator and Cooling

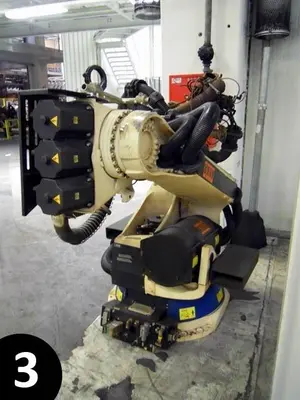

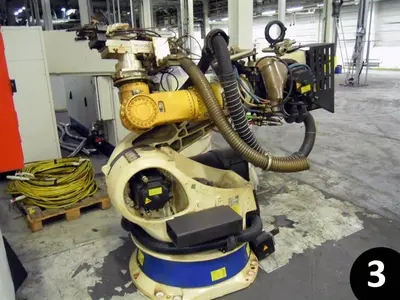

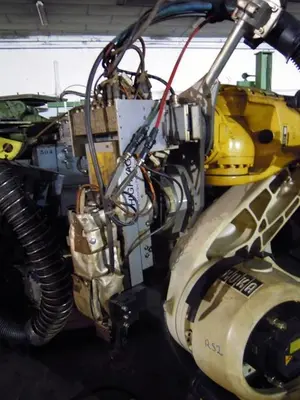

3. - Kuka Robot: type KR 150

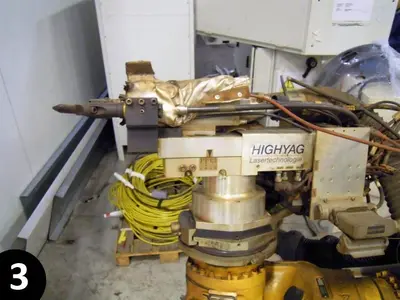

- 6 AXES with HighYAG laserwelding / cutting head

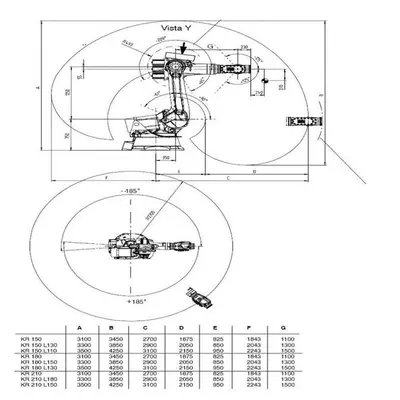

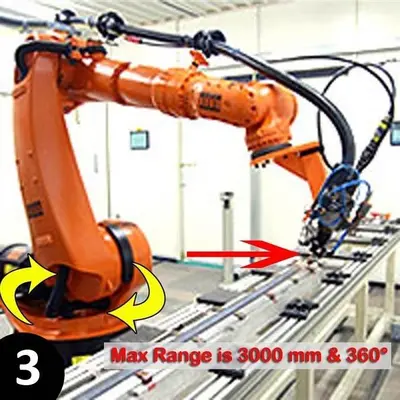

- Max workrange 3000 mm equipped with HIGHYAG laser welding cutting head.

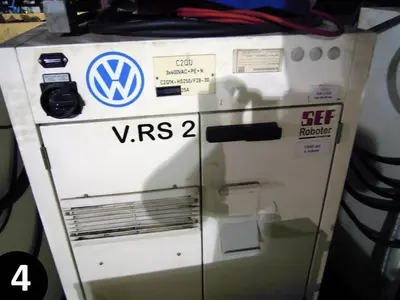

4. - SEF-Roboter VRS 2
- Controlbox with handcontrol/joystick for KUKA-Robot
5. - 30 meter optical Fiber cable with connections for copeling resonator mounted on the YAG Robot-laserhead
6. - Optional 7th axis transversal movement of the robot 2000mm available
Example of the welding speed: steelplate 0.7 x 0.7mm = 100 mm/sec.
7. - The trumpf resonator feeds the laser by glassfiber cable up to 30m lenght max.
In use 2004, nearly new condition.
Type of Laser: Trumpf
Power: 4000 W
Control: KRC 2
