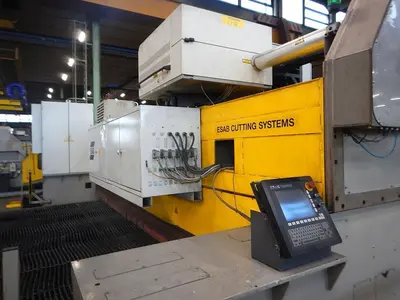

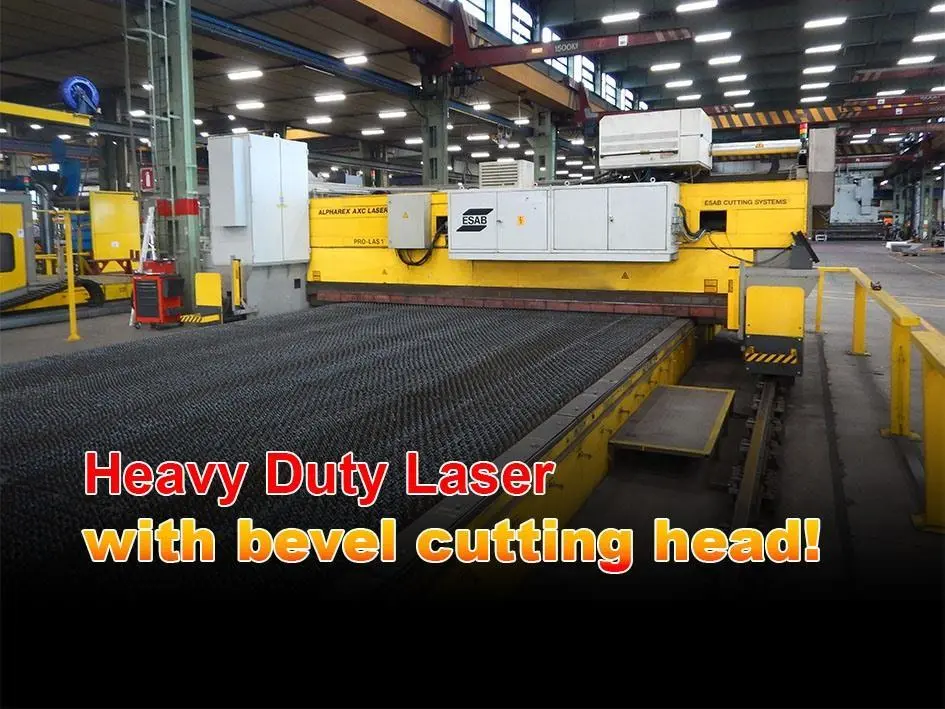

USED ESAB TRUMPF HEAVY DUTY BEVELCUT LASER 24 X 6,3 METER
Overview
Description

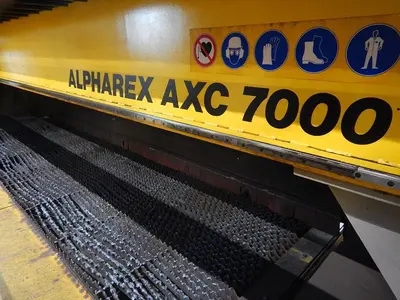

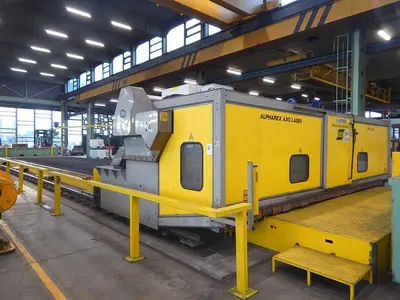

Type: Alpharex AXC 7000
Trumpf TLF 4000 Turbo

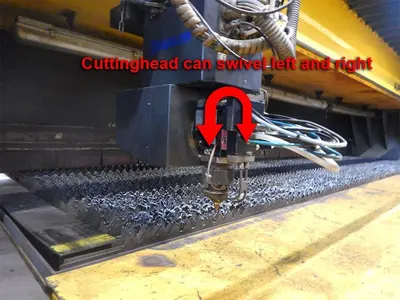

Cutting head can swivel and can make bevel cuts!!
including Columbus software with all options

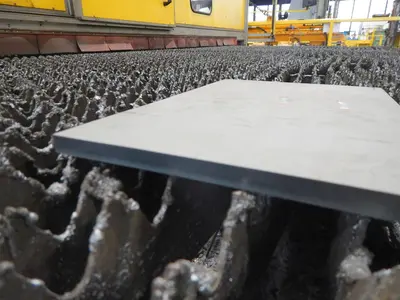

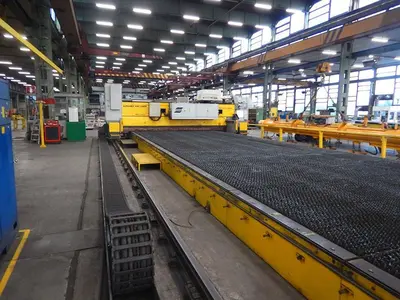

Ezeclean cutting tables with integrated dust extraction
Pro-Las laser guard system = allows for operating times of up to 8 hours without the need of permanent supervision
- Trackwidth: 7000 mm
- Cuttingwidth: 6300 mm
- Height travel of cutting head: max 260 mm

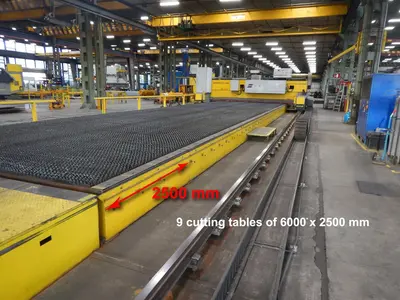

- 9 cutting tables of 6300 x 2500 mm
- Video camera for monitoring cuttinghead
Laser

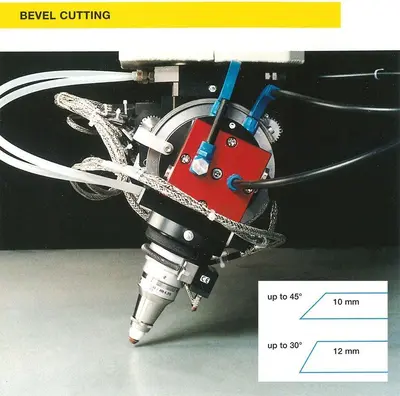

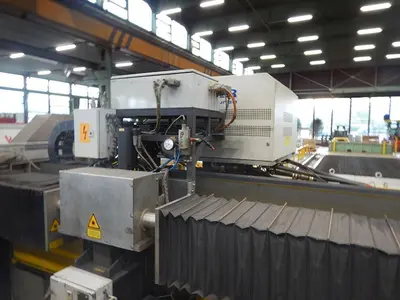

cutting head for vertical and bevel cutting on flat plates in horizontal
position

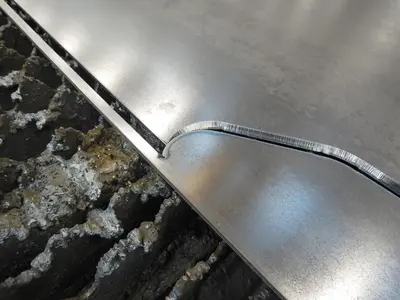

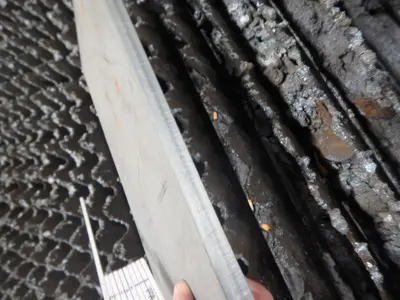

Up to 20° bevel angle laser quality cuts are possible, with larger
bevel angles serrations and burrs must be expected
Max vertical cutting steel: 20 mm
Max vertical cutting stainless steel: 12 mm
Max vertical cutting alu: 8 mm
Max bevel cutting steel: 15 mm
Max bevel cutting stainless steel: 10 mm
Max bevel cutting alu: 6 mm
Columbus
software:
> Basic module comprises various functions which enable the
convenient generation of machine programs from part information.
> Including the modules integrated Cad-system, 65
standard shapes and DXF-convertor
> Marking tool module
> Bevel unit module
> Data management module, for the organization and administration of
the parts to be processed
> Date information module, calculation of layouts
> Plate management module
> Automatic nesting module, fully auto nesting of any kind of contour
Specifications
Type of Laser: TLF 4000 Turbo
Power: 4000 Watt

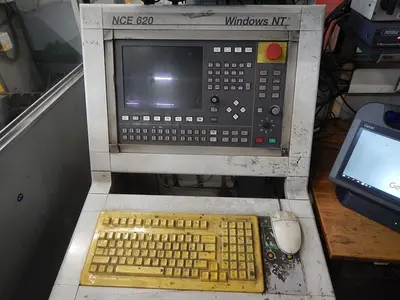

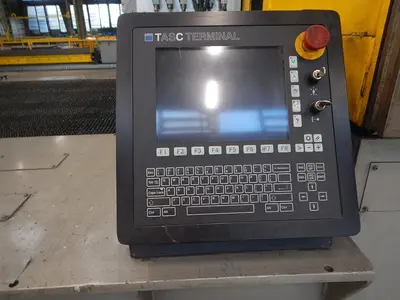

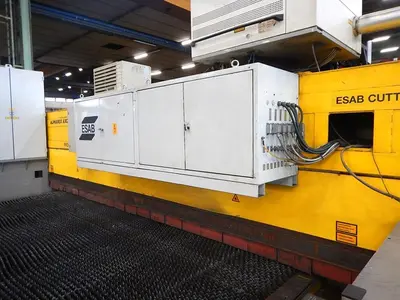

Control: Esab NCE 620 + Trumpf Tasc
Longitudinal travel X-axis: 24 000 mm
Cross travel Y-axis: 6300 mm
Hight travel Z-axis: 260 mm
Max cuttingthickness in steel: 20 mm
Max cuttingthickness in Inox: 15 mm
Courant needed: 3x 400V
