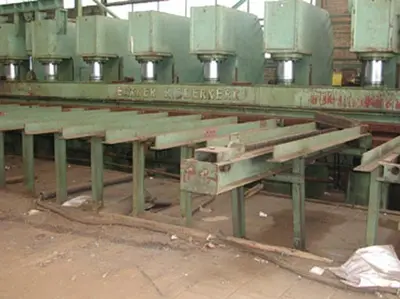

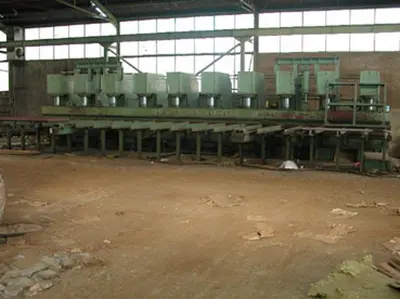

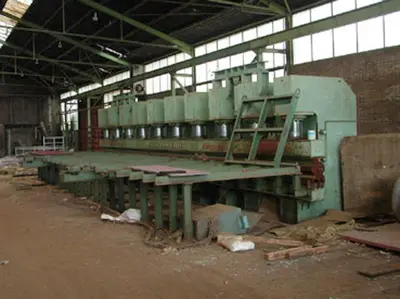

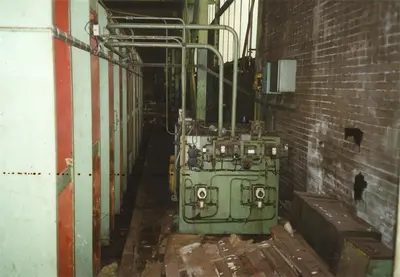

Pressbrake currently equipped for making C-profiles. By changing the bending die it can be used for other products aswell.

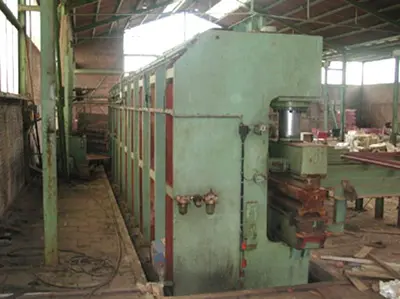

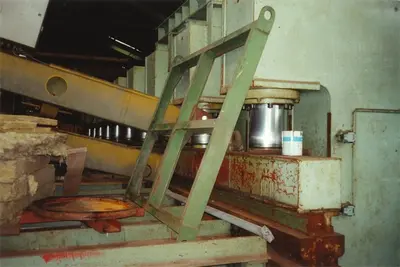

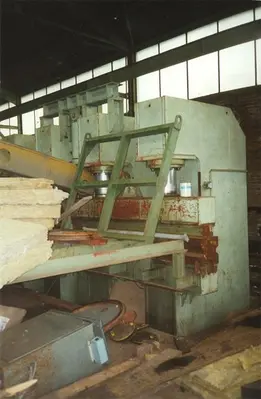

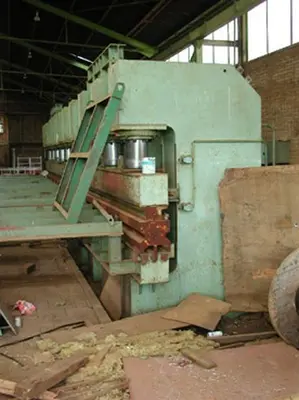

The machine consists from 10 identical C-frame presses.
Pistondiameter: 250 mm
Max opening without tooling: 1380 mm

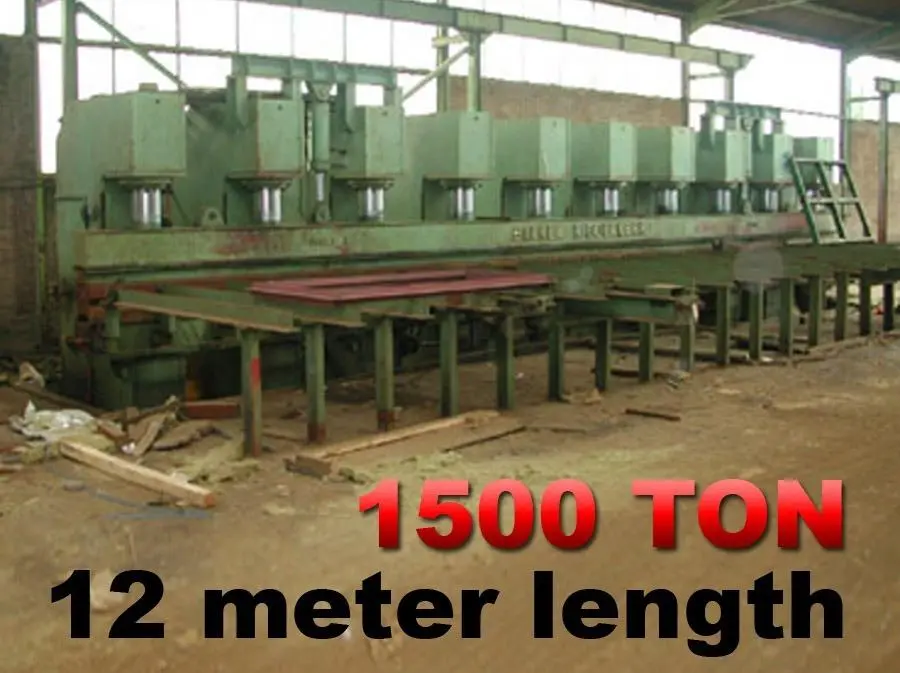

Capacity: 1500 ton x 12 000 mm
Max stroke: 300 mm
Depth of throat: 350 mm
Table width: 300 mm
Depth: 1600 mm
Height: 2950 mm
Weight: 45 ton
Bedknife: yes
Multi V-shaped clamp: yes
