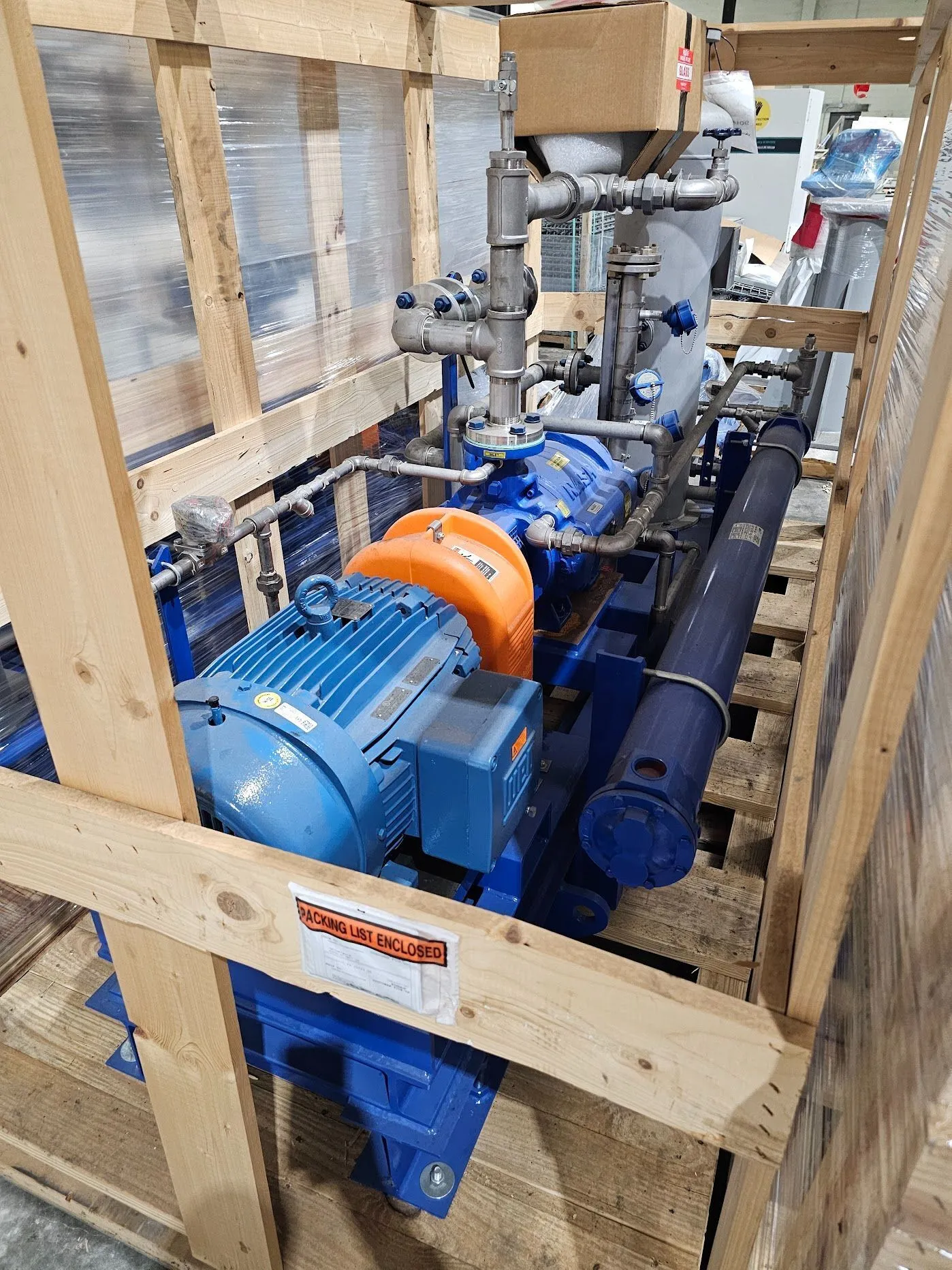

2022 Unused Nash Vacuum Dryer Skid System
Overview
Description
Unused 2022 Stainless Steel Nash Vacuum Dryer Skid System which includes the following:
(1) Sealant Heat Exchanger - 80,758 Btu/hr, 316 stainless steel tubes rated at 150 psi @ 300F, 316 stainless steel shell rated at 150 psi @ 300F
(1) Transfer Pump - 3.0 hp, 316L stainless steel, 2K2x1LF-100 M3 LF, 5 gpm @ 100' TDH, 1750 rpm
(1) Circulation Pump - Finish Thompson AC4, 316L stainless steel, 3/4 hp, 12 gpm @ 54.33' THD
(1) Solvent Receiver Tank - Approximiately 40 gallon 316L stainless steel, internal pressure rated at 15 psi/FV @ 250F, jacket pressure rated at 150 psi/FV @ 250F, 18z' dia. x 38" straight side
(1) Separator Tank - Approximately 20 gallon 316L stainless steel, internal pressure rated at 40 psi/FV @ 250F, 12" dia. x 44" straight side
(1) Vacuum Pump - 25 hp, 316L stainless steel, 225 acfm, 1750 rpm
