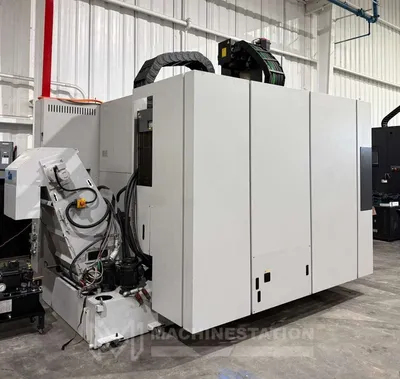

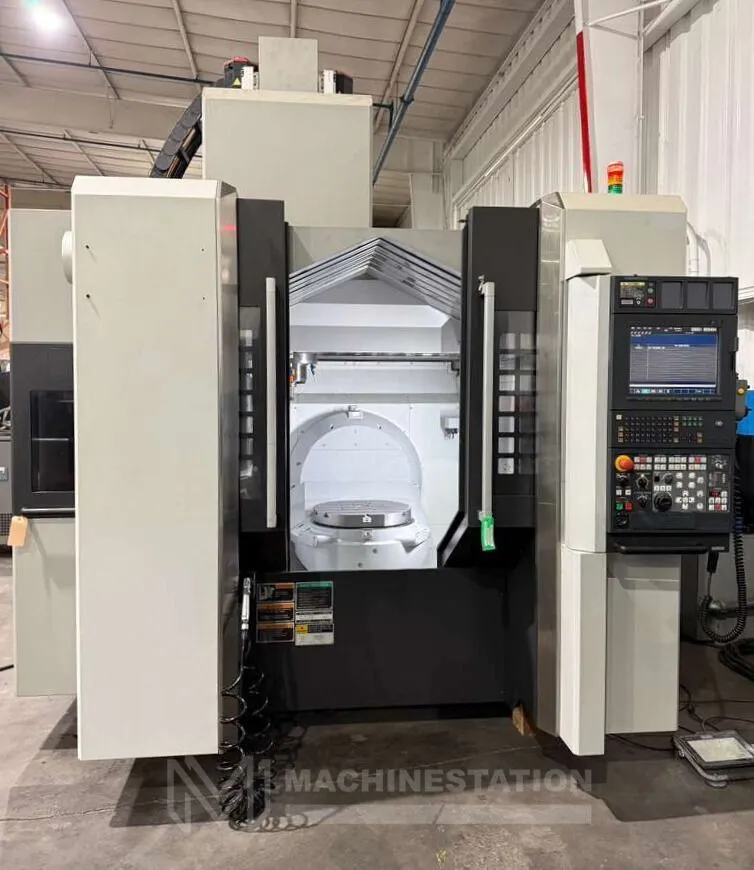

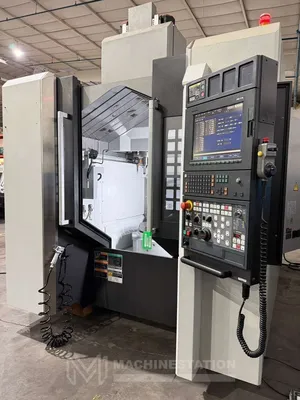

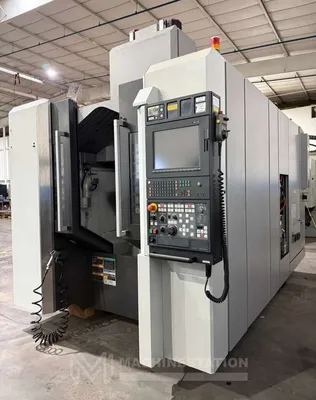

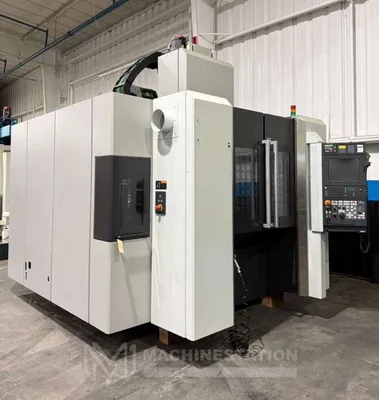

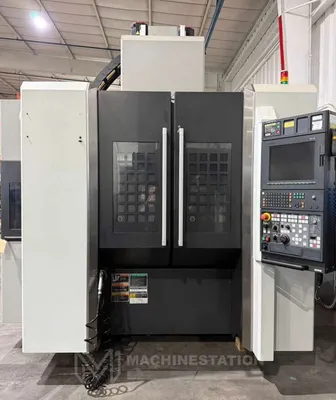

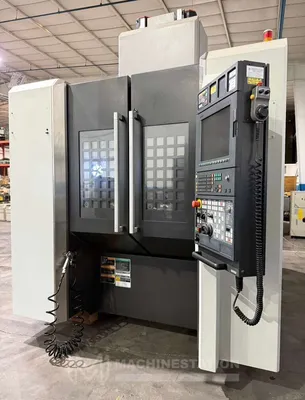

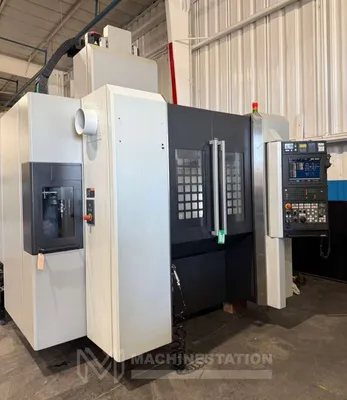

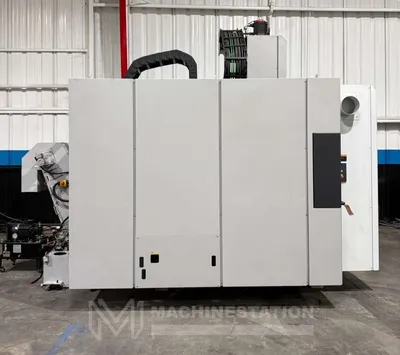

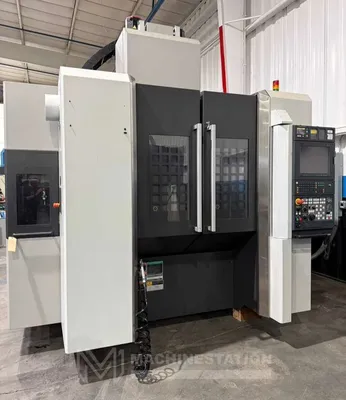

USED 2008 MORI SEIKI NMV5000 DCG

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

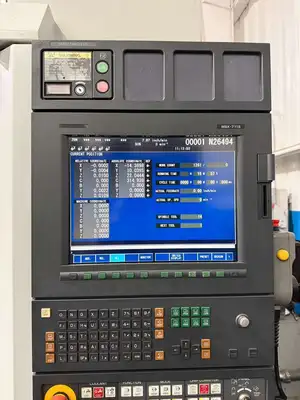

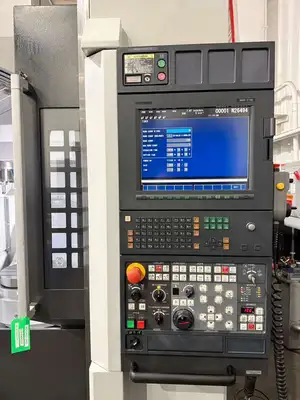

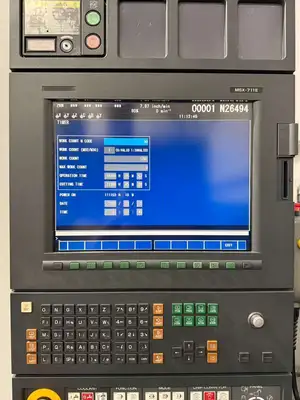

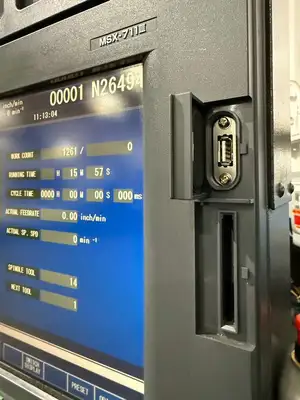

Mori Seiki MSX-711 III MAPPS CNC Control
11,396 Hours Cutting Time
5-Axis Simultaneous Machining
Driven at the Center of Gravity (DCG) Structure
Coolant System

Travels:
X-Axis Travel: 28.7″
Y-Axis Travel: 20.1″
Z-Axis Travel: 20.1″
Distance From Table to Spindle Gauge Plane: 5.1″ – 25.2″
Rapid Traverse (X/Y): 1,968 Inches Per Minute
Rapid Traverse (Z): 1,575 Inches Per Minute
Cutting Feedrate (X/Y): 1,968 Inches Per Minute
Cutting Feedrate (Z): 1,575 Inches Per Minute
B-Axis Speed: 13.88 RPM
C-Axis Speed: 120 RPM

Table:
Table Size: 19.7″ Diameter
Maximum Table Load: 660 lbs
Maximum Workpiece Swing Diameter: 27.5″
Maximum Workpiece Height: 17.7″
C-Axis Rotation: 360°
B-Axis Travel: +160° to −180°

Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: HSK-A63
Spindle Motor Power: 25 HP

Automatic Tool Changer:
Tool Capacity: 31 Tools
Max Tool Diameter (With Adjacent Tools): 3.5″
Max Tool Diameter (Without Adjacent Tools): 4.9″
Max Tool Length: 11.8″
Max Tool Weight: 17.6 lbs
Tool-to-Tool Time: 1.8 Seconds

General:
Air Requirement: 72.5 psi @ 132 L/min

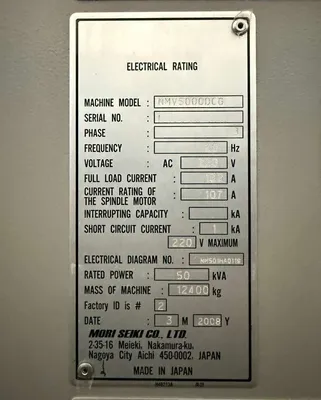

Power: 42.4 kVA / 220v / 3-phase / 60 Htz
Machine Dimensions: 109.1″ × 155.4″ x 128.5″ High Approx.
Machine Weight: 27,340 lbs Approx.

19.7″ Diameter Trunnion Table
12,000 RPM High Precision Spindle
HSK-A63 Spindle Taper
31 Station Automatic Tool Changer
Renishaw Probing System (Probe Included)
Tool Presetter
Through-Spindle Coolant
MPG Handwheel Control
Spindle Chiller

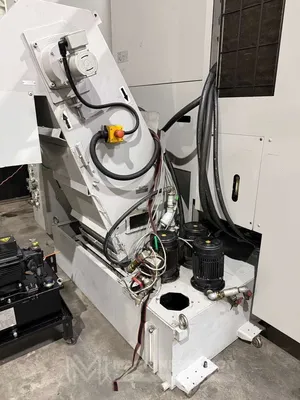

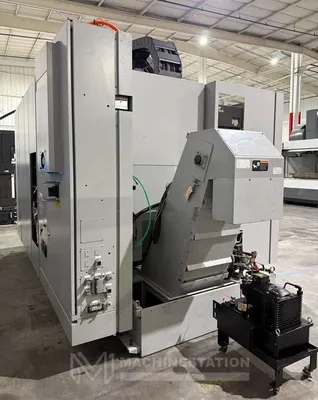

Chip Conveyor
