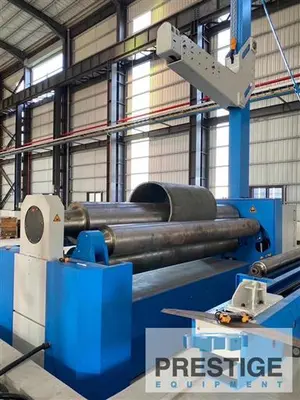

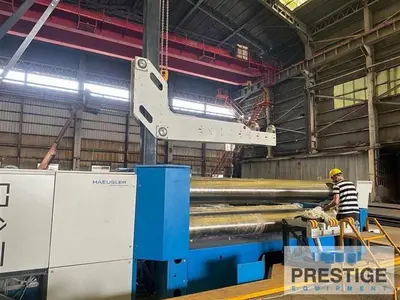

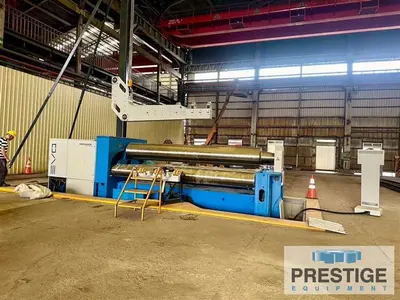

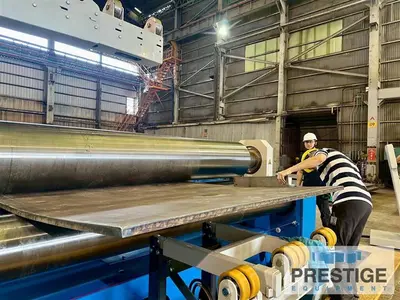

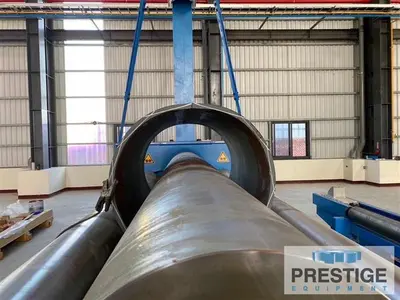

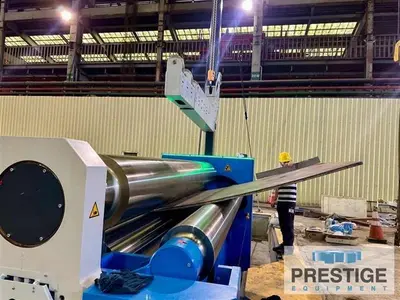

USED 2024 HAEUSLER EVO 42196

SPECIFICATIONS:
Pre-Bending Capacity: 1.33"
Rounding Capacity: 1.49"
Surface Length of Rolls: 165.35"
Top Roll Diameter: 21.25"
Bottom Roll Diameter: 19.68"
Side Roll Diameter: 14.37"
Min. Bending Dia. (Top Roll 21.25"): 23.42"
Min. Bending Dia. (Top Roll 14.5"): 16.14"
Operating Speed: 0-314 IPM
Main Drive Motor: 73.75 HP
Overall Dimensions (LxWxH): 294" x 82" x 95"
Approximate Shipping Weight: 77,200 Lbs

Equipped With:

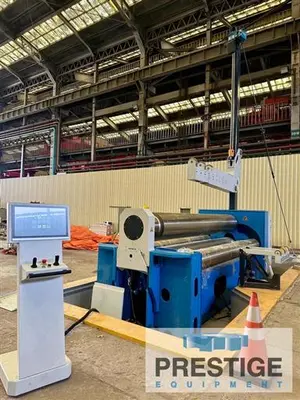

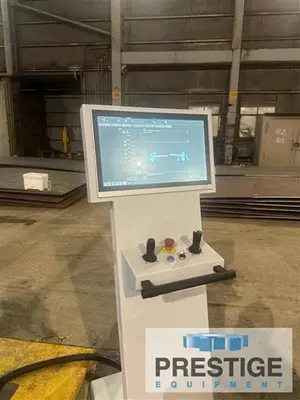

BENDtronic CNC Control with 21.5" Touch Screen Display
Autonomous Bending Package
Installed Remote Access Service for Online Diagnosis
VSA Technology (Allows Bending of Thicker Plates and Samller Diameters)
Automatic Pressure Compensation Between Top and Bottom Roll
Electro-Mechanical Holding System for Rotation of Top Roll
Automatic Protection of Hydraulic System against Overload
Continuous Pressure Adjustment for Bottom Roll
Tilting of Bottom and Both Side Rolls for Cone Bending
Upper Plate Supporting Device
Lateral Side Supporting Device

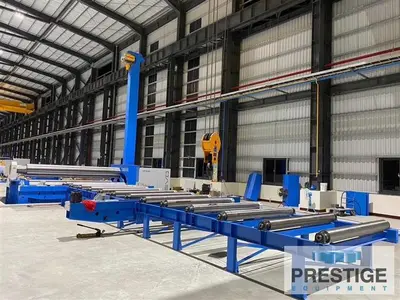

Plate Table Infeed
4-Roll Machine Design

NOTE:
Brand New, Customer Lost Job

Features:
BENDtronic CNC Control with 21.5" Touch Screen Display
Autonomous Bending Package
Installed Remote Access Service for Online Diagnosis
VSA Technology (Allows Bending of Thicker Plates and Samller Diameters)
Automatic Pressure Compensation Between Top and Bottom Roll
Automatic Protection of Hydraulic System against Overload
Tilting of Bottom and Both Side Rolls for Cone Bending
Upper Plate Supporting Device
Lateral Side Supporting Device
Plate Table Infeed
