Used 9,000 Gallon 316 Stainless Steel Jacketed Reactor with Internal Coil & Agitation | Industrial Alloy Fabricators

Used 9,000 Gallon 316 Stainless Steel Jacketed Reactor with Internal Coil & Agitation | Industrial Alloy Fabricators. Stainless Steel 316. Approx. 108" D x approx. 259" straight side. 6" D bottom outlet. Dish top and bottom. 15 PSI internal pressure. 300 degrees F internal temp. 50 PSI jacket pressure. 300 degrees F jacket temp. Half pipe/limpet jacket type. Full vacuum internal. 304 stainless steel jacket. Has internal coil. Has (4) sidewall mounted, full-length straight baffles. Wide sweep impeller. Two-tier, (3) blade agitator. 2.5 HP, 37 RPM drive. 1.5HP, 1155 RPM motor. NB 2032. Mounted on skirt. Built 1992.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

Manufacturer: Industrial Alloy Fabricators

Type: Vertical Batch-Type Agitated Reactor

Capacity: Approx. 9,000 gallons

National Board #: 2032

Year Built: 1992

Mounting: Skirt-mounted

⚙️ Product Description

This Used Industrial Alloy Fabricators 9,000-Gallon Vertical Agitated Reactor is a heavy-duty, large-capacity stainless steel processing vessel built for demanding batch operations across chemical, food, pharmaceutical, and high-viscosity industrial processes.

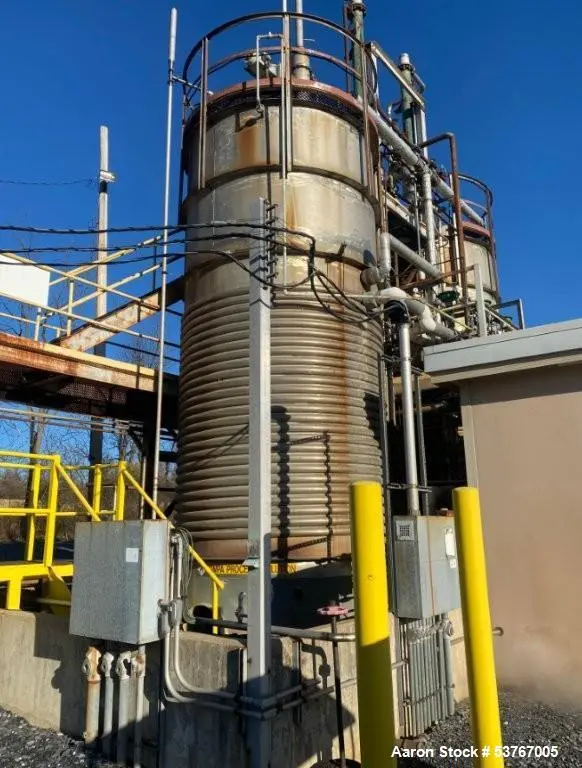

Constructed from 316 stainless steel with a 304 stainless steel half-pipe (limpet) jacket, this reactor provides excellent corrosion resistance and heat-transfer efficiency.
The vessel supports 15 PSI internal pressure, full vacuum, and temperatures up to 300°F internally and through the jacket, making it suitable for a wide range of thermal and pressure-sensitive reactions.

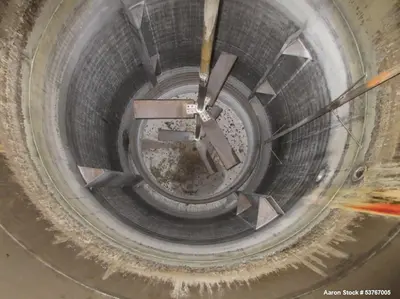

Featuring a dish top and dish bottom, internal coil, four full-length straight baffles, a wide sweep impeller, and a two-tier, three-blade agitator, this reactor is engineered for optimized agitation, blending, and heat exchange.

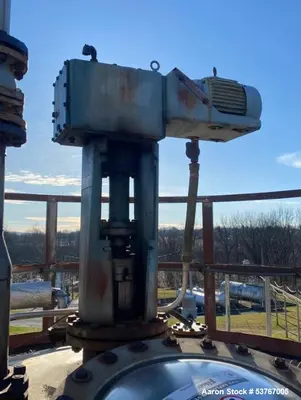

The dual drive system—2.5 HP at 37 RPM plus an auxiliary 1.5 HP at 1155 RPM motor—supports controlled, efficient mixing across various viscosities.

📏 Specifications

Capacity: Approx. 9,000 gallons

Material:

Internal: 316 Stainless Steel

Jacket: 304 Stainless Steel

Dimensions:

Diameter: ~108"

Straight Side Height: ~259"

Head Style: Dish top & dish bottom

Bottom Outlet: 6" diameter

Internal Pressure: 15 PSI

Internal Temp Rating: 300°F

Full Vacuum Rating: Yes

Jacket Type: Half-pipe / Limpet

Jacket Pressure: 50 PSI

Jacket Temp Rating: 300°F

Internal Coil: Yes

Agitation System:

Wide sweep impeller

Two-tier, 3-blade agitator

(4) Full-length straight baffles

Drive: 2.5 HP @ 37 RPM

Motor: 1.5 HP @ 1155 RPM

Mounting: Skirt-mounted

National Board #: 2032

Year Built: 1992

🧩 Applications

Chemical reactions

Polymer & resin production

Solvent-based processing

Pharmaceutical intermediates

Adhesives & coatings

Petrochemical blending

Food-grade mixing (non-reactive)

Specialty chemical manufacturing

Slurry blending & suspension processing

High-viscosity batch production

⚗️ What Might This Be Used For

This reactor is ideal for high-volume batch reaction, mixing, heating, and cooling.
Common applications include:

Exothermic reactions

Viscous material blending

Thermal processing requiring precise heat transfer

Vacuum operations for solvent recovery or degassing

Chemical formulation & intermediate manufacturing

🧱 Products That Could Be Processed in This Reactor

Polymers & resins

Adhesives & coatings

Industrial chemicals

Cosmetic bases

Petrochemical blends

Pharmaceutical intermediates

Slurries, suspensions & dispersions

Solvent mixes

Bio-based formulations

High-viscosity compounds
