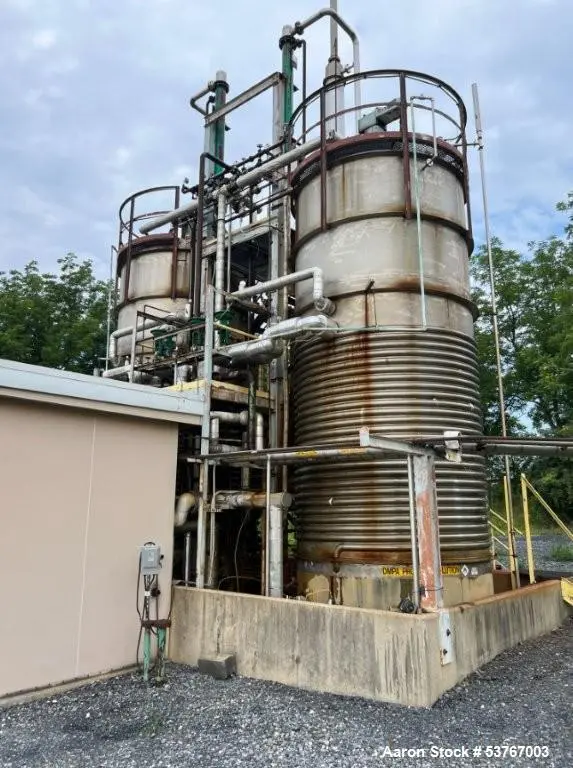

Used 9,000 Gallon 316 SS Vertical Agitated Reactor | Half-Pipe Jacket | Full Vacuum | Internal Coil | Industrial Alloy Fabricators

Used 9,000 Gallon 316 SS Vertical Agitated Reactor | Half-Pipe Jacket | Full Vacuum | Internal Coil | Industrial Alloy Fabricators. Approx. 108" D x approx. 259" straight side. 6" D bottom outlet. Flat top and bottom. 15 PSI internal pressure. 300 degrees F internal temp. 50 PSI jacket pressure. 300 degrees F jacket temp. Half pipe/limpet jacket type. Full vacuum internal. 304 stainless steel jacket. Has internal coil. Has (4) sidewall mounted, full-length straight baffles. Wide sweep impeller. Two-tier, (3) blade agitator. 2.5 HP, 37 RPM drive. 1.5HP, 1155 RPM motor. NB 2033. Mounted on skirt. Built 1992.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

Manufacturer: Industrial Alloy Fabricators

Type: Vertical Batch-Type Agitated Reactor

Capacity: Approx. 9,000 gallons

Year Built: 1992

National Board #: 2033

Mounting: Skirt-mounted

⚙️ Product Description

This Used Industrial Alloy Fabricators Vertical Agitated Reactor is a heavy-duty, large-capacity 9,000-gallon stainless steel reaction vessel, designed for demanding batch-processing operations in chemical, pharmaceutical, petrochemical, food, and specialty manufacturing.
Constructed from 316 stainless steel (product contact surface) with a 304 stainless steel half-pipe/limpet jacket, this reactor supports 15 PSI internal pressure, full vacuum, and temperatures up to 300°F internally and through the jacket.

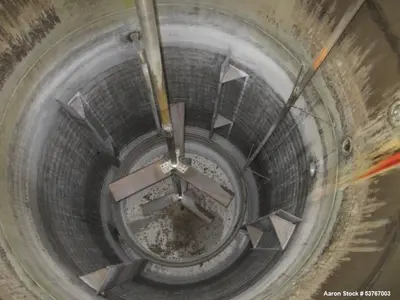

Equipped with an internal coil, four full-length baffles, a wide-sweep impeller, and a two-tier, three-blade agitator, this system ensures robust mixing, heat transfer, and blending performance for viscous, complex, or temperature-sensitive formulations.
The reactor bottom includes a 6" discharge, and the entire unit is supported on a skirt-mounted base for stability.
This vessel’s combination of capacity, agitation flexibility, and jacketed heating/cooling capability makes it suitable for a wide range of industrial applications.

📏 Specifications

Capacity: ~9,000 gallons

Material: 316 Stainless Steel (internal), 304 Stainless Steel (jacket)

Dimensions:

Diameter: ~108"

Straight Side Height: ~259"

Head Style: Flat top and flat bottom

Bottom Outlet: 6" diameter

Internal Pressure Rating: 15 PSI

Internal Temperature Rating: 300°F

Full Vacuum Internal: Yes

Jacket Type: Half-pipe / Limpet

Jacket Pressure Rating: 50 PSI

Jacket Temperature Rating: 300°F

Internal Coil: Yes

Agitation System:

Wide sweep impeller

Two-tier, 3-blade agitator

(4) Full-length straight baffles

Drive: 2.5 HP @ 37 RPM

Motor: 1.5 HP @ 1155 RPM

Mounting: Skirt

National Board #: 2033

Year Built: 1992

🧩 Applications

Chemical reaction & blending

Solvent-based batch processing

Polymer and resin production

Pharmaceutical batch formulation

Specialty chemical manufacturing

Petrochemical process blending

High-volume mixing operations

Heat transfer and thermal processing

Viscous product agitation

Industrial catalyst and slurry production

⚗️ What Might This Be Used For

This reactor is ideal for large-scale reaction, mixing, and thermal processing where temperature control, agitation, and corrosion resistance are critical.
Its half-pipe jacket + internal coil design enables efficient heating/cooling for exothermic reactions, thermal-sensitive blends, or high-viscosity mixing.

🧱 Products That Could Be Processed in This Reactor

Resins and polymers

Adhesives and coatings

Specialty chemicals

Pharmaceutical intermediates

Petrochemical blends

Industrial solvents and mixtures

Food-grade syrups or extracts

Fermentation or biological media

Slurries and suspensions

High-viscosity formulations
