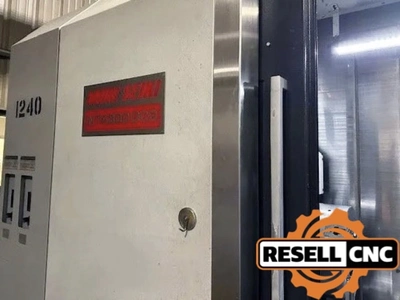

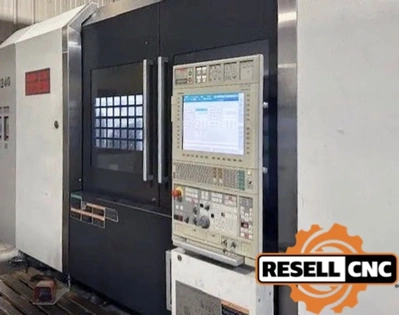

USED 2011 DMG Mori NT4300 DCG/1500SZ

X2nd Chuck Description: 3-Jaw Kitagawa Hydraulic Chuck
X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Control Options: Hob Function

Simultaneous 5-Axis Control

Workpiece Setting Error Compensation

Remote Communication Function

Tool Offset for 5-Axis Machining

Programmable Data Input

Diameter/Radius Dynamic Exchange

Tilted Working Plane Command

Nano Smoothing

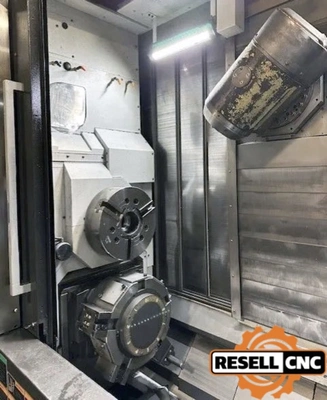

Additional Machine Specs: B-Axis Head Indexing: .0001 Degree

B-Axis Milling Spindle Speed: 12,000 RPM

B-Axis Milling Spindle Taper: CAT 40

B-Axis Milling Spindle Horse Power: 24.7 HP

Spindle Chuck Air Blow

In-Machine Tool Presetter

Chuck Footswitch

Bar Capacity: 3.5
B Axis: true
B Axis Travel: 0.0001 Degree

C Axis: true

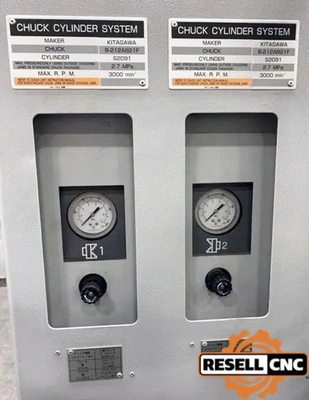

Chuck Description: 3-Jaw Kitagawa Hydraulic Chuck
Chuck Size: 12.0
Chuck Type: Hydraulic

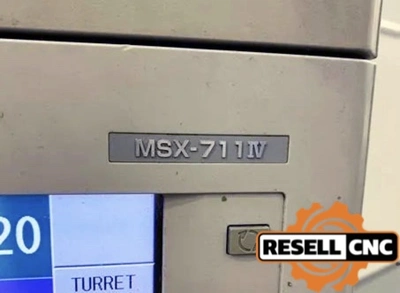

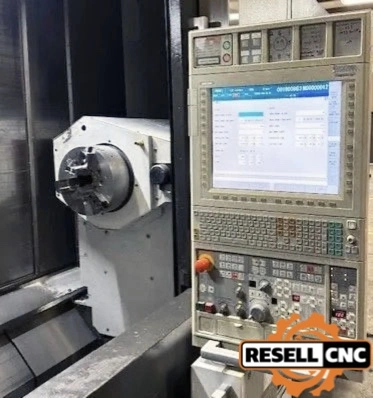

Control Make Model: Mori Seiki MSX-711 IV CNC Control
Control Options: Helical Interpolation, Rigid Tapping, Spindle Orientation, Ethernet / LAN

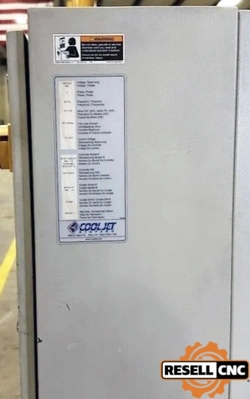

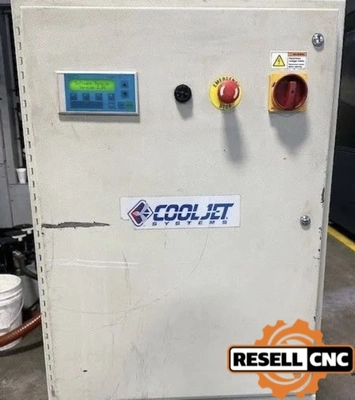

Coolant Type S: Thru-Spindle Coolant
Distance Between Centers: 73.3
Electrical: 220V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Presetter
Max Cutting Turning Diameter: 25.9
Max Swing Over Bed: 28.7
Max Turning Cutting Length: 58.9
Probe Make Model: Renishaw Probe System
Programmable Tailstock: false
Rapid Traverse: 1968/1181/1968
Second Bar Capacity: 3.5

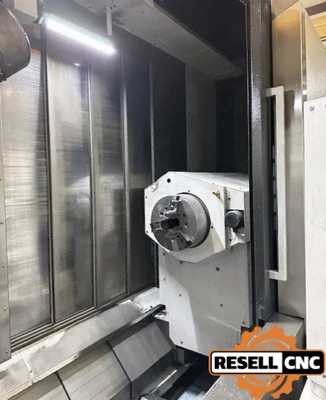

Second Chuck Size: 12.0
Second Spindle Bore: 4.13
Second Spindle Motor: 25
Second Spindle Nose: A2-8
Second Spindle Speed: 3000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 4.1
Spindle Motor: 25
Spindle Nose: C6
Spindle Speed: 2500.0
Sub Spindle: true
Tailstock: false
Tool Positions: 100.0
Turret Max Rpm: 12000
Turret Options: Turret Tool Positions: Lower Turret 10 Positions

Twin Turret: false
X Travel: 29.5
Y Axis: true
Z Travel: 61.0
