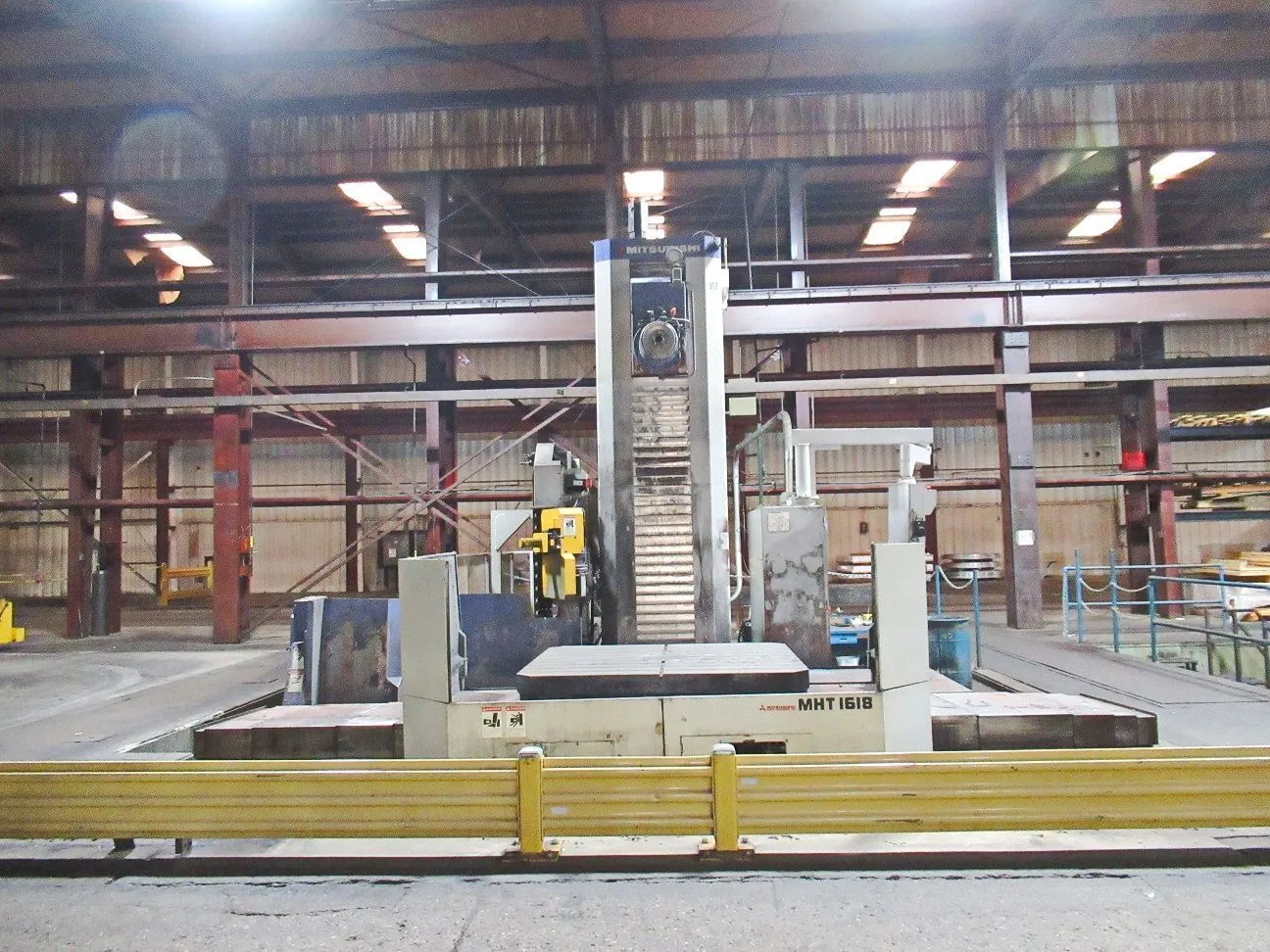

2008 Mitsubishi MHT1618 CNC Horizontal Boring Mill, B-Axis Rotary Table, TSC, Renishaw Probe, 80-Position ATC, Chip Conveyor, Hydraulic Power Unit, Spindle Head Cooling Unit
| Spindle Size | 5.1" | 129.54 mm |
| X-Axis | 118" | 2,997.2 mm |
| Y-Axis | 78.7" | 1,999 mm |
| Z-Axis | 51.2" | 1,300.5 mm |
| W-Axis | 19.7" | 500.38 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 70.8" | 1,798.3 mm |
| Taper | #50 | #50 |
| Max Table Load | 12,000 lb | 12,000 lb |
| ATC | 80 | 80 |
| Rapid Traverse (X/Y/Z/W) | 787 / 787 / 787 / 236 in/min. | 787 / 787 / 787 / 236 in/min. |
| Made In | Japan | Japan |
| Control | CNC (Fanuc 18i-MB) | CNC (Fanuc 18i-MB) |
| Weight | 72,000 lb | 72,000 lb |
Through spindle coolant
Renishaw probe
B-axis rotary table
80-position atc
Chip conveyor
MP scales for (x, y, z, b)
Spindle head cooling unit
Synchronous tapping
Full way covers
