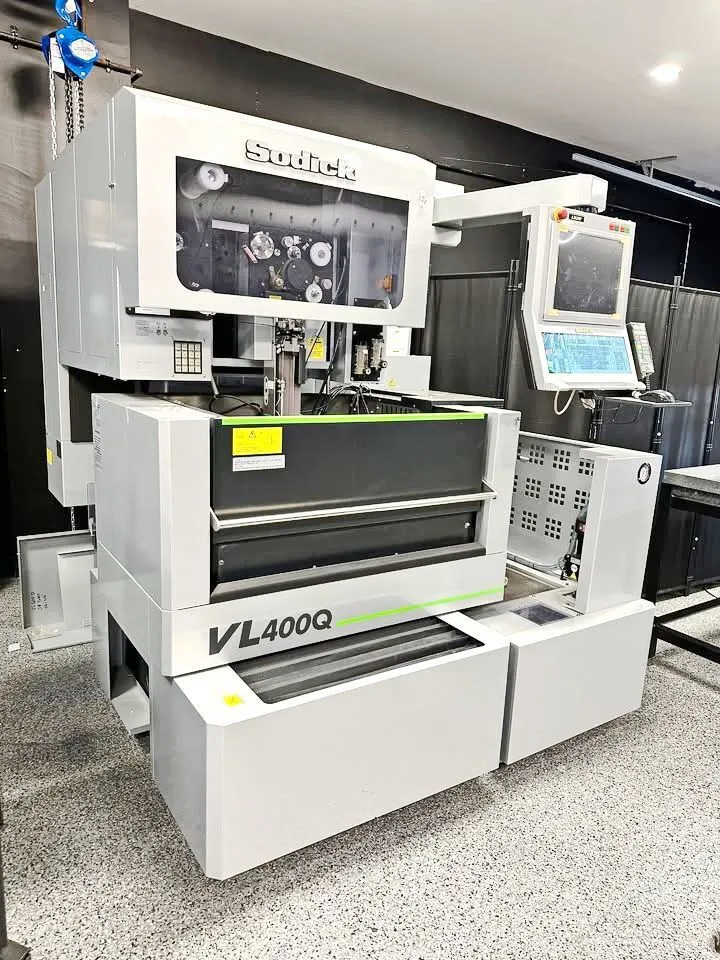

2021 Sodick VL400Q CNC Wire EDM, Submerged Cutting System, Automatic Wire Threading, Dual-Cartridge Dielectric Filtration, Thermal Stabilization Chiller, Wire Collection Unit, Stainless Tank Interior
| Power Pack | 32 A | 32 A |
| X-Axis Travel | 15.74" | 399.8 mm |
| Y-Axis Travel | 11.81" | 299.97 mm |
| Z-Axis Travel | 8.66" | 219.96 mm |
| U x V Axis Travel | 3.15" X 3.15" | 3.15" X 3.15" |
| Max Workpiece Size | 32.67" X 24" X 7.87" | 32.67" X 24" X 7.87" |
| Max Workpiece Weight | 771 lb | 349.7 kg |
| Work Tank Size | 33.85" X 27.16" | 33.85" X 27.16" |
| Wire Diameter | 0.00393" - 0.01181" | 0.00393" - 0.01181" |
| Max Wire Speed | 990 in/min. | 25.1 m/min. |
| Wire Tension | 0.7 - 5.2 lbf | 0.7 - 5.2 lbf |
| Distance Floor to Table | 35.43" | 899.92 mm |
| Dielectric Tank Size (Ext) | 86.61" X 70.87" X 29.72" | 86.61" X 70.87" X 29.72" |
| Dielectric Tank Capacity | 156 gal | 156 gal |
| Submerged (Yes/No) | Yes | Yes |
| Taper Angle | ±15° (4.72" Thickness) | ±15° (4.72" Thickness) |
| Auto Threading (Yes/No) | Yes | Yes |
| Made In | Japan | Japan |
| Control | CNC (Sodick LN2W) | CNC (Sodick LN2W) |
| Dimensions | 90.94" X 79.52" X 78.34" | 90.94" X 79.52" X 78.34" |
| Weight | 5,952 lb | 5,952 lb |
Submerged cutting system
Automatic wire threading
Dual-cartridge dielectric filtration
Thermal stabilization chiller
Jog pendant
Wire collection unit
Stainless tank interior
Linear motor drive system
Wire alignment blocks
Guide removal tool
Set Tool for guide
Guide alignment tool
Adjustment tool for carbide contact
