USED 1980 Okamoto ACCUGAR 124N, 1980, 3X AUTO FEEDS, AUTO IDF
Overview
Description

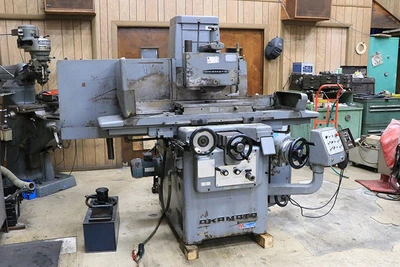

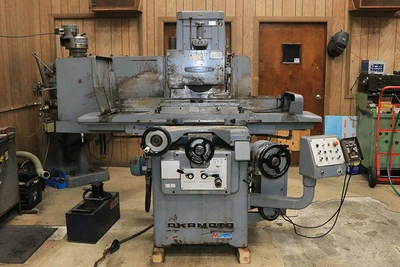

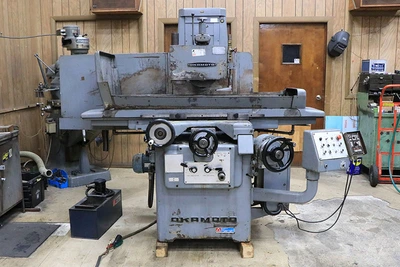

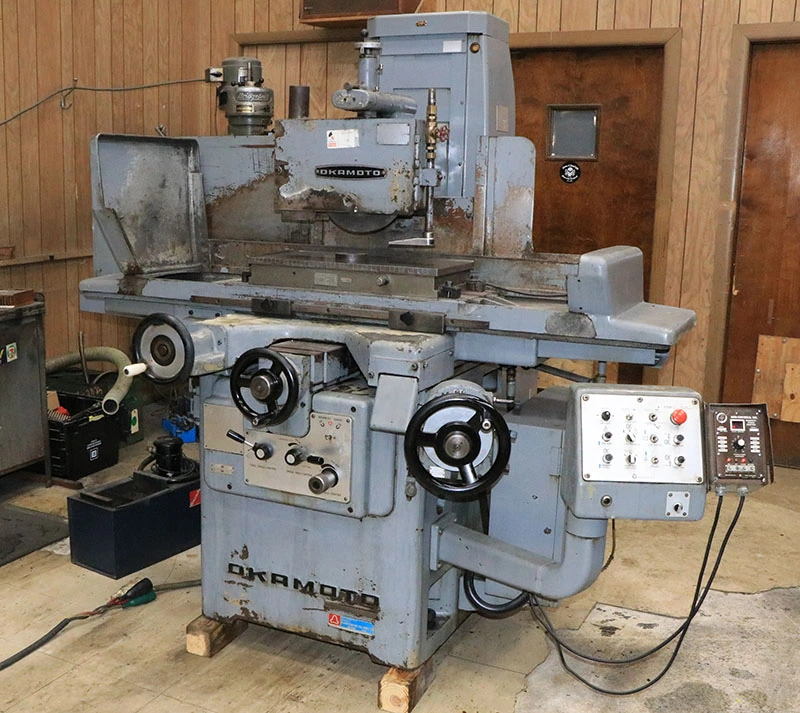

12" Width 24" Length Okamoto ACCUGAR 124N, 1980, 3X AUTO FEEDS, AUTO IDF SURFACE GRINDER, EMC, COOLANT, OTW DRESSER
Specifications
12" X 24" OKAMOTO HIGH-PRECISION
SURFACE GRINDER WITH AUTO INCREMENTAL DOWNFEED
MODEL: ACCUGAR 124-N S/N: 6147 NEW: 1980
MAXIMUM GRINDING LENGTH ............ 24"
MAXIMUM GRINDING WIDTH ............... 12"
MAXIMUM HEIGHT UNDER 14" WHEEL ....... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ........ 29.5"
MAXIMUM CROSS MOVEMENT ............... 13.6"
FEEDS:
LONGITUDINAL HYDRAULIC FEED .......... 1' TO 100' FPM
CROSS FEED:
HYDRAULIC INTERMITTENT ............... 0.02" -.8"
HYDRAULIC CONTINUOUS ................. 0.4" 40" IPM
HAND FEED/REVOLUTION ................. 0.25"
GRADUATION OF WHEEL .................. 0.001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE ............ 0.0001" - 0.00015"
AUTO FEED/SADDLE REVERSAL ........ 0.0001" - 0.00015"
HAND FEED/REVOLUTION ................. 0.05"
GRADUATION OF HANDWHEEL .............. 0.0001"
RAPID FEEDRATE ....................... 19" IPM

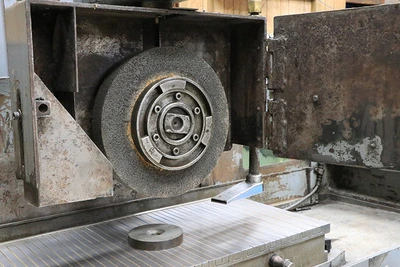

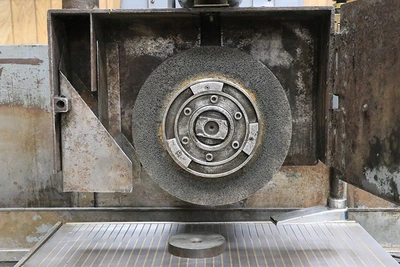

GRINDING WHEEL ................... 12" x 1- 1/2" x 5"
MOTORS:
SPINDLE MOTOR ........................ 5 HP
HYDRAULIC PUMP MOTOR ................. 3 HP
VERTICAL RAPID FEED MOTOR ............ 0.5 HP
DIMENSIONS ....................... 74"FB x 103"RL x 74"H
APPROX. MACHINE WEIGHT ............... 5,000 LBS.
EQUIPPED WITH:
HYDRAULIC TABLE TRAVERSE
AUTO CROSSFEED
AUTO INCREMENTAL DOWNFEED
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION

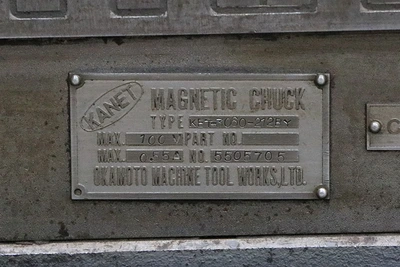

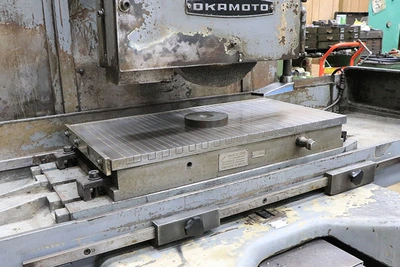

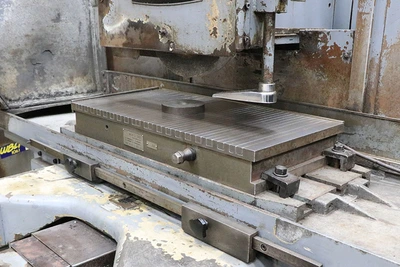

12" x 24" "KANETEC" "KET-3060-212BY" ELECTRO-MAGNETIC CHUCK
"SEMI-CONTROLS, INC." "NEUTROFIER" CONTROL,
WITH VARIABLE HOLDING FEATURE
"GRAYMILLES" COOLANT SYSTEM
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY GOOD CONDITION & APPEARANCE - RUNS VERY WELL **
FOR MORE INFORMATION: Call Andy at 973-497-7600
