USED 2012 Okamoto LINEAR 612B, 2012, ROLLER BEARING TABLE,

6" Width 12" Length Okamoto LINEAR 612B, 2012, ROLLER BEARING TABLE, SURFACE GRINDER, O.S. WALKER FD PMC

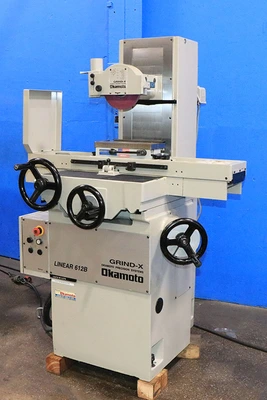

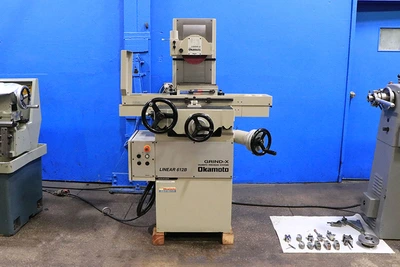

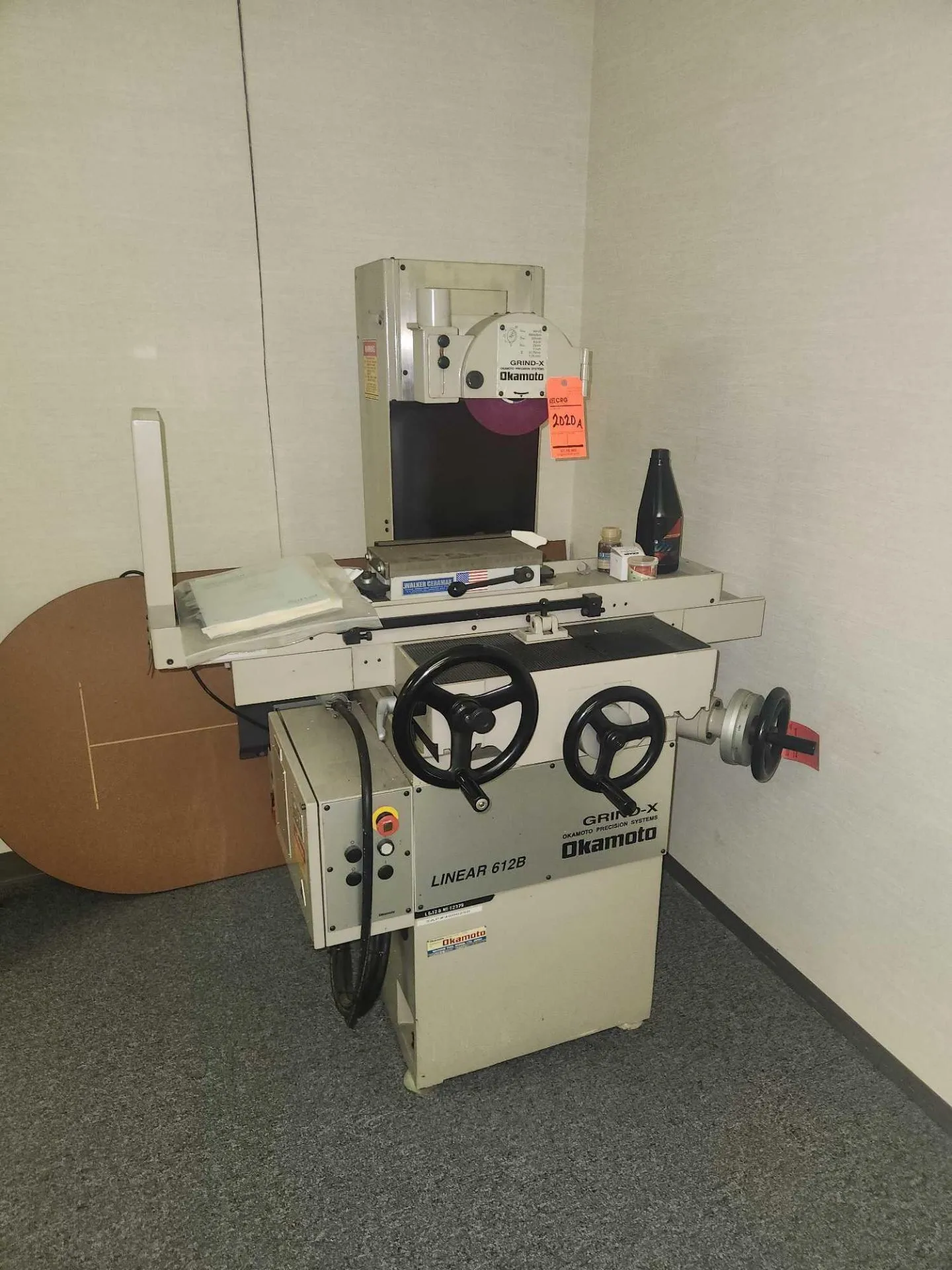

         6" X 12 OKAMOTO "HIGH-PRECISION"

HANDFEED SURFACE GRINDER WITH ROLLER BEARING TABLE

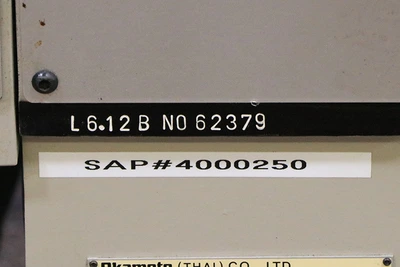

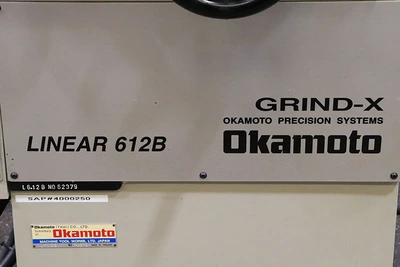

MODEL: L-612B      S/N: 62379       NEW: 2012

NOMINAL GRINDING CAPACITY ................. 6" x 18"

TABLE TO UNDERSIDE OF 8" GRINDING WHEEL ... 14.27"

MAX. LONGITUNAL TABLE TRAVEL .............. 14.27"

MAX. CROSS TRAVEL ......................... 8.27"

MOVEMENT PER HANDWHEEL REVOLUTION:

 TABLE .................................... 5.12"

 SADDLE ................................... 0.1""

SADDLE .................................... 0.05"

HANDWHEEL GRADUATION....................... 0.0001"

SPINDLE MOTOR ....................... 2 H.P.

GRINDING WHEEL SPEED ................ 3450 RPM

WHEEL SIZE ..................... 8" x 1/2" x 1- 1/4"

APPROX. DIMS. FOR OPERATION .... 64" x 55.3"D x 68"H

APPROX. MACHINE WEIGHT .............. 1,850 LBS.

MACHINE FEATURES:

MEEHANITE CAST IRON, HEAVY DUTY CONSTRUCTION

SMOOTH TABLE MOVEMENT THROUGH RELIABLE BELT DRIVE

TABLE GLIDES ON LINEAR BALL BEARINGS

RECIRCULATING LUBRICATION SYSTEM

2 H.P. DIRECT DRIVE SPINDLE, 3/60/230-460 VOLTS

EQUIPPED WITH:

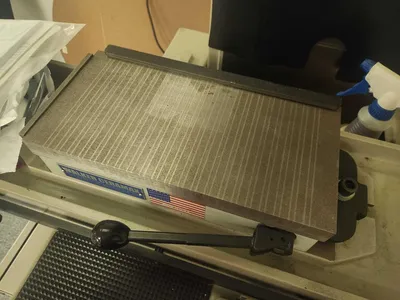

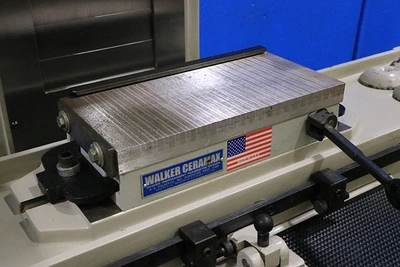

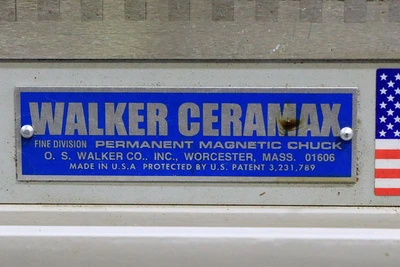

6" X 12" WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK

SET UP FOR DRY GRINDING WITH INLET ON SIDE OF WHEEL COVER

AUTOMATIC RECIRCULATING LUBRICATION SYSTEM

MACHINE IS WIRED FOR 440 VOLTS

Link to Quote: https://youtu.be/77dmWXkGPAE?si=xLumIuYTFK13Wxuo

** ORIGINAL & BEATIFUL - LIKE NEW CONDITION & APPEARANCE **

     ** INSPECT UNDER POWER IN HARRISON, NJ **

FOR MORE INFORMATION: Call Andy at 973-497-7600
