USED 1993 Chevalier FSG-3A1020, 1993, AUTO IDF, 3X AUTO FEED, 2X DRO,
Overview
Description

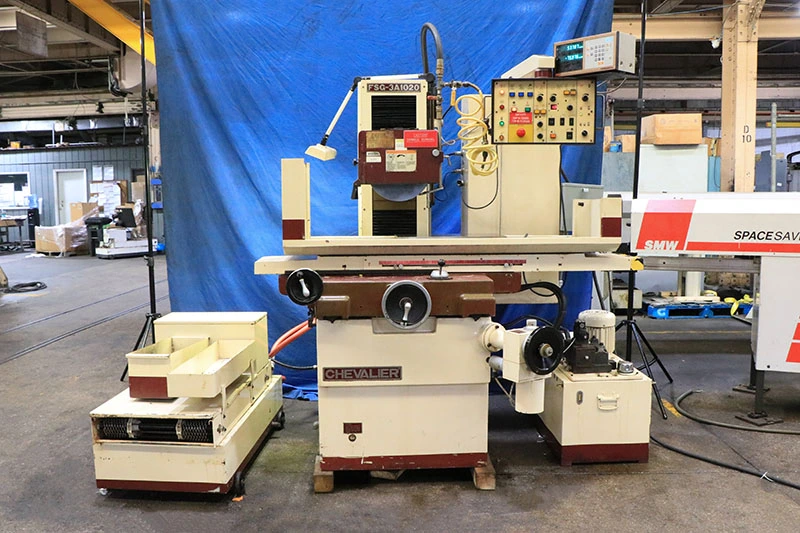

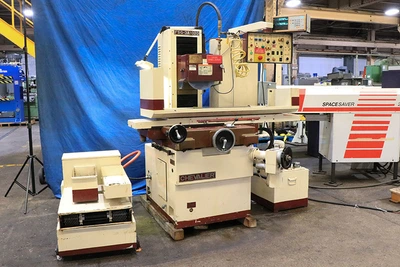

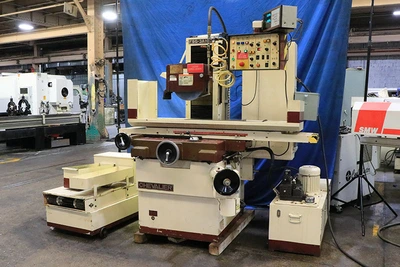

10" Width 20" Length Chevalier FSG-3A1020, 1993, AUTO IDF, 3X AUTO FEED, 2X DRO, SURFACE GRINDER, COOLANT, 12" WHEEL
Specifications
10" X 20" CHEVALIER PRECISION SURFACE GRINDER,
PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED,
W
** A TRUE 10" x 20" SIZE MACHINE, WITH A
12" GRINDING WHEEL, AND A 10" x 20" CHUCK! **
MODEL: FSG-3A1020 S/N: N3823003 NEW: 1993
NOMINAL GRINDING CAPACITY ................... 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 22- 7/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 24- 3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............ 11- 7/16"
MAX. CROSSFEED TRAVEL, MANUAL ............... 11- 3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 21- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC .......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ............ 0.02" TO 0.4"
POWER RAPID TRAVERSE (CROSS) ................ 48" IPM

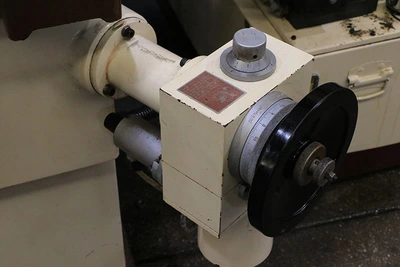

CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.001"
PER REVOLUTION .............................. 0.02"
AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION .............................. 0.1"
MICROFEED ................................... 0.0001"
RAPID TRAVERSE RATE ......................... 13" IPM
SPINDLE MOTOR ............................... 3 HP
STANDARD GRINDING WHEEL ......... 12" DIA. x 1- 1/4" x 3"B
APPROX. WEIGHT .......................... 3,306 LBS.
APPROX. DIMENSIONS ...................... 85" X 48" X 65"H
MACHINE FEATURES:

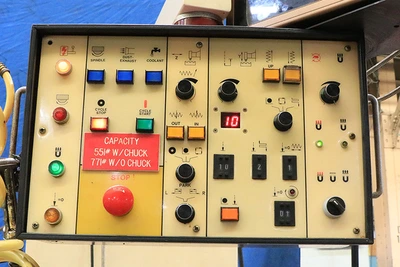

FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE
CONTROL W/DIGITAL DISPLAY
AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
SPARKOUT CYCLE W/AUTOMATIC WHEELHEAD RETRACTION
@ COMPLETION OF GRIND CYCLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
ELECTRONIC CROSS & VERTICAL FEEDS
MICRO-DOWNFEED (.0001" GRAD.)
12" GRINDING WHEEL
EQUIPPED WITH:

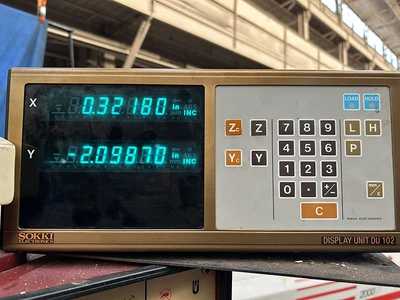

"SOKKI" HIGH ACCURACY "MADE IN JAPAN"
2-AXIS DIGITAL READOUT DISPLAY.
DISPLAY READS TO 0.00005" RESOLUTION.

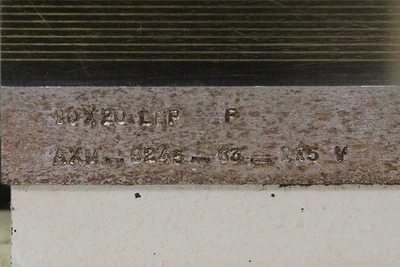

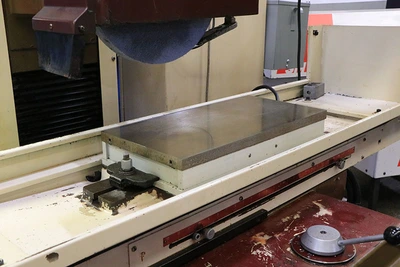

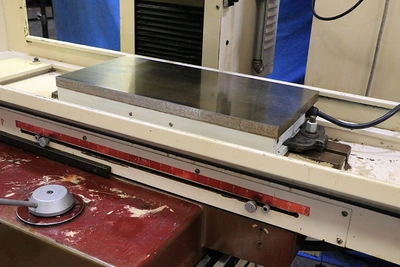

10" X 20" O.S. WALKER "LBP" FINE-DIVISION
ELECTRO-MAGNETIC CHUCK, WITH VARIABLE HOLD
NEUTROFIER CONTROL ON THE MACHINE CONTROL CONSOLE
COOLANT SYSTEM w/PAPER FILTRATION
WORK LIGHT

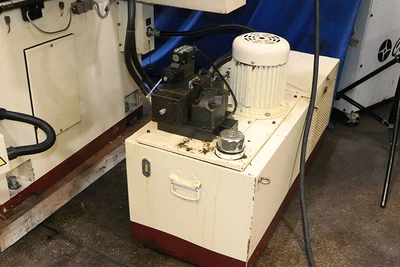

EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
12" GRINDING WHEEL

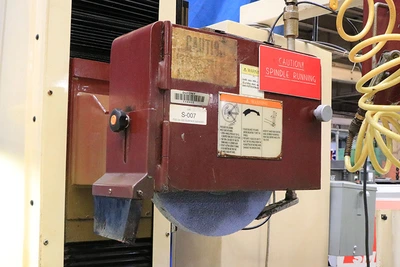

3 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS WIRED FOR 3/60/460 VOLTS
LINK TO VIDEO: https://youtu.be/zwlWd9cAbbc?si=X-tYeQaqdCZH1aS6
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT - "NEAR NEW" CONDITION & APPEARANCE **
** FROM A R & D SHOP, OF A FORTUNE 500 COMPANY **
FOR MORE INFORMATION: Call Andy at 973-497-7600
