USED 2015 Hardinge Conquest H51MSY New 2015
Overview
Description

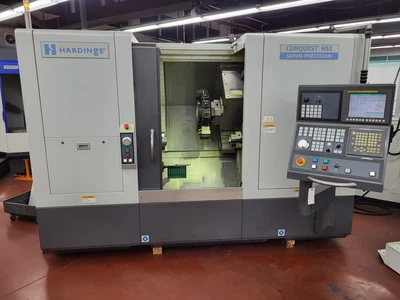

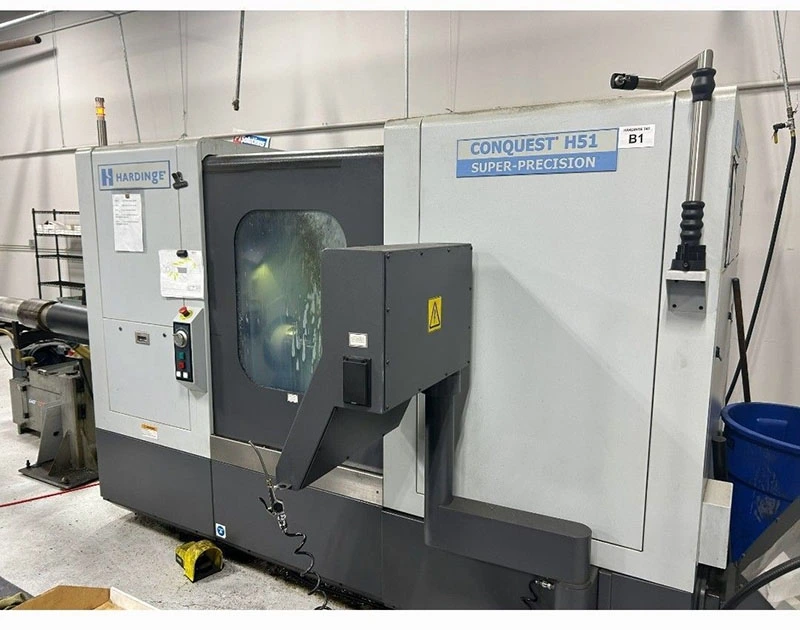

Hardinge Conquest H51MSY New 2015 CNC LATHE, Fanuc 0i-TD
Specifications

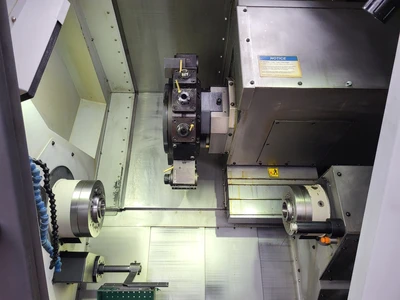

HARDINGE CONQUEST H51MSY CNC TURNING/MILING CENTER
NEW: 2015
Video links:
https://youtu.be/mGEiliFp30c
https://youtu.be/j9i4uZer9lg
https://youtube.com/shorts/8Susv1CKR0o
https://youtube.com/shorts/P6sT9kQv9pE
Specifications (subject to buyer verification):
Maximum Swing over Way Covers 27.87″ (708mm)
Work Capacities
Maximum Bar Capacity 2″ (51mm)
Maximum Machining Diameter (BMT-55) 12.34″ (313.7mm)

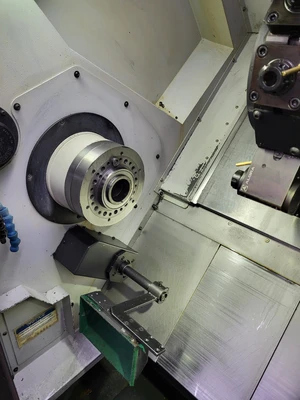

Spindle
Maximum Speed SP: 4,700rpm
Maximum Power Rating (30 mins) 20-hp (15 kW)
Spindle Nose A2-6 / 20 C
Spindle Orient 1.0 degree
Collet/Chuck Actuator Type Hydraulic
Travels and Feedrates
Maximum X-Axis Travel 7.75″ (196mm)
Maximum Z-Axis Travel 28.15″ (715mm)
Maximum Y-Axis Travel +2.56 to -1.0” (65mm to -25.4mm)
Continuous Z-Axis Thrust 1,691 lbs. (7,540N)
X-Axis Rapid Traverse Rates 1,100-ipm (28m/min)
Z-Axis Rapid Traverse Rates 1,500-ipm (38m/min)
Y-Axis Rapid Traverse Rates 236-ipm (6.0m/min)

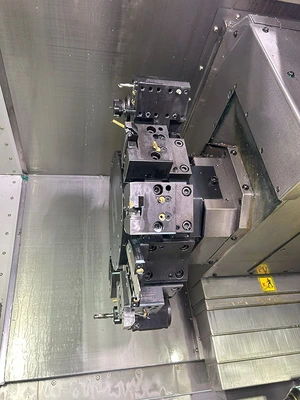

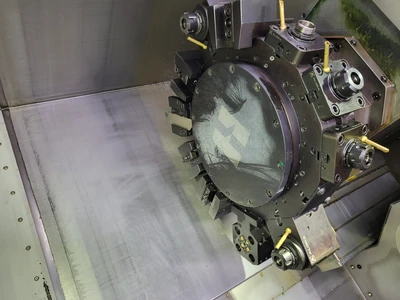

BMT-55 Live Tooling Top Plate
BMT-55 bi-directional 12-station + ½ station index
Square Shank 1″ (25mm)
Round Shank Tooling 1.50″ (38mm)
Index Time (rotation/including clamp-unclamp) 0.40/1.45 Seconds
Tool Shank Diameter w/ER 25 Collets .04 – .625″ (1mm – 16mm)
Live Tooling Power Rating (30 Min Rating) 7.5HP (5.5 kW)
Live Tooling Torque Rating (30 Min Rating) 24.3 ft-lb (34 Nm)
Live Tooling Max Speed 8,000-rpm

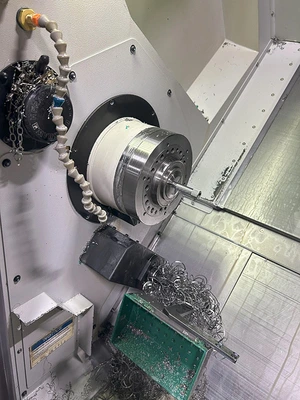

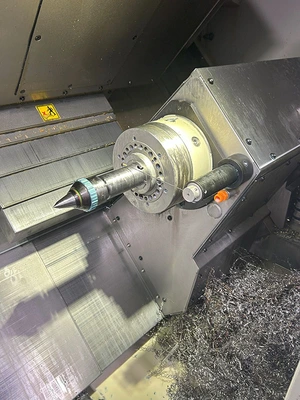

Sub Spindle
Maximum Speed 6,000-rpm
Maximum Power Rating (30 min) 10-hp (7.5 kW)
Spindle Nose A2-5/16C
Chuck Size (Chuck Not Included) 6″ (150mm)
Spindle Bore (not bar capacity) 1.89″ (48mm)
Spindle Orient (optional) 1.0 degree
Collet/Chuck Actuator Type Pneumatic
Maximum Travel 28.275″ (718mm)
Miscellaneous
Machine Length 120″ (3048mm)
Machine Depth 103″ (2616mm)
Machine Height 84.7″ (2151mm)
Approx. Machine Weight 13,500 lb. (6123kg)
Equipped With:

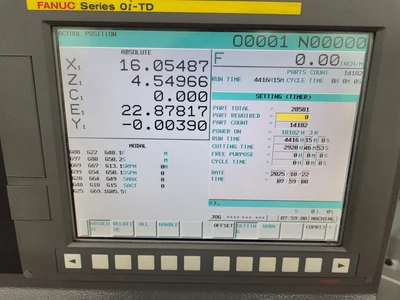

Fanuc Oi-TD Control
Y-Axis
C-Axis on Both Main and Sub Spindles
Parts Catcher Main Spindle
Tool Setter (Manual Plug-in)
Chip Conveyor
All Available Tooling
FOR MORE INFORMATION: Call Mike at 973-497-7540
