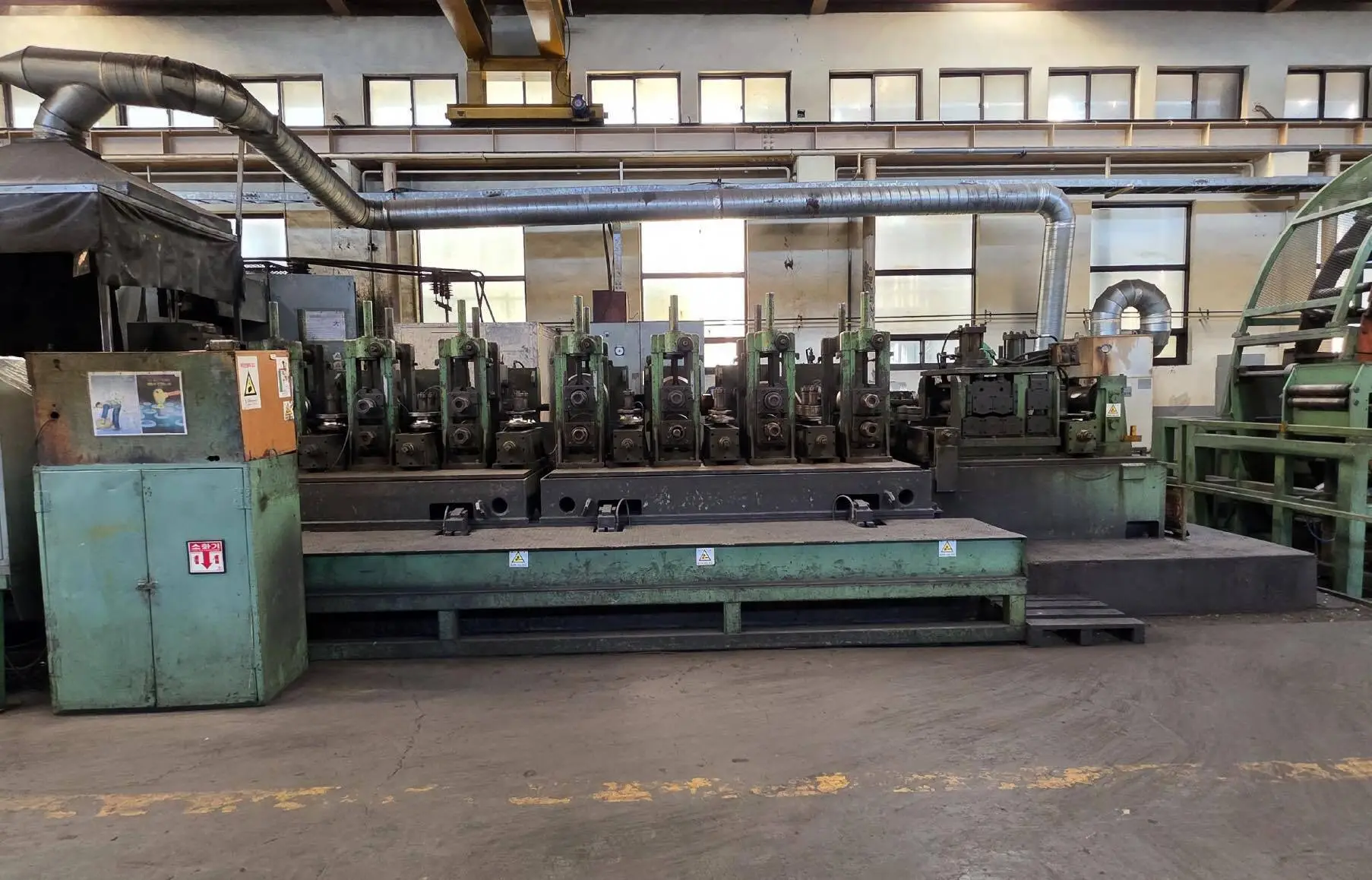

USED Dowon Engineering 127mm x 4mm Dowon HF Tube Mill

Make: Dowon Engineering (Korea)
Diameter: 60mm x 127mm
Wall Thickness: 1.5mm - 4.5mm
Speed: 70 meters per minute
Direction: R - L
Year New: 2001
Power: 380V x 60Hz / 220V x 60Hz
Material: HR, CR, GI, HGI,
Coil Width: 140mm - 400mm
Coil ID: 508mm
Coil ODL 2000mm
Coil Weight: 10,000Lbs

Mandrel Uncoiler
Hydraulic Expansion
Pneumatic Brake
Hydraulic Feed Up Drive

Shear & End Welder
Hydraulic Down Cut Design
TIG Welder: 75W Capacity

Vertical Accumulator
Storage Cap: 350 meters
Pinch Rolls Motor: 2.2Kw
Drum Main Drive: 15Kw AC
Exit Pinch Rolls Motor: 2.2Kw

Coil Straightener
Seven (7) Work Rolls
Manual Upper Rolls Adjustment

Forming Mill
Shaft Diameter: 90mm
Roll Space: 450mm
Manual Shaft Adjustment
Number of Forming Stands: 4
Number of Fin Passes: 2
Number of Side Stands: 4
Universal Joint Drive
Set of Rafted Forming Stands
Drive: 90Kw 1700 RPM

Welding Section
350Kw HF Welder Vacuum Tube Type
Make: Bo Sung HF (Korea)
Zinc Spray Gun
Make: Metro
Wire: 1.2mm
Shower & Bath Type Cooling Section

Sizing Mill
Number of Sizing Rolls: 4
Number of Sizing Side Rolls: 3
Measuring Stand
Adjustable Turk Head
Pull Out Stand
Roll Space: 180mm
Universal Joint Drive
Set of Rafted Sizing Stands
Motor: 90Kw /1700 RPM

Cut - Off Section
Type: Flying Friction Saw
Speed: 70 meters per minute
Saw: 810mm x 6mm
Cut - Off Motor: 37Kw
Length: 5m - 9m
Traveling Motor: 22Kw x 1150 RPM

Powered Run Out Table
Length: 15 Meters
Motor: 3.7Kw

End Facing & Chamfering Machine with Auto Feeding

Electrics, Hydraulic, Controls, Lots of Tooling for Round & Profile
