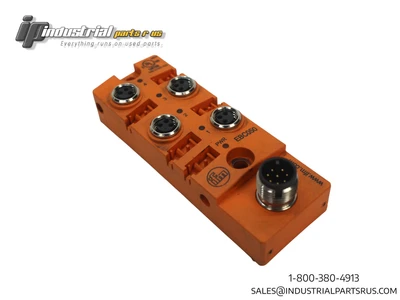

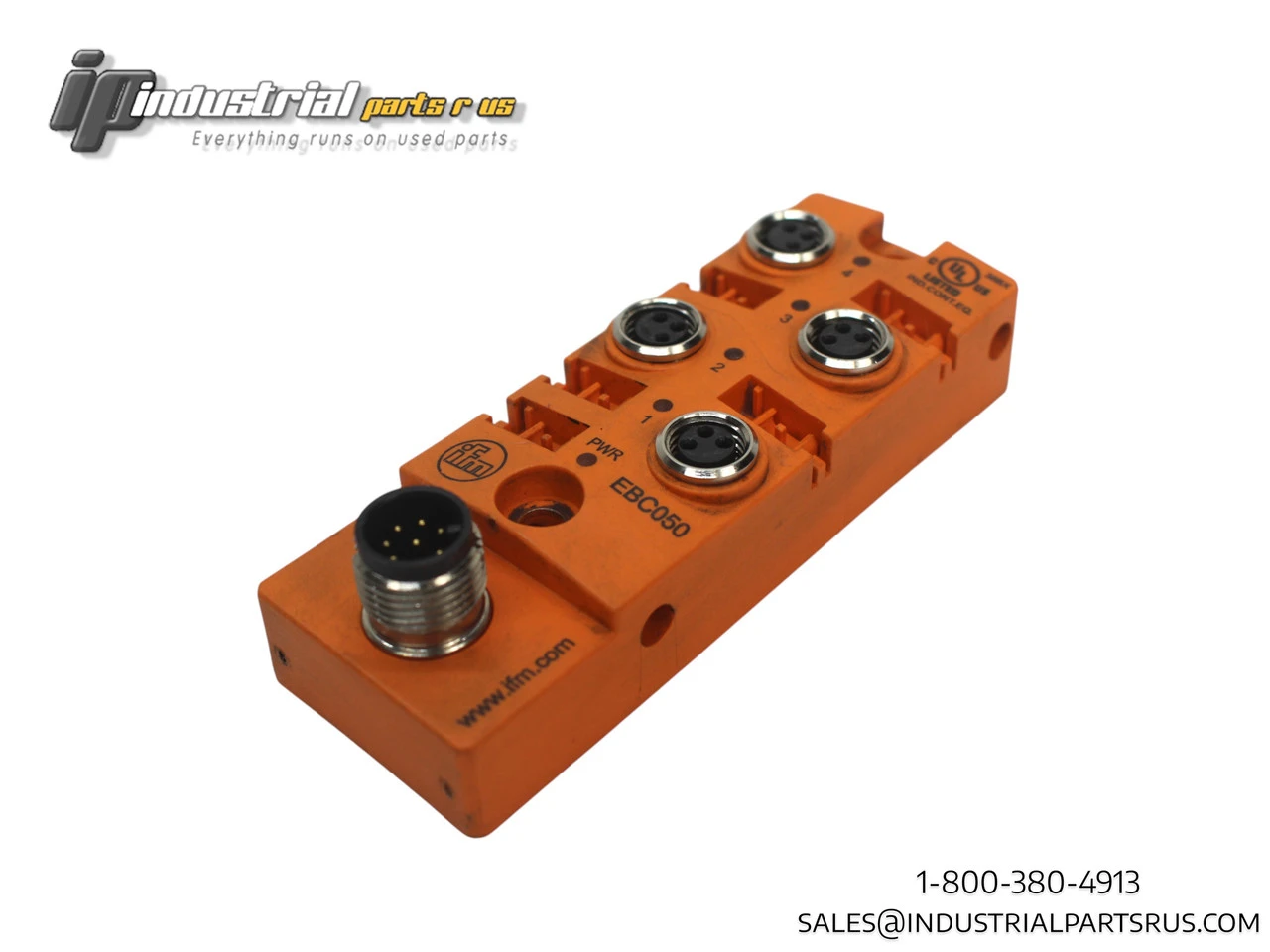

IFM Efector EBC050 Splitter Box 4-Port M8 Junction Block PNP 10-30VDC
Overview
Description
The IFM Efector EBC050 is a compact splitter box junction block designed for industrial sensor connectivity applications where space is restricted. This unit features 4 M8 ports with PNP electrical design, providing reliable signal distribution for DC sensors in harsh industrial environments. The device includes visual LED indicators for switching status monitoring and operation feedback.
Specification
Value
Brand
IFM Efector
Model/Part Number
EBC050
Product Type
Splitter Box
Operating Voltage
10-30 VDC
Max Current Load Per Port
2 Amp
Max Current Load Total
2 Amp
Number of Ports
4
Sensor Connection
M8
Main Connector
M12
Output Type
PNP
Housing Material
PBT
Contact Material
Gold-Plated
Protection Rating
IP67/68
Operating Temperature
-25 to +80°C
Protection Class
III
Color
Orange
Features
5 LEDs, Dust Tight, Waterproof
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: IP15919
UPC: 721814243642
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
Shelf: K-4
MPN: EBC050
GTIN: 721814243642
Model: EBC050
Type: Splitter Box
