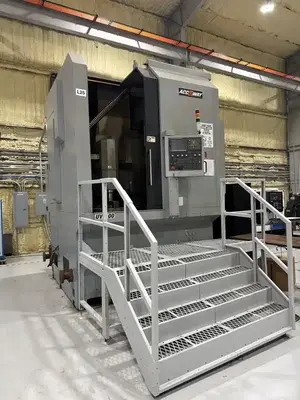

ACCUWAY UV-100 VTL with Milling – 2013
Overview
Description
ACCUWAY UV100 VTL with Milling
Specifications
CHUCK / TABLE DIA 40″
SWING 43.3″
MAXIMUM CUTTING DIAMETER 39.3 in
MAXIMUM TURNING LENGTH 27.5 in
VERTICAL TRAVEL X 30.1 in
HORIZONTAL TRAVEL Z 31.3 in
RPM 1,200 RPM
POWER 37 kW
CONTROL CNC (Fanuc Oi-TD Control)
DIMENSIONS 138″ x 94″ x 160″
WEIGHT 37500
Swing Over Bed: 43.30″
Max Turning Diameter: 39.37″
Max Turning Length: 27.55″
Spindle Speed: 1200 RPM
Spindle Taper: BT50
Spindle Nose: A2-15
Chuck Diameter: 40″
X Axis: 30.11″
Z Axis: 31.49″
Turret: 12 Stations
Machine Weight: 37,500 LBS
Equipped With
Fanuc Oi-TD Control
Auto Strong V-240 40″ (3) Jaw Chuck
Live Tool
12 Position ATC
Stainless Steel Way Covers
RJ-45 interface
Heat exchanger for electric cabinet
10.4″ Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
hydraulic chuck & cylinder
Single chain type chip conveyor + chip cart
Tool kit
Under 1000 Hours
