USED 2023 INGERSOLL RAND NVC700A400
Overview
Description

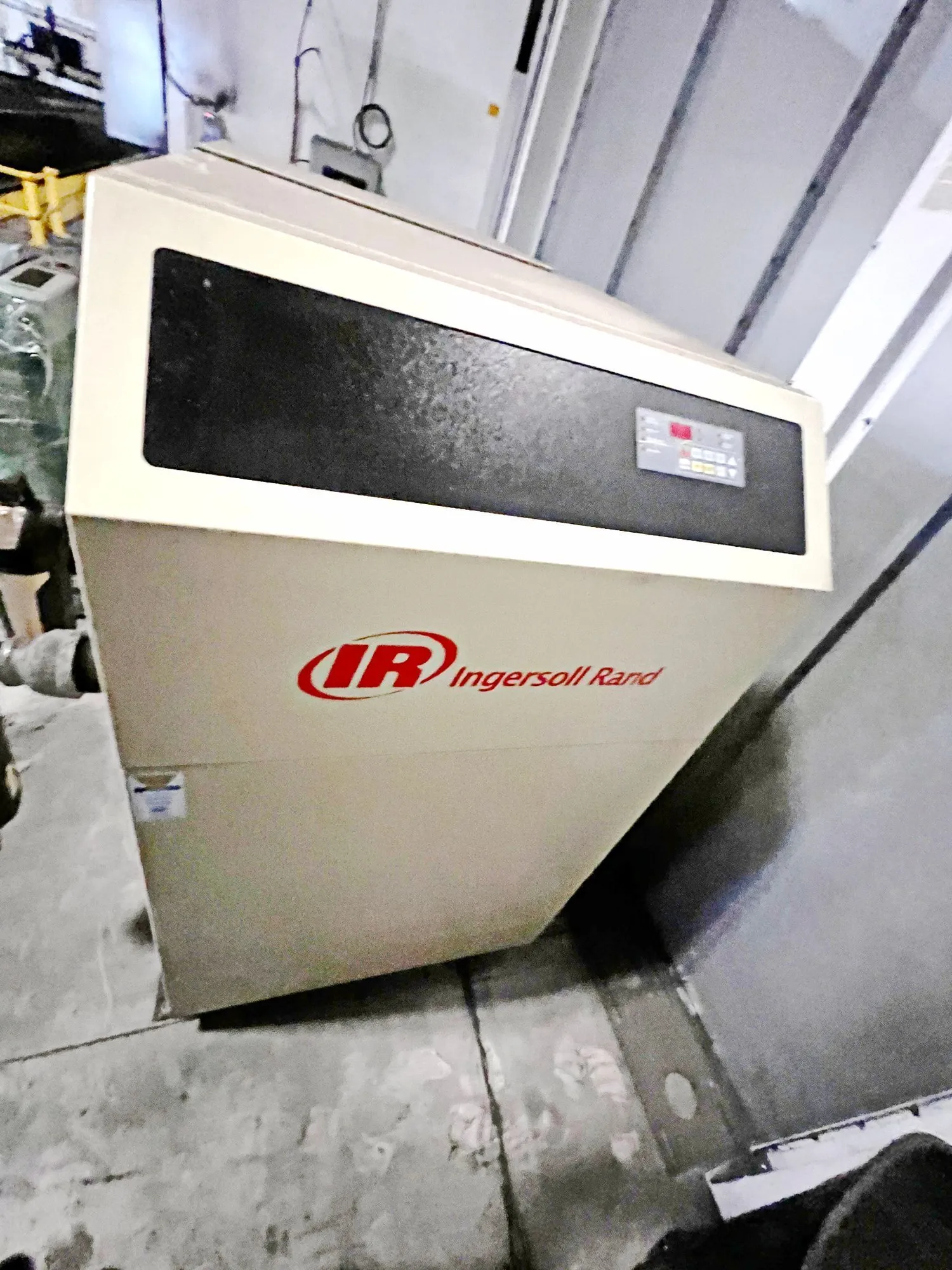

2023 Ingersoll Rand Nirvana NVC700A400 Cycling Refrigerated Air Dryer, 700 SCFM, Microprocessor LED Controller, High-Efficiency Centrifugal Separator, Digital Temperature Display, Thermal Mass Refrigeration System
Specifications
| Flow Rate | 700 ft³/min. | 700 ft³/min. |
|---|---|---|
| Max Working Pressure | 230 PSIG | 15.9 bar |
| Pressure Dew Point | 38°F | 3.3°C |
| Pressure Drop | 2.7 PSIG | 0.2 bar |
| Refrigerant | R404A | R404A |
| Refrigeration Type | Cycling (thermal mass) | Cycling (thermal mass) |
| Refrigerant Charge | 6 lb | 6 lb |
| Separator Type: | High-Efficiency Centrifugal | High-Efficiency Centrifugal |
| Compressor Motor | 4.5 hp | 3.4 kW |
| Fan Motors | 0.2 hp | 0.2 kW |
| Air Connections | 3" NPT | 3" NPT |
| Made In | United States | United States |
| Dimensions | 42" X 40" X 62" | 42" X 40" X 62" |
| Weight | 1,320 lb | 1,320 lb |
Equipped With
Filter (FA1200IH)
Microprocessor LED controller
Energy-saving cycling design
Stainless-steel heat exchangers
High-efficiency centrifugal separator
Automatic drain
Digital temperature display
Thermal mass refrigeration system
Automatic restart after power loss
Adjustable chiller temperature set point
