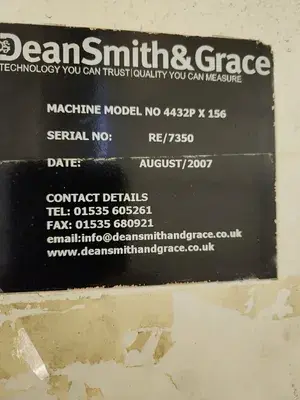

USED 2007 DEAN SMITH & GRACE 4432P X 156
Overview
Description
2007 Dean, Smith and Grace CNC Hollow Spindle Lathe with 14" Spindle Hole
Founded by Joseph Dean in 1865, the company Dean, Smith & Grace was formally established in 1873 in Keighley, Yorkshire, and quickly built a reputation for producing durable and precise machine tools, often referred to as the "Rolls-Royce" of lathes.
Dean, Smith & Grace (DSG) has a long heritage as a high-quality English lathe manufacturer, founded in 1865. The 4432P X 156 model is a heavy-duty, hollow spindle CNC lathe, primarily used in industries such as oil & gas and aerospace for machining large, long cylindrical parts.
Specifications
| Swing | 44" | 1,117.6 mm |
|---|---|---|
| Centers | 156" | 3,962.4 mm |
| Spindle Bore | 14" | 355.6 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Control | CNC (Heidenhain 4110) | CNC (Heidenhain 4110) |
| Dimensions | 30' L x 7' W x 6' H (shipping) | 30' L x 7' W x 6' H (shipping) |
Swing 44"
Machining Length 156"
# Axis 2
Chuck Size 31"
Bar Capacity 14"
Maximum Swing over Cross Slide 32"
Power 50 hp
Max RPM 1,500 RPM
Turning Dia 32"
Tailstock Yes
Control CNC (Heidenhain 4110 Manual Plus)
Equipped With

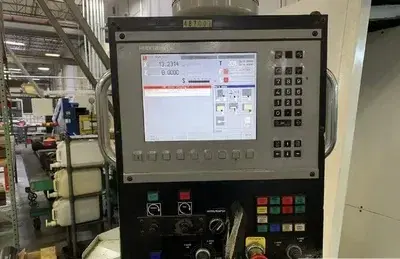

Heidenhain 4110 Manual Plus CNC Control

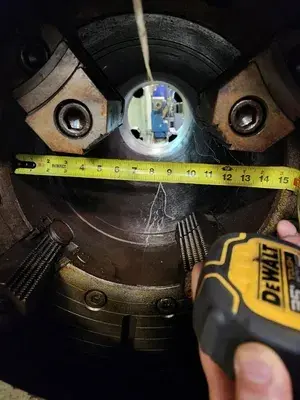

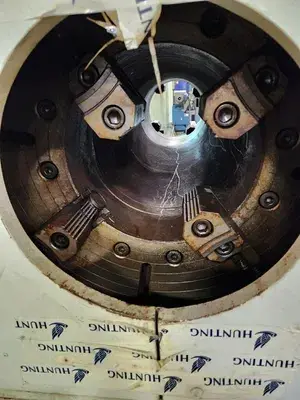

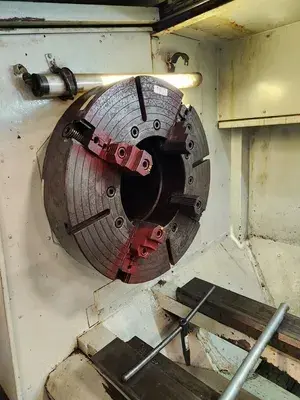

31" Front & Rear Chucks w/ 15" Holes

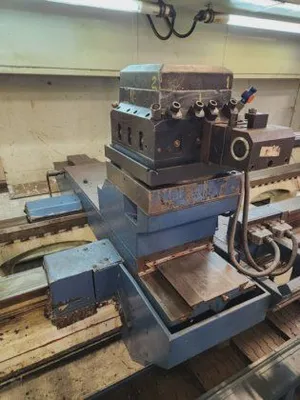

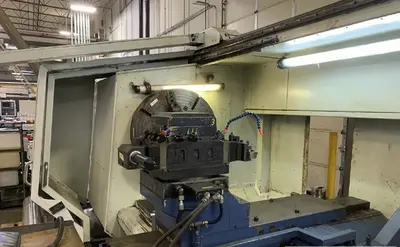

Hydraulic Automatic 4 Position Souter Turret Toolpost
Speed Range 12-1500rpm inf. variable.
Motor 34kw / 50hp

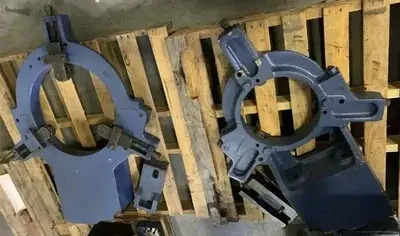

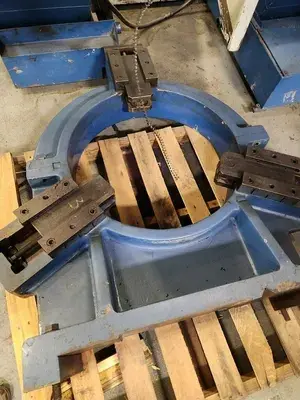

(3) Steady Rest
Tailstock

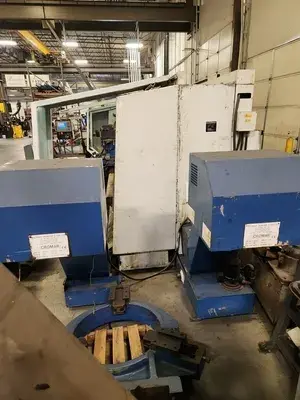

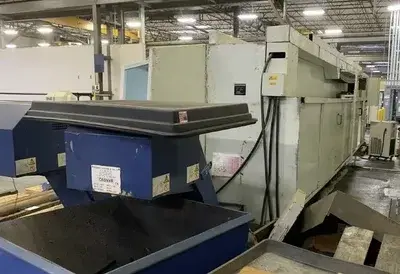

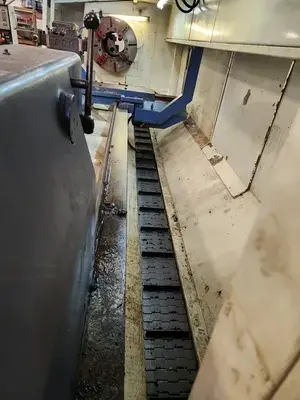

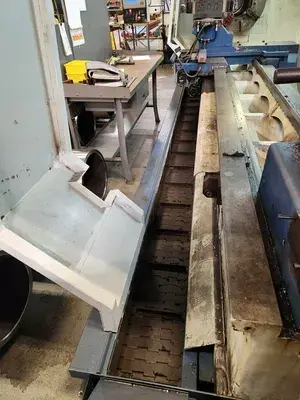

Front & Rear Swarf Chip Conveyor
400V 3 Phase power
