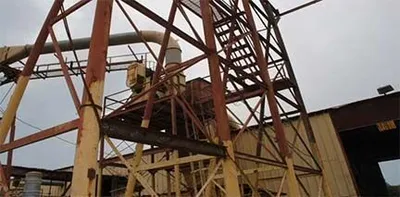

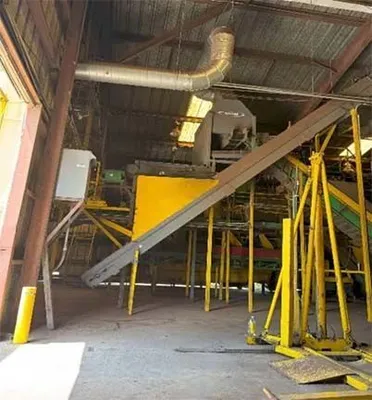

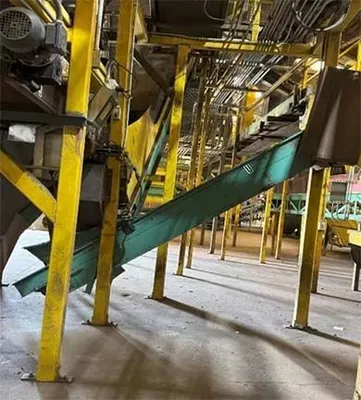

USED PECAN PROCESSING PLANT 40,000 LBS/HR

Pre Cleaner

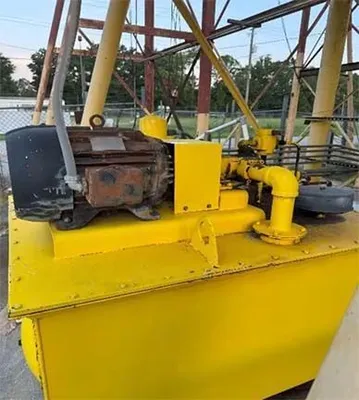

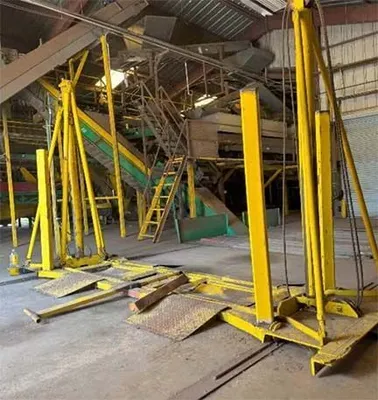

~ Phelps Trailer Lift 46' Long x 10' Wide, Complete with Hydraulic Lift Pump Power Supply, Gantry Trailer Electric Lift Hoists, 2 Slides, 4 Winches

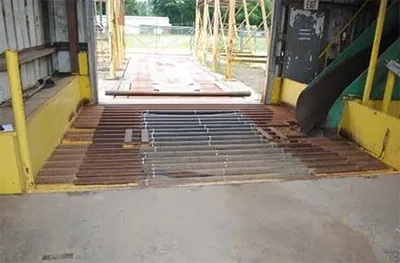

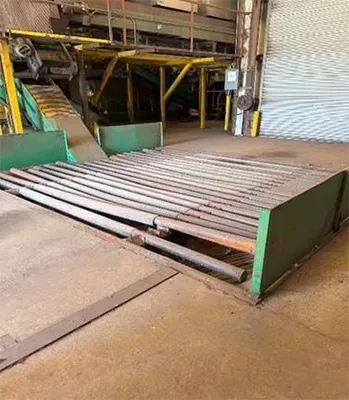

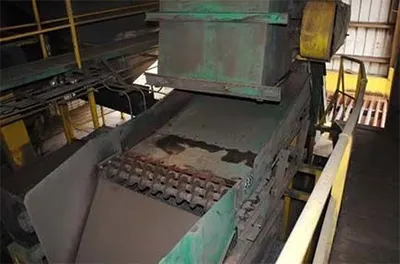

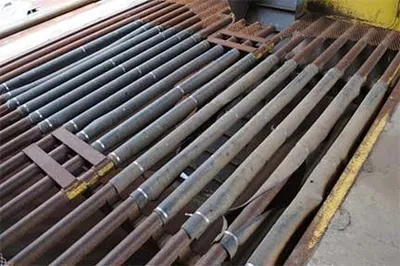

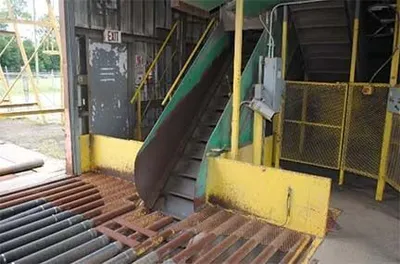

~ 12' Long x 14' W x 6' Deep Dump Pit with Tiger Bars, 32" W x 37' L Elevated Cleated Rubber Belt Pit Conveyor 7.5/5.5-HP Electric Motor

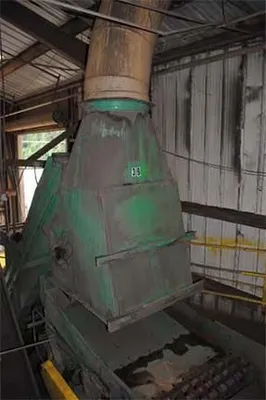

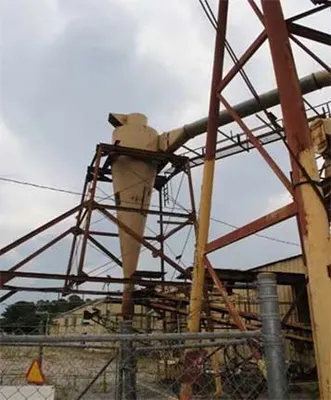

~ Primary Trash System Hood with Overhead Exhaust, Primary Trash System Drop Box, 12'W x 5' Dia. x 75-100-HP Primary Trash System Fan with Super Structure, Cyclone
~ 65"L x 53" W Shaker Pan, Large Stick / Limb Separator, Savage Model 3448 Sand & Stick Remover, 18,000 LBS/HR Capacity, 85-1/2"L x Fully Adjustable Height, 3/4-HP with Cleated Rubber Belt Conveyor
~ 30"W x 19' L Primary Trash System Drop Box Belt
~ 30W" x 17'L Savage Elevator Cleated Rubber Belt Conveyor
~ 30"W x 19' L Primary Trash System Drop Box Belt

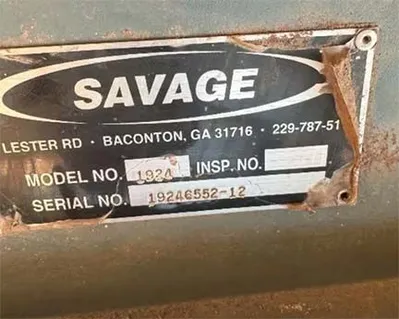

~ 24"W x 12'L Savage Model 1924 Incline Cleated Rubber Belt Conveyor

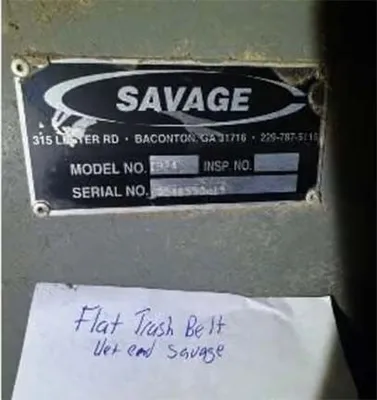

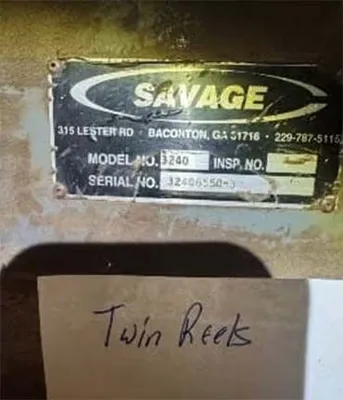

~ Savage Model 3240 Twin Reel Small Debris Remover with Stainless Steel Hopper, 12"W x 8'L Savage Model 1912 Reel Trash Flat Conveyor, 35"W x 39'L Main Trash Rubber Belt Cleated Elevator Conveyor
~ Secondary Aspirator with 60"W x 30"L Shaker Pan, 12"W x 8'L Trash Belt for Secondary Aspirator and Fan, 30" W x 32'L
~ Shaker Conveyor with Split System to #1 Air Leg

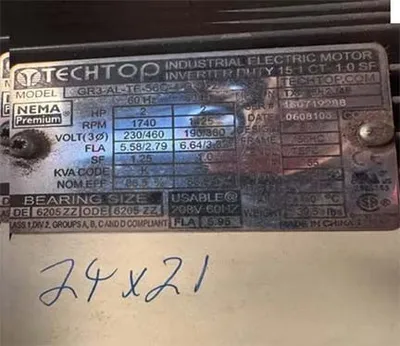

~ Jesse Air #1 Leg Aspirator, with Duct Work, Fan, Loading Belt, Drop Boxes, 24" x 21' Inclined Rubber Belt Cleated Outlet Conveyor
~ 18" W x 27'L Multi-Station Trash Inclined Rubber Belt Cleated Conveyor
~ 4'W x 5'L De-Stoner Shaker Pan

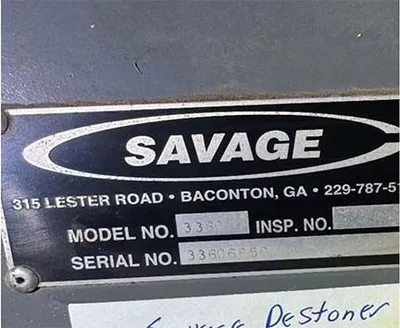

~ Savage Model 3360 De-Stoner

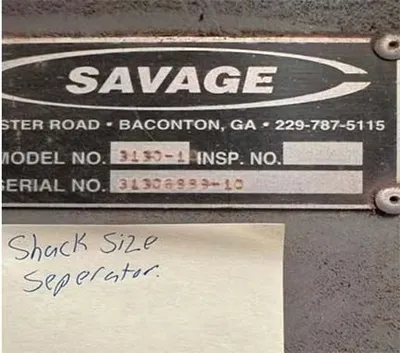

~ Savage Model 3130-1 Shuck Nut Separator with Adjustable Doors

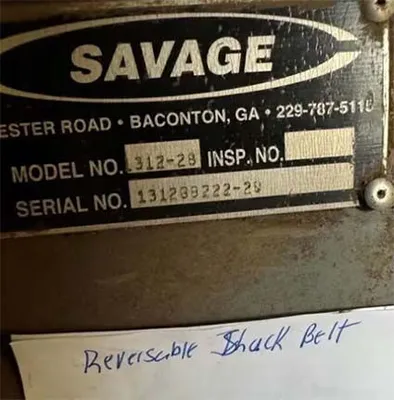

~12"W x 26'L Savage Model 1312.28 Elevated / Reversable Rubber Belt Conveyor
~ 15'W x 13.5' Long Reel Take Away Belt

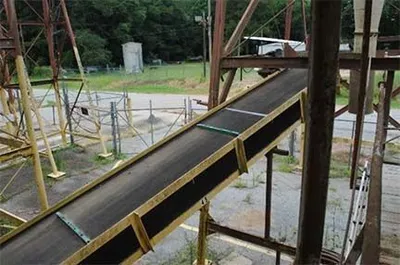

~ 24" W x 30' Long Incline Rubber Belt Conveyor Back
~ 18"W x 26.5' Long Steep Incline Rubber Belt Conveyor Front

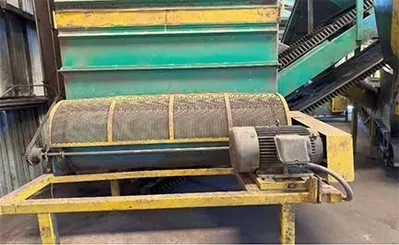

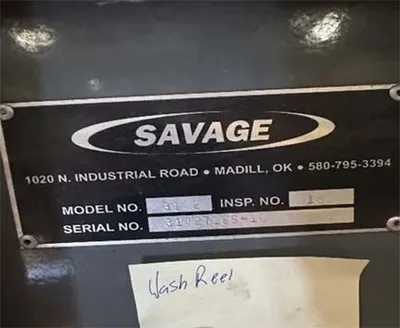

~ Savage Model 3142 Wash Reel with Rinse Plumbing
~ Huller Size Reel
~ (4) Adjustable Barton Hullers
~ 18"W x 19.5L Dehuller Flat Belt Conveyor
~ 35"W x 12.5'L Flat Conveyor
~30"W x 29'L Elevated Rubber Belt Cleated Incline Conveyor
~ Level Load Splitter
Dry Grading and Sorting Begins
~ Huller Wash System with Huller Flush Away Tank
~ Peanut Wagon Dumper with Hydraulic Power Unit, Trailer Lift Pump

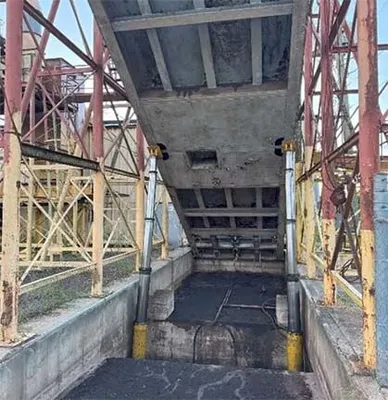

~ 14'W x 12'L x 6'D Pit with Tiger Bars
~ 24"W x 19'L Inclined Pit Belt Conveyor
~ 24"W x 21'L Steep Incline Cleated Belt Conveyor
~ Savage Model 1760 Asperator, with Fan

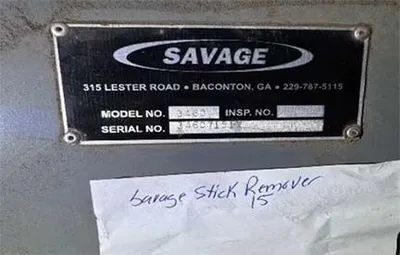

~ Savage Model 3460 Stick Remover
~ 12"W x 7.5'L Flat Inspection Conveyor
~ 24"W x 31' Savage Steep Incline Rubber Belt Conveyor Cleated

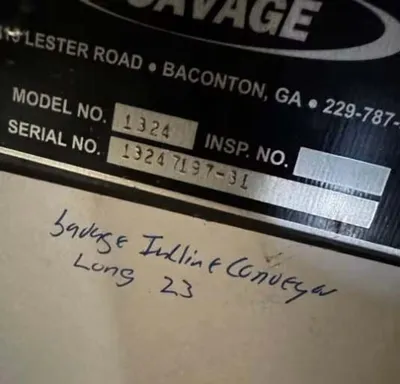

~ 24"W x 18'L Savage Model 1324 Elevated Belt Conveyor with Surge Hopper, 4 Way Patleg Chute
~ 18"W x 24'L Savage Flat Conveyor

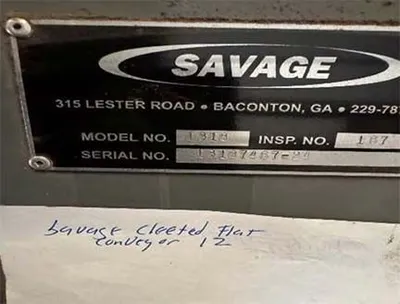

~ 12"W x 17'L Savage Model 1318 Cleated Belt Conveyor

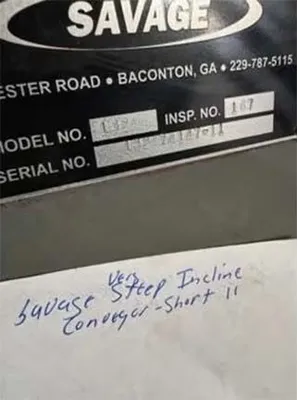

~ 24"W x 11'L Savage Model 1324 Steep Incline Cleated Belt Conveyor with VFD
~ 16"W x 5'L Flat Conveyor
~5"W x 6'L Elevated Belt Conveyor
~ 12"W x 10'L Elevated Belt Conveyor
~ Pick Table Trash Conveyor
~12"W x 40'L Elevated Inclined Belt Conveyor
~ 10"W x 40'L Reversable Flat Belt Conveyor
~ 12"W x 26'L Steep Incline Cleated Belt Conveyor
~ 12"W x 23'L Flat Belt Conveyor
~ (4) 30"W x 14.5'L Inspection Tables

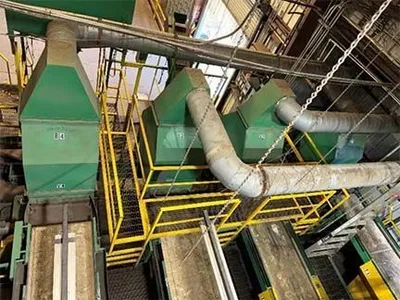

~ (4) B-Grade Aspirators with VFD's, Fans, 18"W x 12.5'L Belt Conveyor, 8"W x 5'L Belt Conveyor, 3 8”W x 4.5’L Belt Conveyor, 4 8”W x 14’L Belt Conveyor, Elevator Section, 24"W x 26'L Table Take Away Belt
~ 24”W x 28’L Steep Incline Cleated Belt Elevator
~ 24”W x 36.5’L Corssover Belt Conveyor
~ 3’W x 3’L Pin Machine Shaker Divider

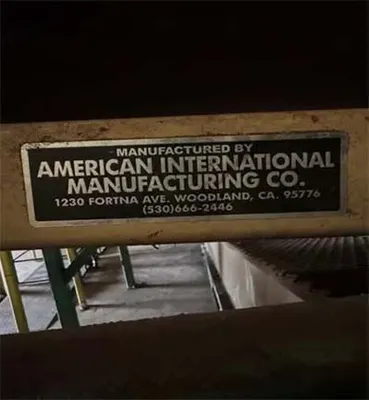

~ (3) American International Crack Pin Sorters
~18"W x 32'L Pin Sorter Take -Away Belt Conveyor
~24"W x 30'L Steep Incline Cleated Belt Elevator
~Savage Model 3142-1 Size Sorter with Adjustable Doors

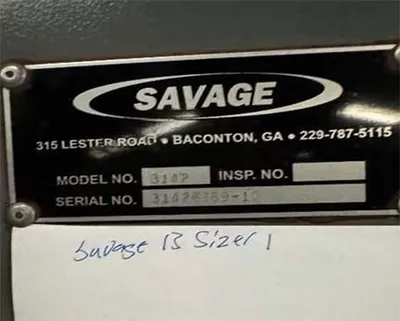

~ Savage Model 3142 13/16 Size Reel
~ 24"W x 38'L Split Belt Size Divider
~ 12”W x 33’L Belt Conveyor (Large Size)
~ 24”W x 33’L Belt Conveyor (Medium Size)

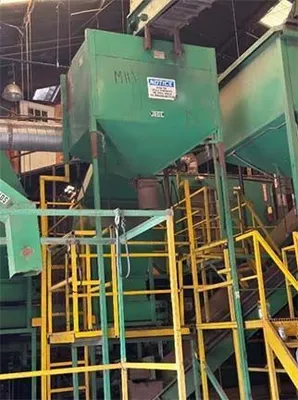

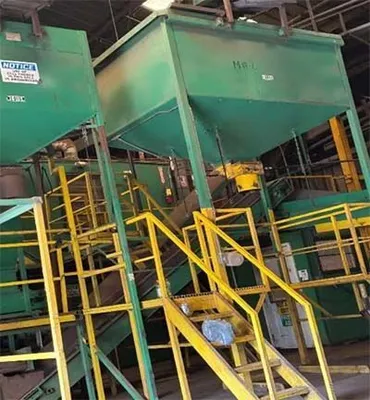

~ Small Bagging Hopper
~ Medium Bagging Hopper
~ Large Bagging Hopper
~ 12”L x 23’L Under Table Cracks Belt
~ 12’W x 12”W x 14’L Cracks Belt 2
~ 12”W x 17’L Incline Crack Elevator (1)
~ 12”W x 20’L Cross Cracks Belt
~ 12”W x 15’L Crack Bagging Elevator
~ 12”W x 23’L Pin Sorted Cracks Belt

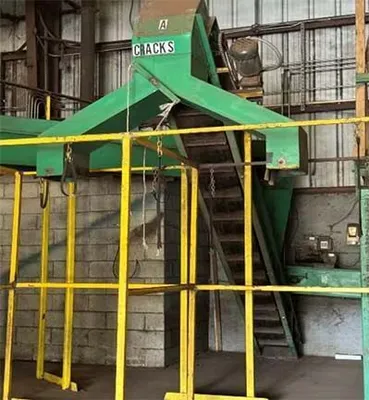

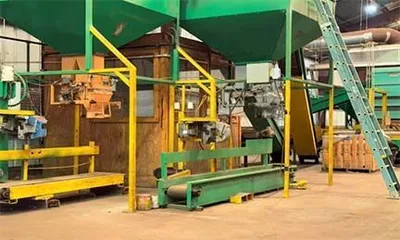

~ Twin Head Crack Bagging Station

~ 12”W x 9.5’L Green 50# Capacity Bagger Belt
~ 12”W x 7’L Yellow 50# Capacity Bagger Belt

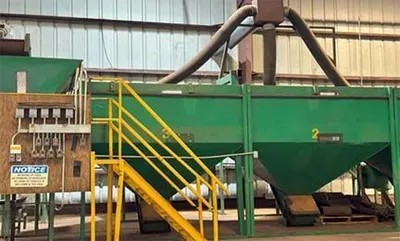

~ 6’L x6’W x 4.5’D 50# Capacity Bagging Hopper
~ 6’L x6’W x 4.5’D 50# Capacity Bagging Hopper

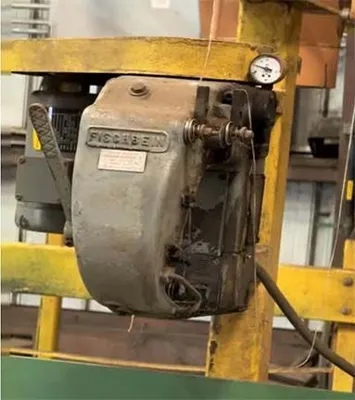

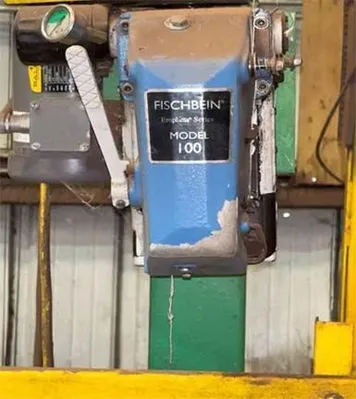

~ Fischbein Empress Model 100 Sewing Head, 35-55 FPM Speed, 8.0mm Material Thickness, 2.5 S{O Adjustable from 2-4 SPI Stitch Width, Single-Needle, Double Thread Chain Stitch, Federal Type 401 Locking Stitch Type
~ Fischbein 50# Capacity Sewing Head

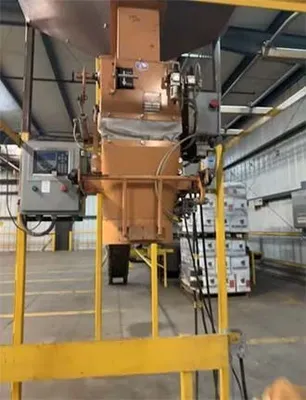

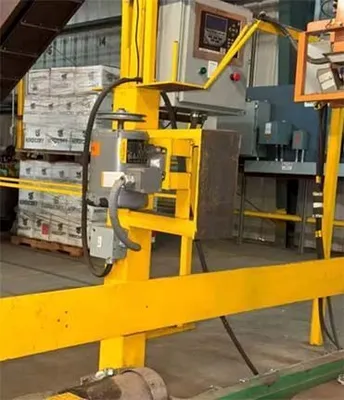

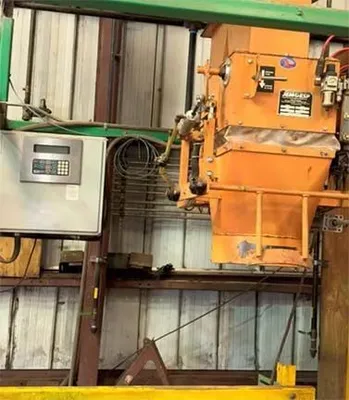

~ JEM ESP Model JMCG31GVD 115# Capacity Capacity Bagging Head, with Digital Scale, S/N: 070866

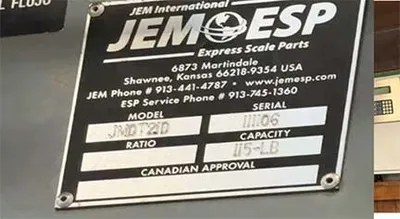

~ JEM ESP Model JMDT21D 115# Capacity 115# Capacity Bagging Head, with Digital Scale, S/N: 11106
~ 12”W x 20’L Elevated Conveyor Y Cleated Belt Type
~ 12”W x 27’L Elevated Conveyor G Cleated Belt Type
~ 24”W x 11’L Inspection Cross Conveyor
~ 24”W x 8’L Inspection Table 1
~ 24”W x 8’L Inspection Table 2
~ 4’W x 11’L Goolsby Blower System
~ 12"W x 23'L Flat Belt Conveyor
~ 12”W x 14.5’L Blending Hopper Belt 1
~ 12”W x 14.5’L Blending Hopper 2
~ 12”W x 14.5’L Blending Hopper 3

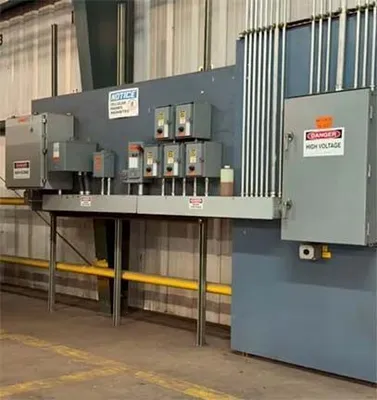

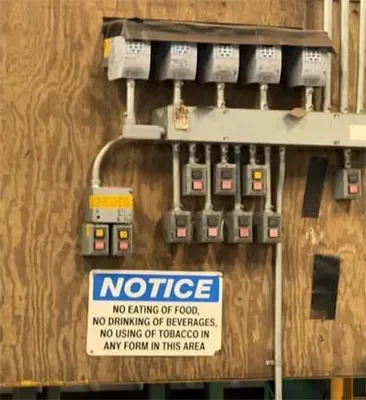

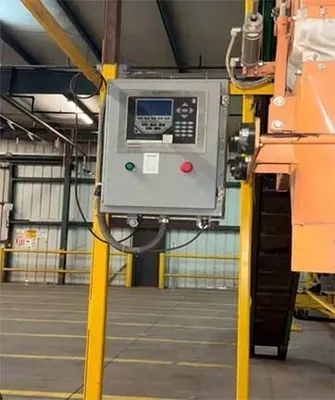

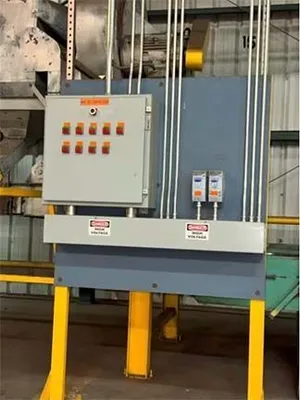

~ All Associated Controls

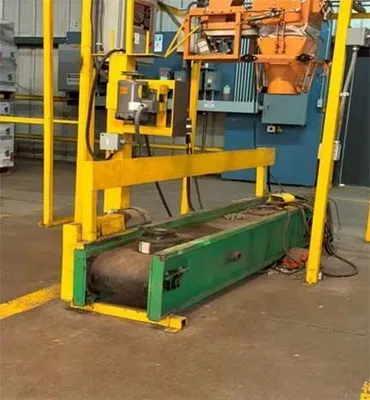

~ 12”W x 7.5L 50# Capacity Bag Sewing Belt
~ JEM ESP Model JMCG31GVD 115# Capacity Bagging Filling Head with Digital Scale, S/N: 070866
~ 3.5’L x3.5’W x 3.5’D 50# Capacity Bagging Hopper
~ 12”W x 21’L Incline Cleated Belt Conveyor
~ 24”W x 10.5’L Cross Inspection Conveyor
~ 24” W x 11’L Inspection Table 1
~ 24” W x 11’L Inspection Table 2
~ 4’W x 14’L Blower System
~ 12”W x 11’L Incline Conveyor Cleated Belt Type
~ 5’W x 5’ L x 3.5’D Loading Hopper
~ Related Controls

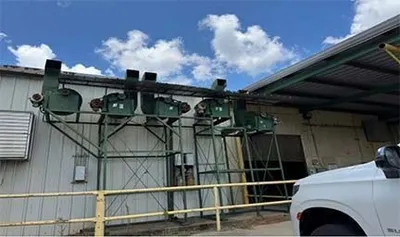

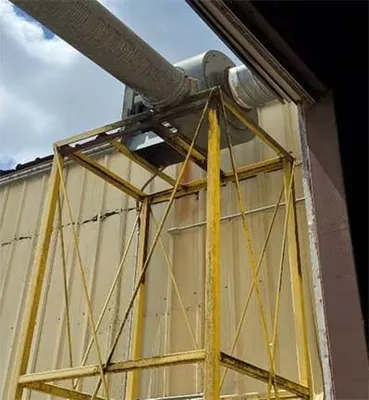

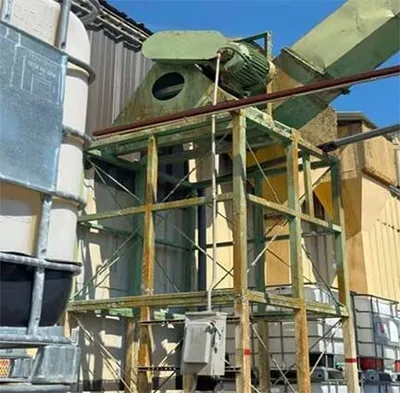

~ 25-HP De-Rocker Fan, 1775 RPM, 230/460, 3PH, 50/60HZ Complete with Superstructer
~ 7.5-HP Bag Vent Fan, 1765 RPM, 208-230/460V, 3PH, 50/60 HZ with Superstructer
~ 20-HP DEP Fan, 1765 RPM, 230/460V, 3PH, 60 HZ with Superstructer

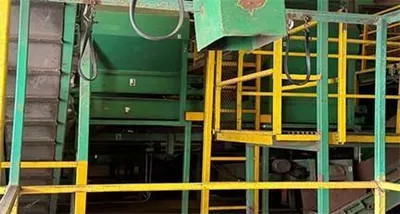

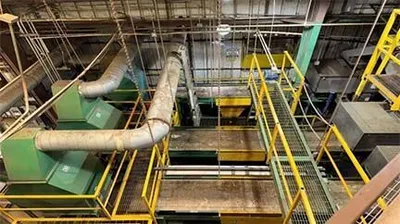

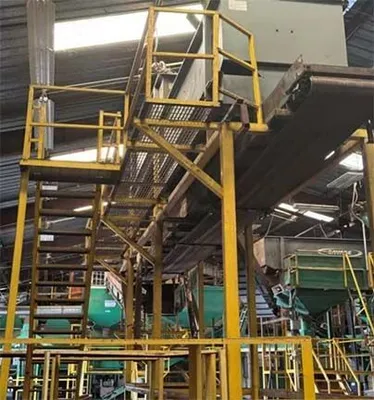

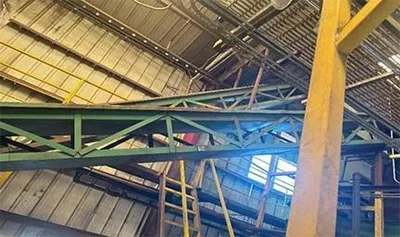

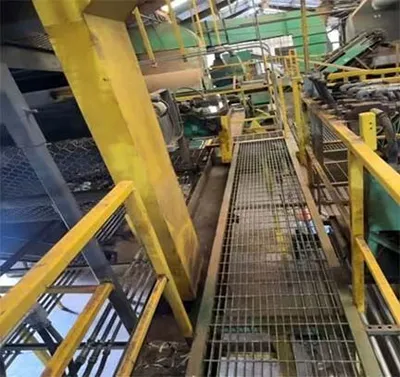

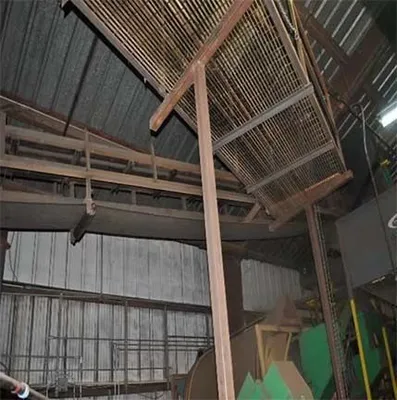

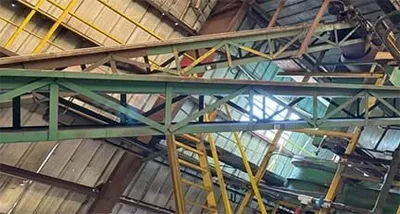

~25'W x 350'L Cat Walk & Railings

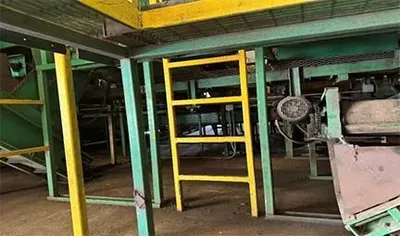

~ Metal Ladders & Railings
