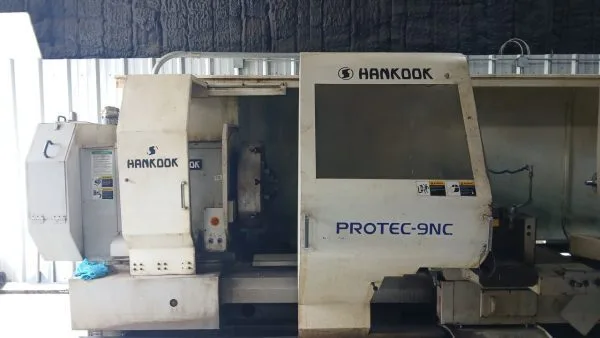

37.4" x 157.5" HANKOOK 9NC Engine Lathe, 24.8 Swing over Carriage
| Swing | 37.4" | 949.96 mm |
| Centers | 157.48" | 4,000 mm |
| Spindle Bore | 9.875" | 250.82 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 630 RPM | 630 RPM |
| Dimensions | 255″ x 87″ x 73″ | 255″ x 87″ x 73″ |
| Weight | 20,200 lbs | 20,200 lbs |
Max Swing Over Bed 37.4″
Max Swing Over Cross Slide 24.8″
Distance Between Centers 157.48″
Maximum turning length 151″
Spindle bore 9.875″
Min/Max Rpm 3 – 630 RPM
Fanuc 21i-TB Control
Front/Rear 24″ Manual Chucks
X-axis travel 21.1″
Z-axis travel 151″
Rapid traverse rates x / z 157.6 IPM / 236 IPM
Tailstock quill travel / quill diameter 9.85″ / MT #6
Main Motor 35 hp 2 Speed
Dimensions 255″ x 87″ x 73″
Weight 20,200 lbs
Equipped With:
Fanuc 21i-TB Control
Tooling Available
02 Steady Rest
01 Follow Rest
8 Position Turret
Chip Conveyor
