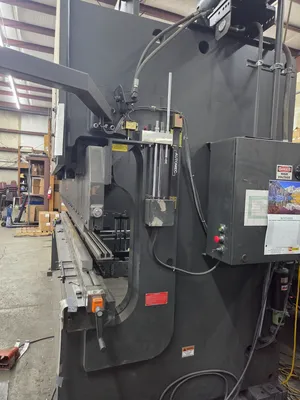

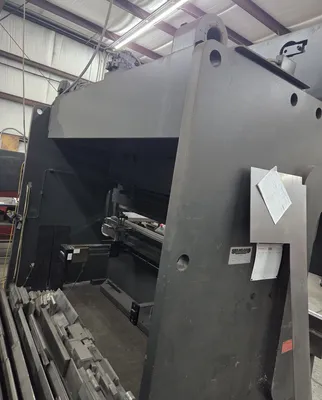

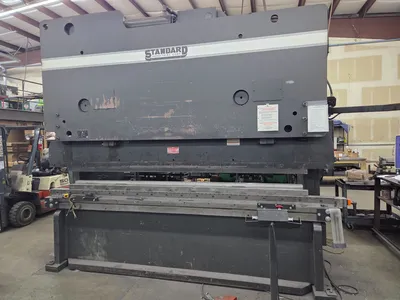

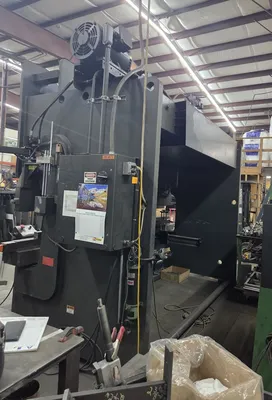

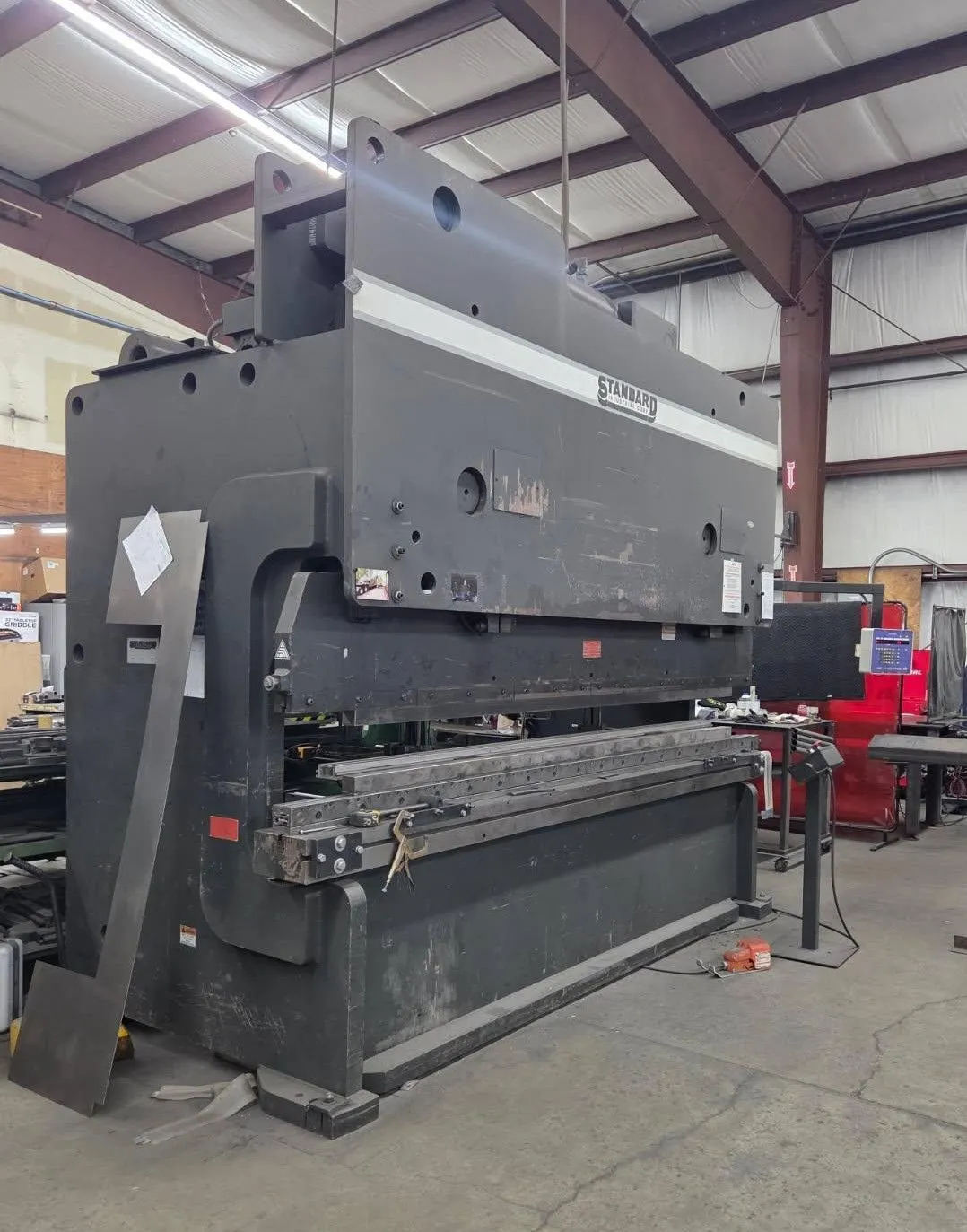

USED 2011 STANDARD INDUSTRIAL AB325-12
Overview
The 2-axis Automec CNC300 Control can store up to 300 jobs with each job can storing up to 10 bends. Additionally, the CNC300 Control can support job linking, which would allow more complex parts to exceed the 10-bend limit by chaining programs together.
Specs
TONNAGE: 325
OVERALL LENGTH OF BED & RAM: 144"
DISTANCE BETWEEN HOUSINGS: 125"
STROKE: 8"
OPEN HEIGHT: 16"
THROAT DEPTH: 10"
BED HEIGHT: 39"
SPEEDS:
- FAST APPROACH: 78 IPM
- FORM: 17 IPM
- RETURN: 122 IPM
MAIN MOTOR: 30 HP
APPROX. WEIGHT: 50,000 LBS
APPROX. DIMENSIONS: 156"(L) x 84"(W) X 126"(H)

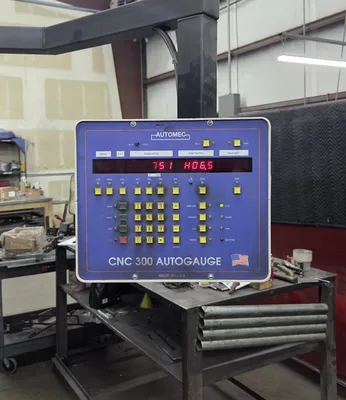

CNC CONTROL & BACK-GAUGE SPECIFICATIONS & FEATURES:
- MANUFACTURER: AUTOMEC
- MODEL: CNC 300 AUTOGAUGE
- BACK-GAUGE RANGE: 24"
- NUMBER OF PROGRAMMABLE AXES: 2 (Y & X)
- RAM DEPTH MODES: RAM DISPLAY CAN SHOW TRUE RAM POSITION IN DEPTH
OR ANGLE.
- RAM OFFSET – ALL RAM DIMENSIONS CAN BE OFFSET ± .393” WITH ONE DATA ENTRY.
- GAUGE OFFSET – ALL BACKGAUGE DIMENSIONS CAN BE OFFSET ± .393” WITH ONE DATA ENTRY.
- 300 JOBS (00 TO 299)
- 10 BENDS PER JOB (LINKING AVAILABLE)
- 11 DIGIT JOB NUMBER
- TOP OF STROKE REFERENCE
- DEPTH OR ANGLE MODE
- PROGRAMMABLE DELAY/RETRACT BETWEEN BENDS (0 – 19 SEC.)
- PROGRAMMING DELAY/RETRACT BETWEEN BENDS (0 – 9 SECONDS)
- BEND ALLOWANCE ± .393”
- CALCULATOR TO CHANGE DIMENSIONS INCREMENTALLY
- ANGLE ADJUST FOR ANGLE CORRECTION
- BACKGAUGE REVERSAL ON PINCH POINT (TIME AND DISTANCE)
- PARTS COUNTER
- AUTOMATIC RAM CALIBRATION TO TOOL HEIGHTS
- .001” RESOLUTION
- RED L.E.D. DISPLAY
- IN/MM CONVERSION
- MEMBRANE KEYBOARD
Equipped With
AUTOMEC CNC 300 AUTOGAUGE 2-AXIS CONTROL
SINGLE AXIS PROGRAMMABLE BACK-GAUAGE

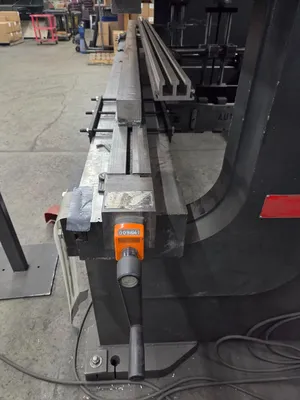

MANUAL R-AXIS
12' MECHANICAL CROWNING FILL BLOCK
12' MULTI-WAY BOTTOM DIE WITH 5/8", 1-1/8", 1-1/2", 2", 2-1/2" AND 3" DIE OPENINGS
