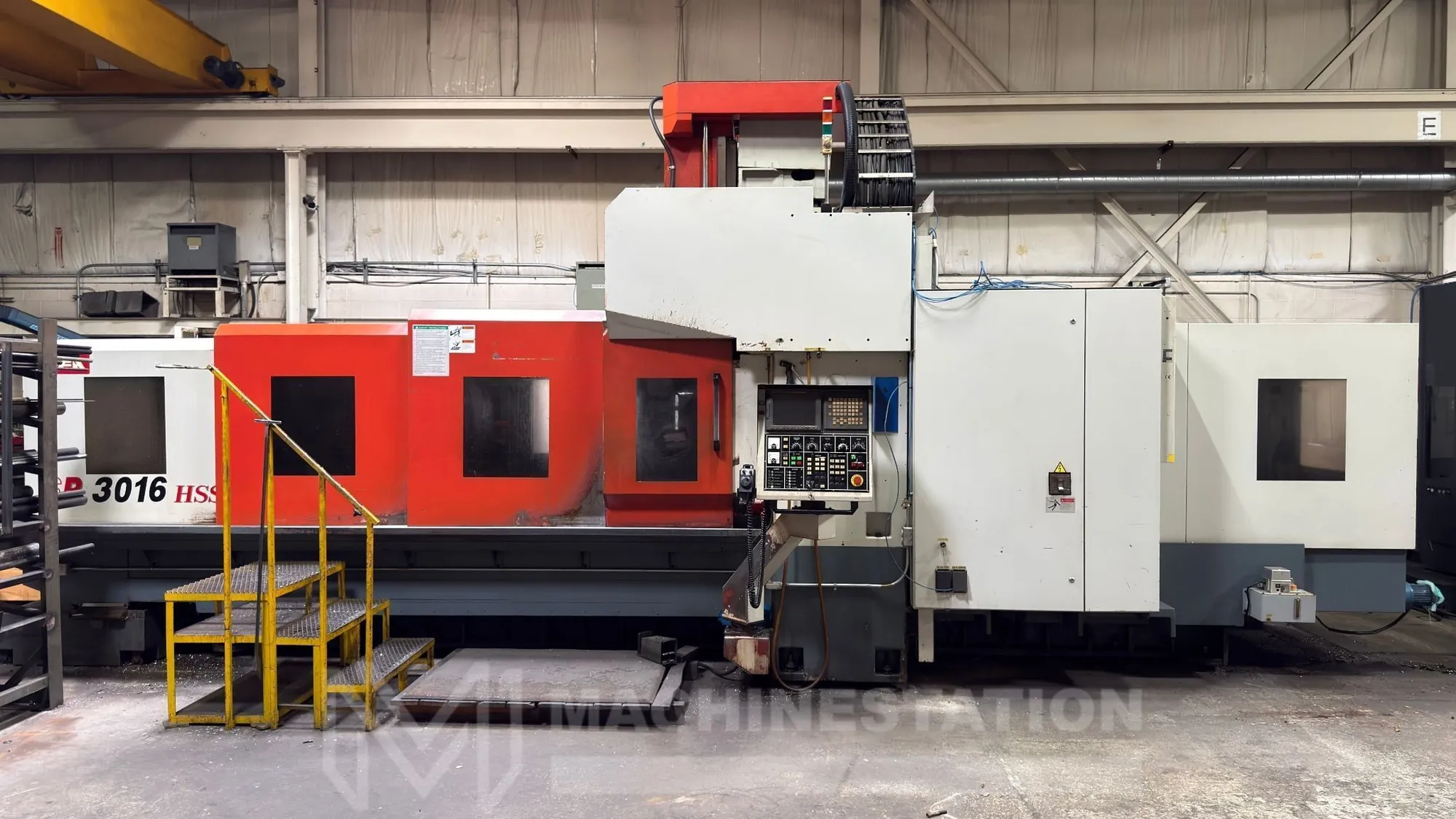

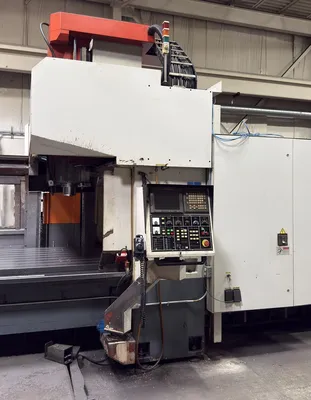

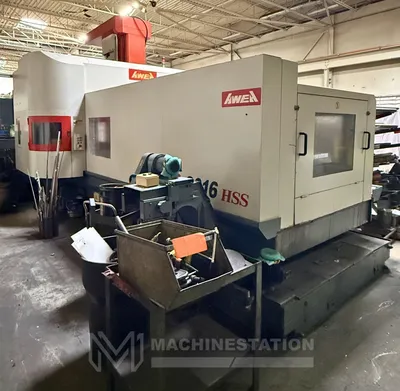

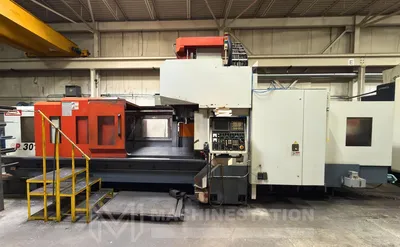

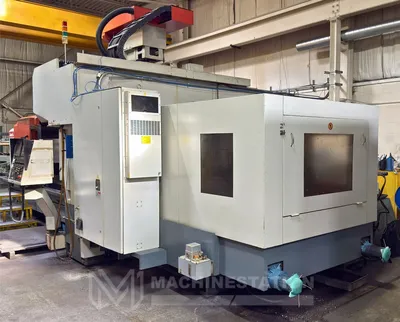

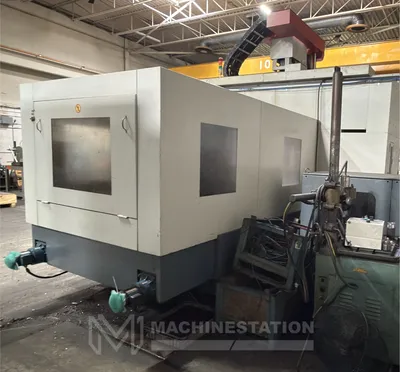

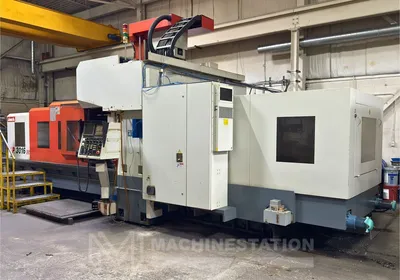

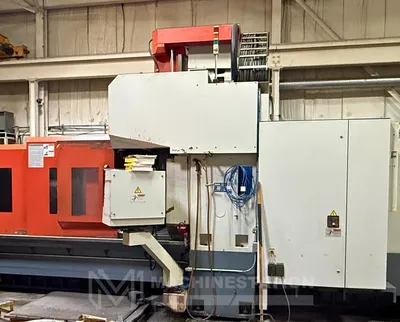

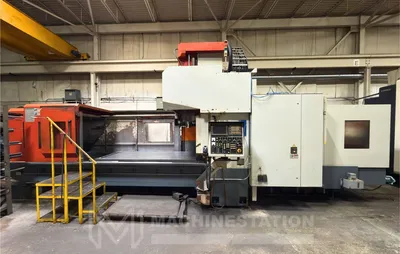

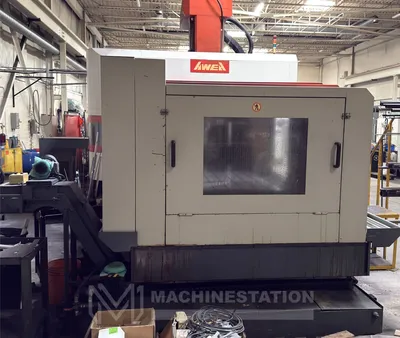

USED 2005 AWEA SP-3016HSS
Overview
Specifications
| X | 120.5" | 3,060.7 mm |
|---|---|---|
| Y | 63" | 1,600.2 mm |
| Z | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 19 | 19 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 59" | 1,498.6 mm |
| Table-L | 128.3" | 3,258.8 mm |
| Control | CNC (Fanuc 18iMB CNC Control) | CNC (Fanuc 18iMB CNC Control) |
| Dimensions | 342″ X 184″ x 153″ High Approx. | 342″ X 184″ x 153″ High Approx. |
| Weight | 52,000 lbs. Approx. | 52,000 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

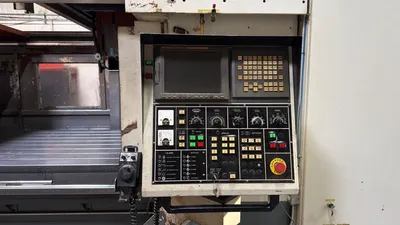

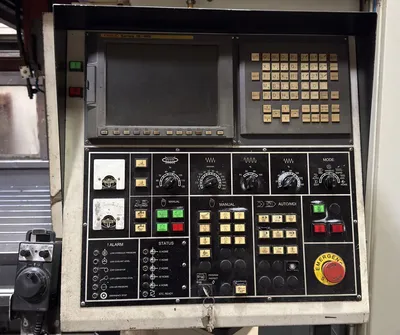

Fanuc 18iMB CNC Control
128.3″ X 59.0″ Table
Powerful 30 HP high torque spindle motor
PCMCIA Card Slot
Coolant System
Travels:
X-Axis: 120.5″
Y-Axis: 63.0″
Z-Axis: 30.0″
Distance Between Columns: 66.9″
Spindle Nose to Table (Min.- Max.): 6.3″- 36.2″
Rapid Travers Rates X,Y-Axis: 787 inch per minute
Rapid Travers Rates Z-Axis: 591 inch per minute
Cutting Feedrate: .04″ – 591″ inch per minute

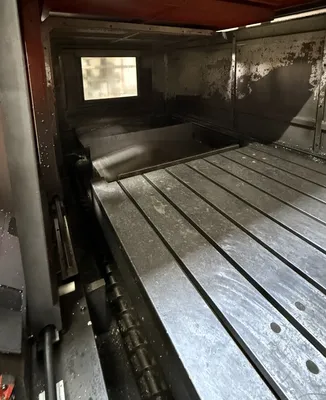

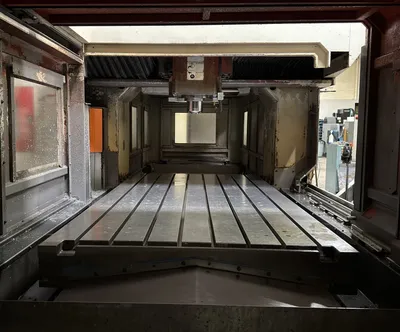

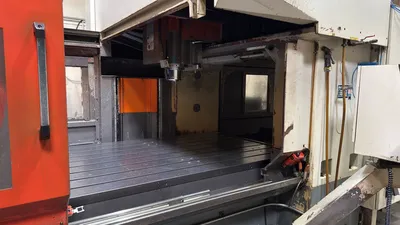

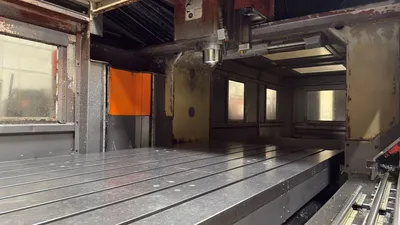

Table:
Length: 128.3″
Width: 59.0″
Max Weight on Table: 22,000 lbs

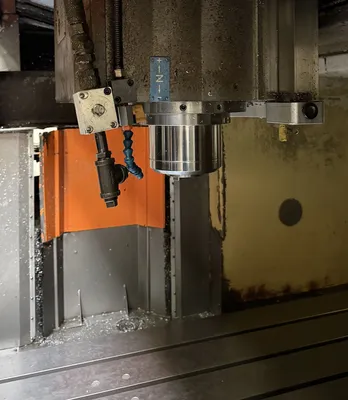

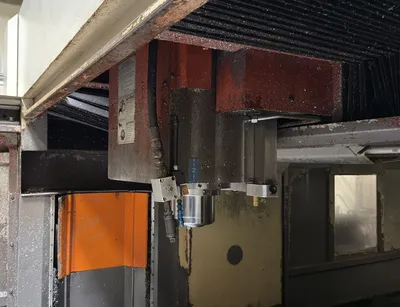

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 35 HP
Automatic Tool Changer:
Capacity: 19 Tools
Max Tool Weight: 15 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 4.0" – 5.0″
Tool Change Time (Tool to Tool): 12 sec.
General:
Air Required: 100 psi, 4 scfm

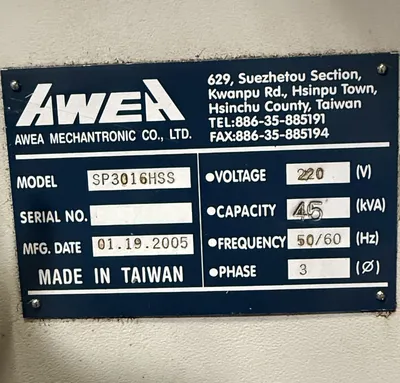

Power: 220v / 3-Phase
Dimensions: 342″ X 184″ x 153″ High Approx.
Weight: 52,000 lbs. Approx.
Equipped With
19 Station Side Mount Tool Changer
CAT-40 Spindle Taper
15,000 RPM High Speed Spindle
MPG Handwheel Control
Chiller Unit
Chip Conveyor
