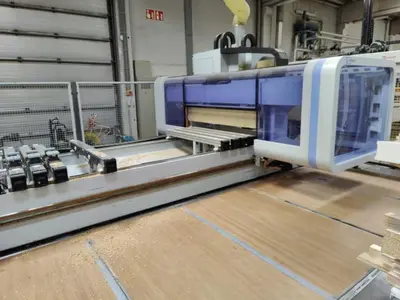

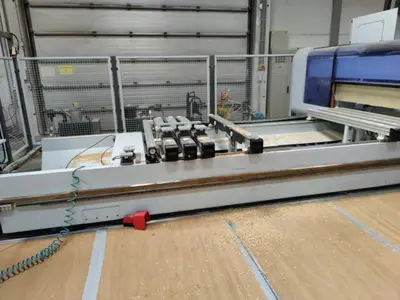

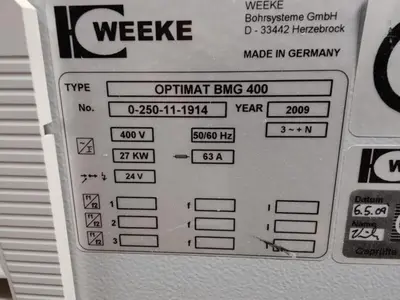

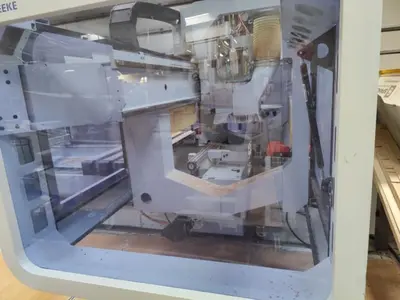

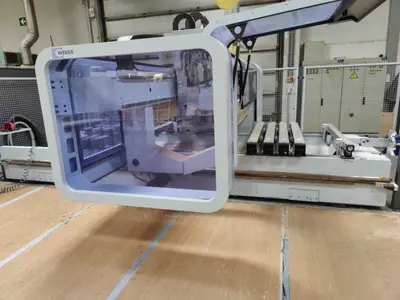

USED 2009 WEEKE / HOMAG OPTIMAT BMG 400
Overview
X=3700mm Y=1440mm, Z=150mm
Moving speed: X: 80 m/min, Y: 80 m/min, Z: 20 m/min

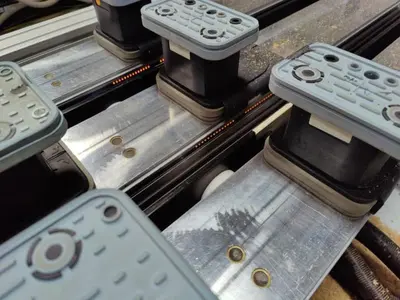

8 supports with vacuum cups, pneumatic clamping
8 fences at the rear
8 fences in front
2 left fences and 2 right fences

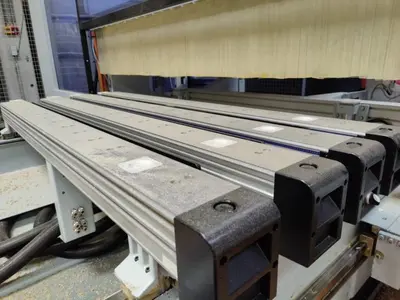

6 rails for panel loading with pneumatic lifting
Positioning the vacuum cups using a laser
1 connection for templates

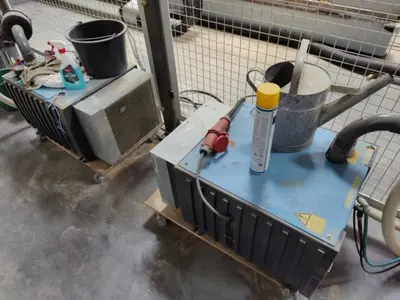

Vacuum pump with flow rate 100 m3/h
Configuration V25,H8X/6Y, N1 X-Y 90°, F1-HSK63-15KW,F1-HSK63-9KW, C axis, W14 rear

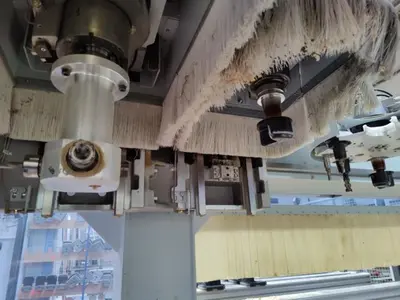

Main motor 15 kW, 1250-24000 rpm, air-cooled, 360° C-axis, C-axis interpolation axis, HSK 63 mounting
C axis extension for flex-5 aggregate
Main motor 9 kW, 1250-24000 rpm, air cooled, HSK 63 mounting
Tool changer operating in X direction with 14 positions, rear mounted

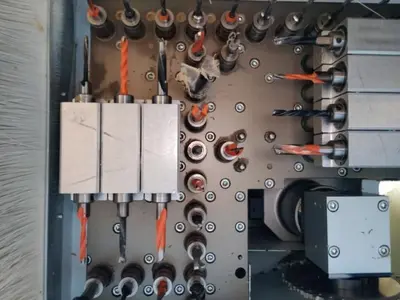

2 x 4 vertical X drilling pins, 2 x 3 vertical Y drilling pins
14 horizontal drilling spindles
90° groove saw X-Y direction
PC 85 power control software with:
Woodwop: workshop-oriented programming system
Import 2D-DXF files
USB connection
3D NC simulation and time calculation
Production list
