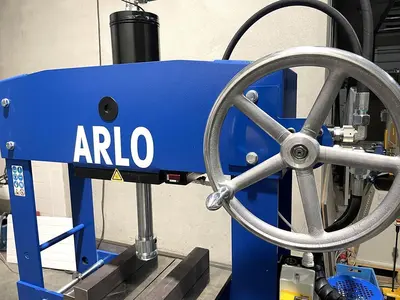

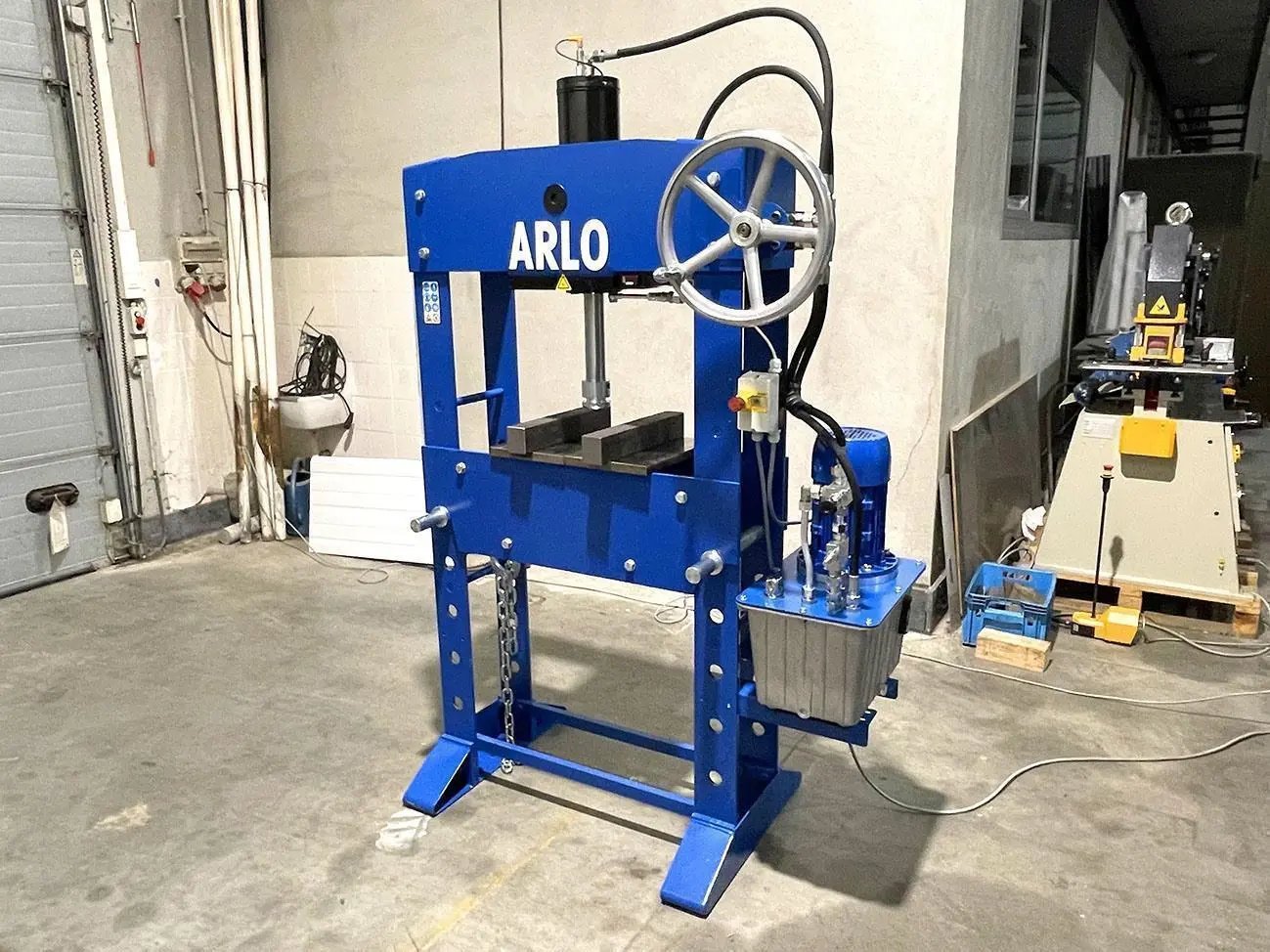

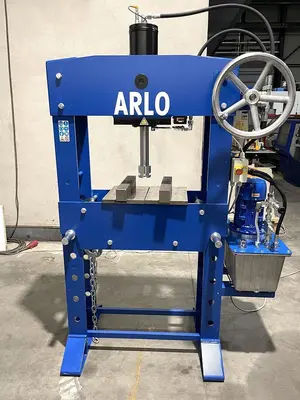

By turning the hand wheel to the left or right, the speed and pressure force can be regulated very precisely. These two forces are variable by means of the hand wheel. This Arlo workshop precision press is extremely suitable for pressing in/out bearings, inserting bushings, straightening work and inserting keyways (broaching).

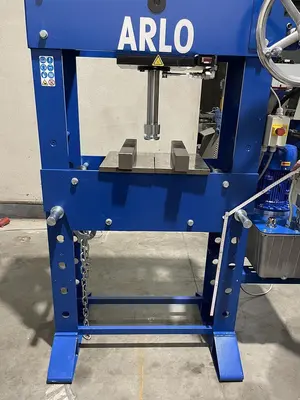

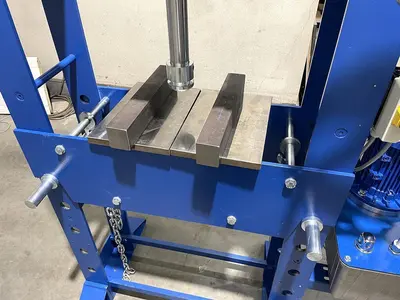

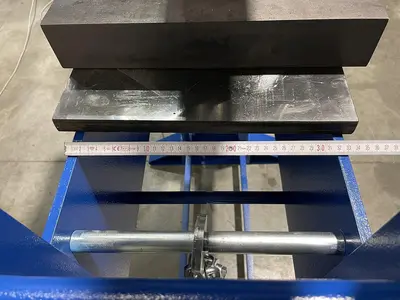

Table is adjustable in height
- min distance between piston and table: 400 mm
- max distance between piston and table: 1000 mm
- in increments of 150 mm
Capacity: 30 ton

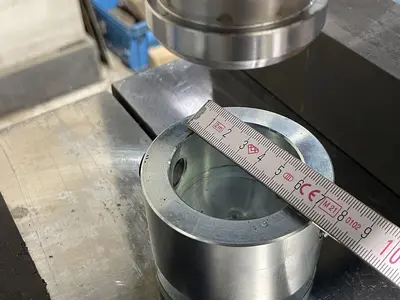

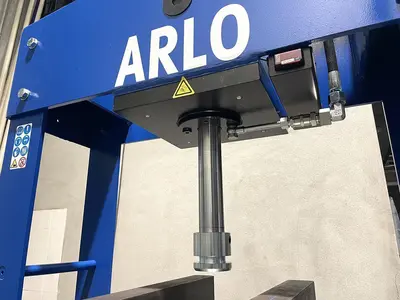

Max ram adjustement: 380 mm
Drawingspeed: variable via handwheel
Workingspeed: variable via handwheel
Returningspeed: variable via handwheel

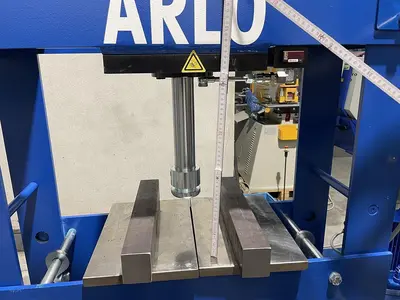

Max distance between table -- ram: 750 mm
Electric motor (power): 1,5 kW

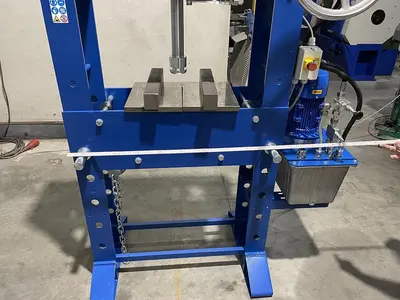

Length: 1000 mm
Depth: 850 mm

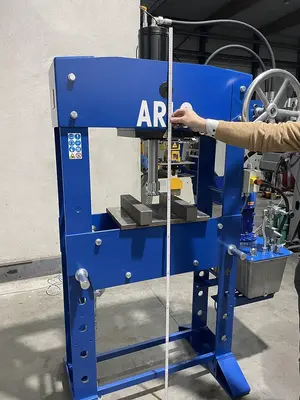

Height: 2200 mm
Weight: 410 kg
