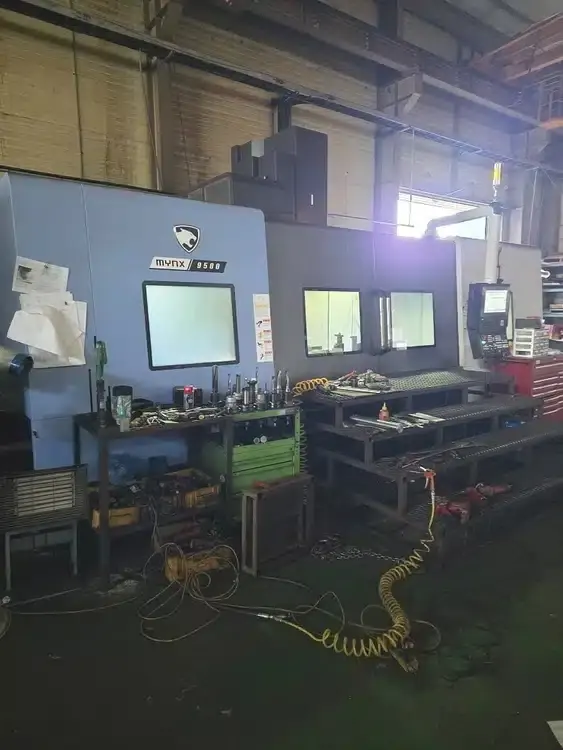

Doosan Mynx 9500/50 – 2022

DOOSAN MYNX 9500/50

NUMBER OF TABLES / PALLETS 1

TABLE-L 98.4″

TABLE-W 37.4″

WEIGHT ON TABLE 7,716 lb

X – AXIS TRAVEL 98.4″

Y – AXIS TRAVEL 37.4″

Z – AXIS TRAVEL 33.5″

SPINDLE SPEED 6,000 RPM

SPINDLE TAPER 50

NUMBER OF GEAR RANGES 2

MAIN MOTOR 40 hp

AUTOMATIC TOOL CHANGER 30

TOOL DIAMETER 4.9″, 11.9″

TOOL LENGTH 13.8″

TOOL WEIGHT 33 lb

MACHINE WEIGHT 50,760 lb

CONTROL CNC (DOOSAN FANUC SERIES I CNC CONTROL)

DIMENSIONS 170″ x 255.1″ x 141.7″

WEIGHT 50706 LBS.

DOOSAN FANUC SERIES I CNC CONTROL

EZ GUIDE CONVERSATIONAL PROGRAMMING

TOOL LENGTH MEASURMENT PROBE

THRU SPINDLE COOLANT

EMBEDDED ETHERNET FUNCTION

DOOSAN TOOL LOAD MONITORING

RIGID TAPPING

CHIP CONVEYOR
