USED B&P BPA0281-101

Description

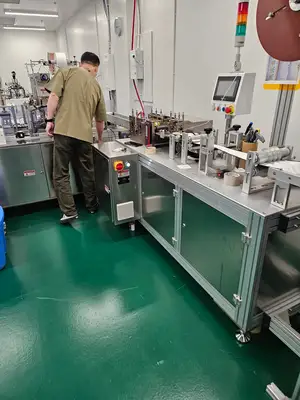

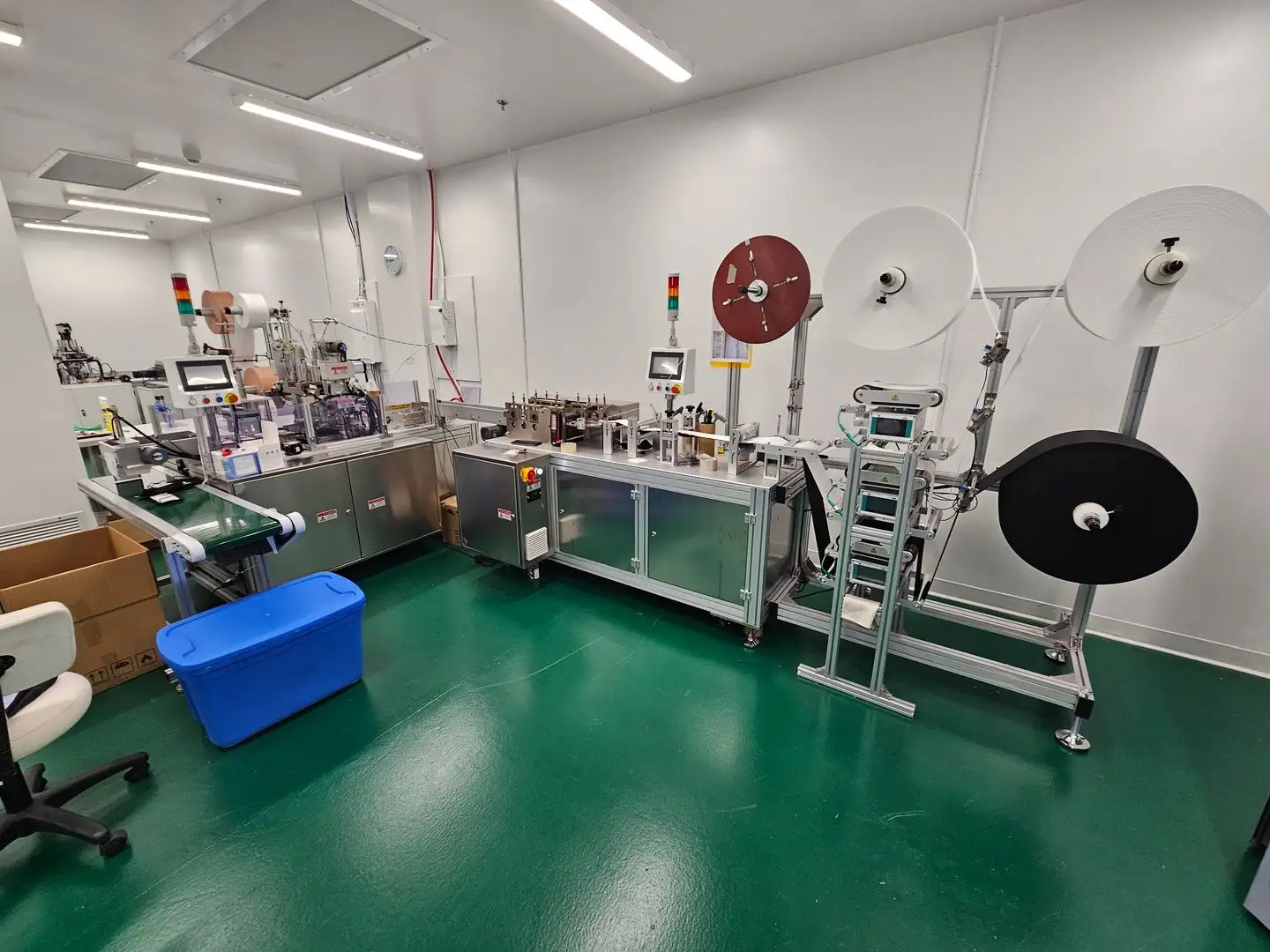

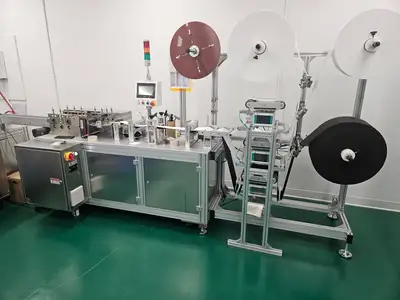

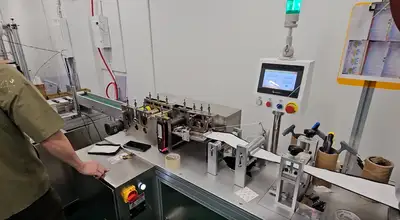

High-speed servo-controlled flat positioning mask machine designed for efficient production of flat masks.
Product Features
High-Speed and Stable Performance: The machine operates at high speed with consistent and reliable performance.
Ultrasonic Welding Technology: Produces aesthetically pleasing, hygienic, and environmentally friendly masks.
Fully Automated Production Line: Automates material feeding, nose wire insertion, edge sealing, and cutting, ensuring high efficiency and reduced labor costs.
Durable and Hygienic Construction: The frame is made of aluminum alloy, with critical components crafted from stainless steel, offering rust resistance, durability, easy cleaning, and an attractive appearance.
 Advanced Control System: Utilizes PLC programming and servo-driven technology for high automation, excellent stability, and low failure rates.
Technical Specifications
Dimensions: 4336 x 3268 x 1985 mm (L x W x H)
Weight: 1500 kg
Utility: compressed air required
Maximum System Operating Pressure: 0.7 MPa
Rated System Operating Pressure: 0.5 - 0.7 MPa
Input Voltage: 220V AC
Power: 10 kW
Operating Humidity: 20 - 80% RH (non-condensing)
Operating Temperature: 5 - 40°C
Production Speed: max. 85 pieces per minute
The chip-cutting machine adopts one Huizhuan ultrasonic 15K2600W, and the earband machine is equipped with two Huizhuan ultrasonic 20K2000W.
