USED 2012 MDL VS150

Overview:
Laser Type: Infrared InGaAs diode
Wavelength 905 nm
Beam Divergence 2.76 x 0.18 mrad
Range Resolution 1 cm
Maximum Range (white target) Up to 150 m
Minimum Range 0.5 m
Vertical Scan Range +135° to -135°
Horizontal Scan Range 0°-360°
Angular Accuracy +/- 0.2°
Angular Resolution 0.1°
Tilt Sensors (Pitch/Roll ) +/- 0.2° accuracy using accelerometers
Environmental Protection IP65 (dust and water resistant)
Operating Temperature -10 °C to +45 °C
Head Weight 5 kg
System Weight (with case) 23 kg
Power Supply 10-15 V DC or 110-240 V AC (via adapter)
Current Draw During Scan 0.8 A

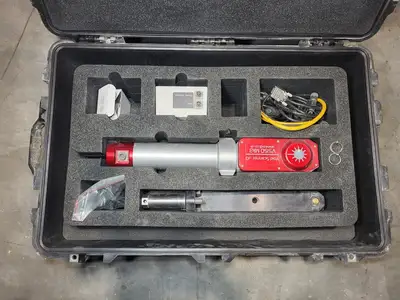

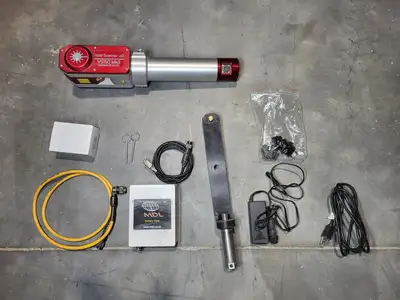

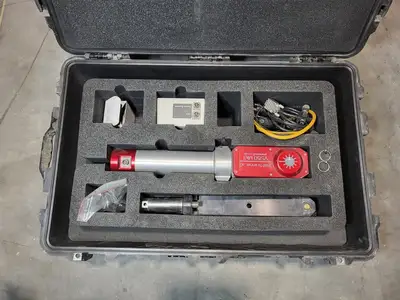

Typical Accessories 13.5 m rugged cable (data/power), tripod/boom mounts, interface box, battery, optional Wi-Fi module
Control Software Cavity Profiler VS - for real-time control, 3D visualization, merging scans, and exporting point clouds
