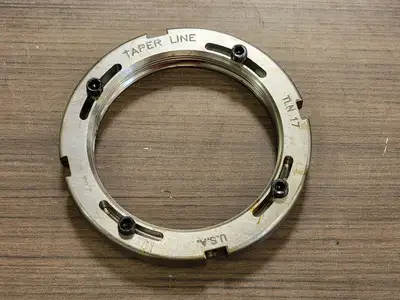

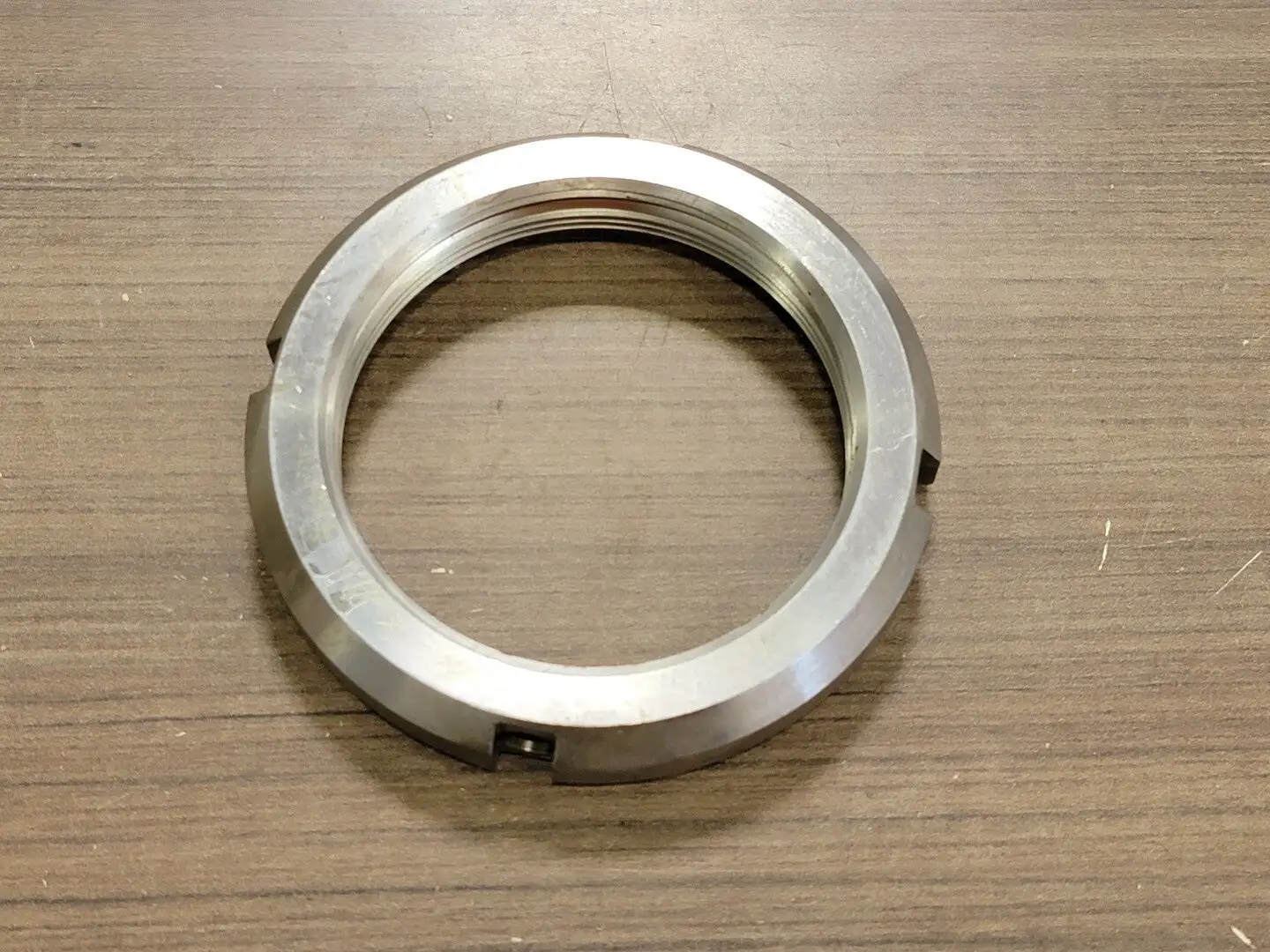

USED APPLIED INDUSTRIAL TECHNOLOGIES TLN-17

Bearing Bore Number: 17
Diameter (A): 4.406"
Dimension (B): .625"
Diameter (C): 4.031"
Hole Slot/Diameter (D): .375"
Dimension (E): .156"
Dimension (F): 3.340"
Pitch Diameter (G): 3.2859", 3.2918"
Pitch - Threads Per Inch (H): 12
Pilot Diameter (J): 3.3469", 3.3474"
Dimension (K): .281 in
Minimum Peripheral Torque Value: 8 lb. ft
Screw Size: 5/16"
Style: Peripheral Lock Style
Class: 3B Thread
Intended Application: Bearings
Fastener Type: Locknut
Materials: Carbon Steel
