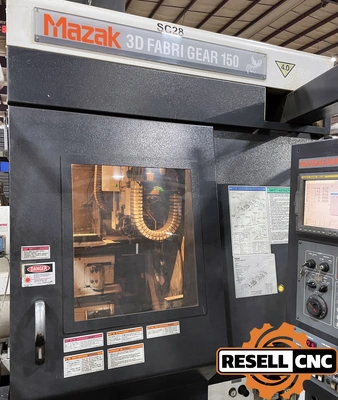

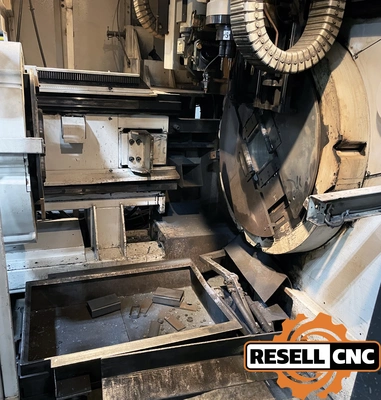

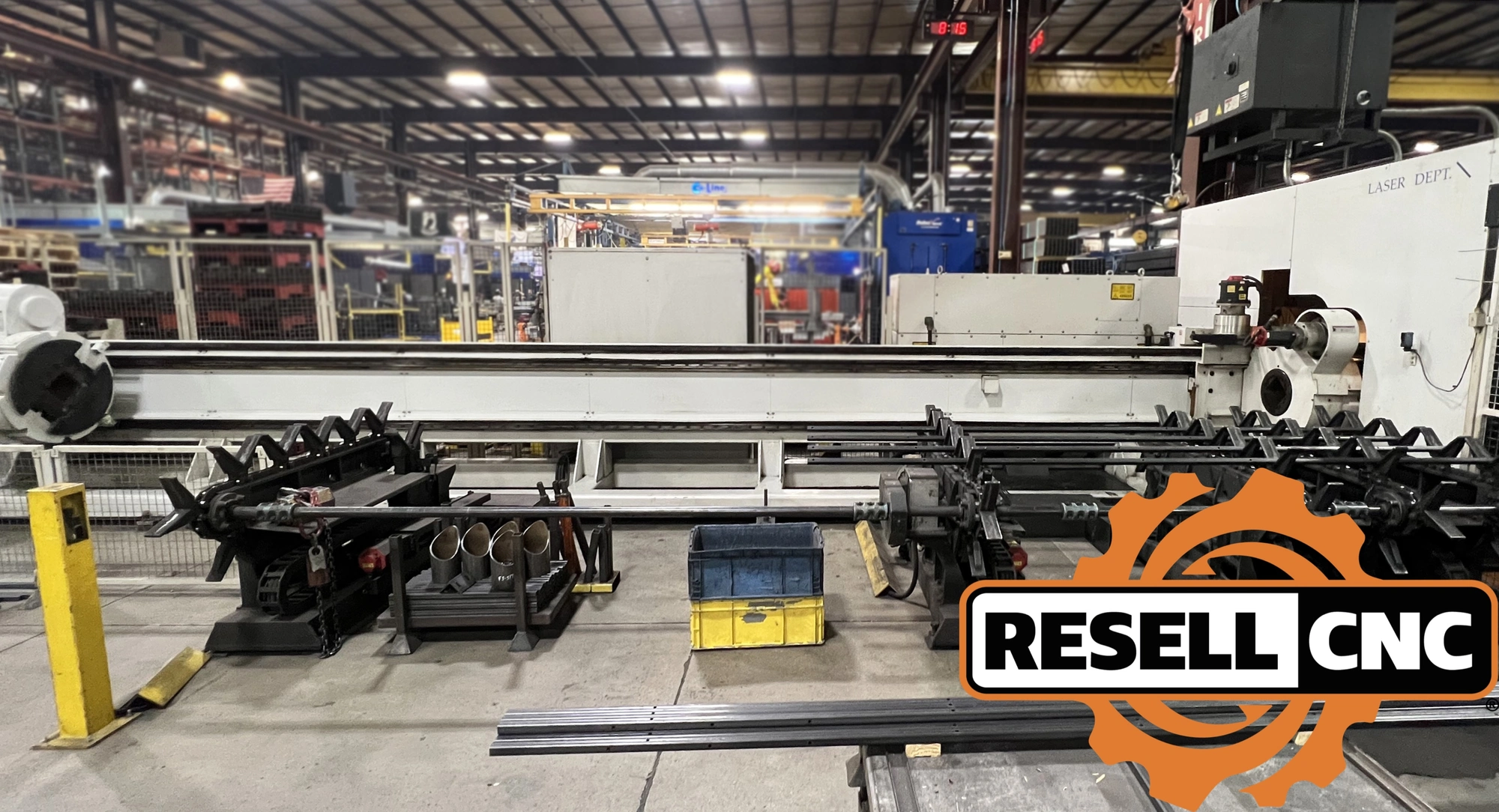

USED 2010 Mazak 3D Fabri Gear 150 Tube

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Specifications:

Cutting Head: 3D

Laser Type: CO2

Other Profile Capabilities: I/H, Beam, Angle, C

Max Square Tube Size: 6"

Max Round Pipe Diameter: 6"

Maximum Material Length: 26'

X chuck left/right: 352.6"

U chuck left/right: 345.6"

V chuck left/right: 91.14"

Y head back/forth: 38.78"

Z head up/down: 14.57"

A head rotation: ± 360 degrees

B head swing: ±135 degrees



Transportation Arm Stroke:
X,Y,Z,A: 26.97"

U,V,W,B: 9.84"

Voltage: 220/440V 3Phase



Equipped With:

4kw Panasonic resonator

B Axis: false
C Axis: false

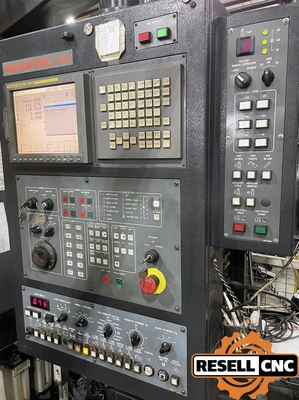

Control Make Model: Fanuc L-64 CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Watts: 2500.0
X Travel: 352.5
Y Axis: false
Y Travel: 38.78
Z Travel: 14.57
