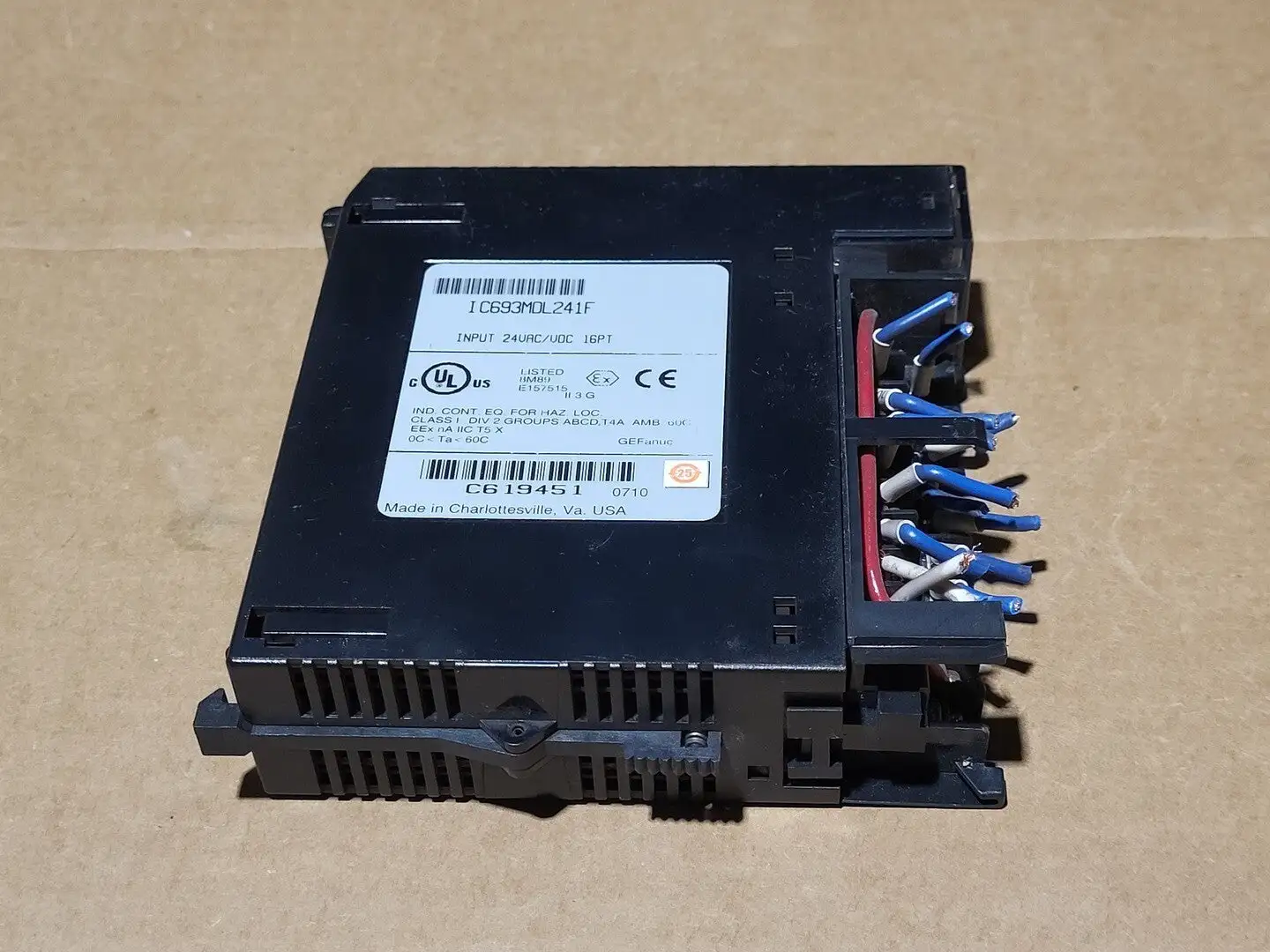

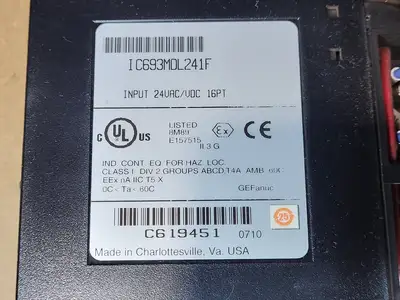

USED GE FANUC IC693MDL241F

Number of Input Points: 16
Input Voltage Range: 24 VAC/VDC
Input Current: Typically 7 mA per point at rated voltage
Input Impedance: Approximately 3.4 k
Isolation: 1500 VAC between field side and logic side
Response Time: Typically 7 ms ON/OFF
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Mounting: Backplane-mounted in GE 90-30 rack
Certifications: UL Listed, CE Marked, ATEX Certified for Hazardous Locations
Hazardous Location Rating: Class I, Division 2, Groups A, B, C, D, T4A
Protection Type: EEx nA IIC T5 X
