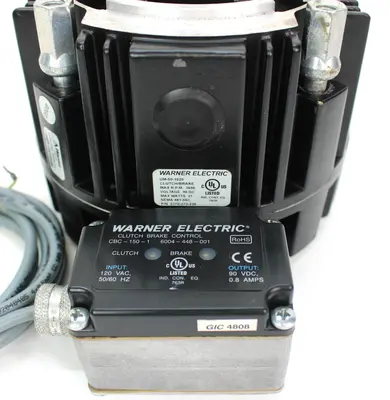

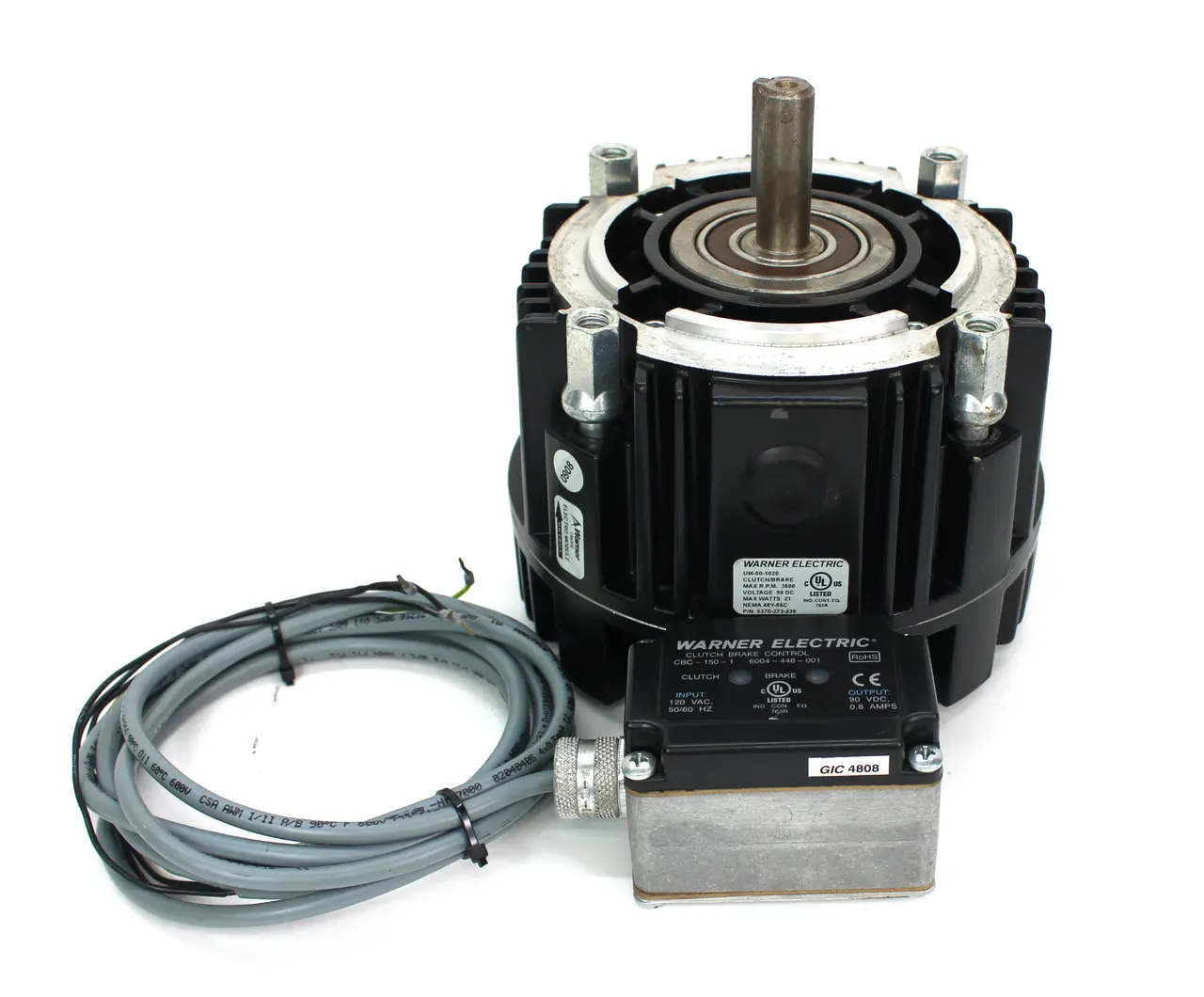

USED WARNER ELECTRIC CBC-150-1

Warner Electric
UM-50 w/CBC-150-1 Gen2, Hollow Bore/Shaft, 16 ft-lb Torque, 90 DC Voltage
Family Name:

Packaged NEMA C-faced
Unit Of Measure:

English
Torque:

16 ft-lb
Model:

UM-50 w/CBC-150-1 Gen2
Old Gen1 Part Number:

5370-273-136
Friction Faces:

Standard
Series:

UM
Series Name:

UniModule
Module Size:

50
NEMA Frame:

56C/48Y
Function:

Motor Clutch/Brake w/Pre-Installed Control
Voltage (DC):

90
Housing:

Open
Input/Output:

Hollow Bore/Shaft
Clutch Brake
Max. R.P.M. 3600
Voltage 90 DC
Max. Watts 21
NEMA 48Y-56C
P/N 5370-273-230
Clutch Brake Control
Input:
120 VAC
50/60 Hz
Output:
90 VDC
0.8 Amps

SKU: IP14227
UPC: 679523694425
Condition: Used
Availability: In Stock
Weight: 20.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523694425
Country/Region of Manufacture: Unknown
Manufacturer: Warner Electric
Part Number: UM-50-1020
RPM: 3600
Shelf: J-107 JE
Model: CBC-150-1
MPN: UM-50-1020
Voltage: 90Vdc
Type: Electric Clutch / Brake with Control
