USED DESTACO 1301RD2H80-330

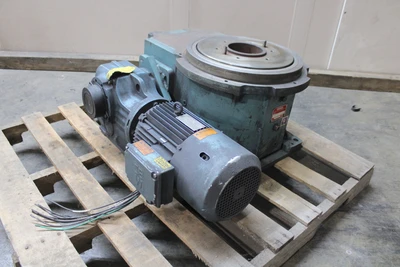

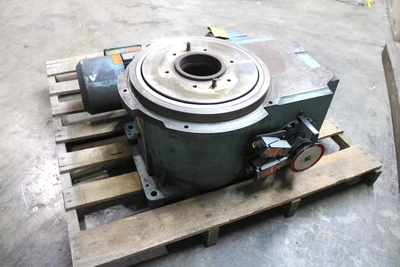

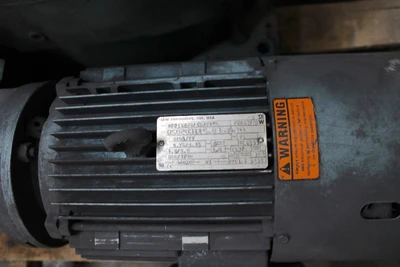

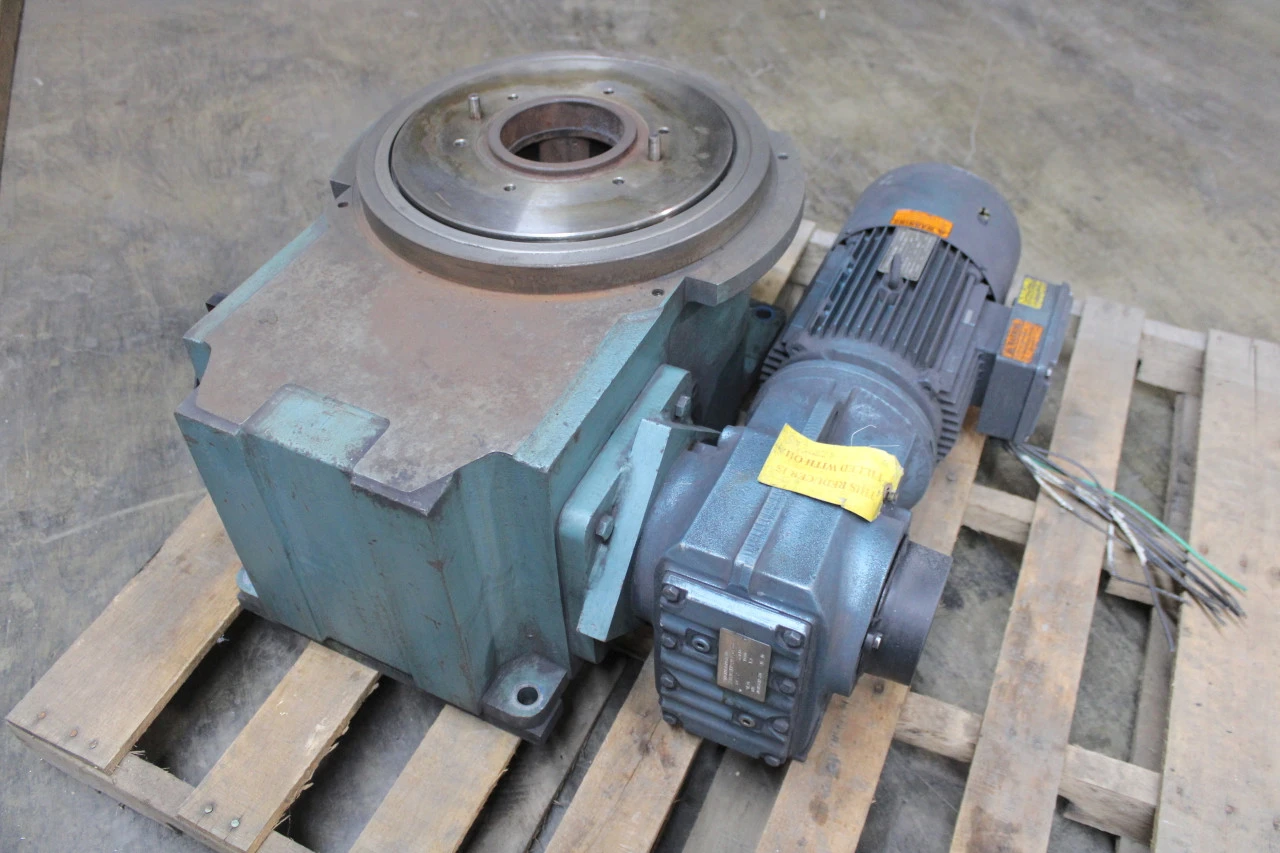

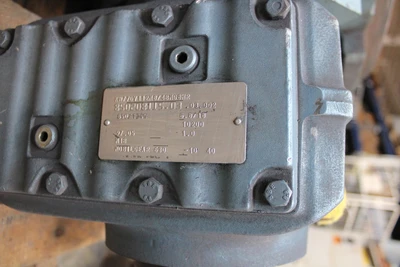

Camco 1301RD2H80-330 Heavy-Duty Rotary Index Drive with Wide Range Motion.  Equpped with a Sew Eurodrive 3Hp Motor and Gear Reducer, Plus Adjustable Limit Switches.
Roller Dial Index Drives offer superior load capabilities making them ideal for medium to high torque applications. Other features include:
Universal mounting including horizontal mounting ideal for trunnion applications
Center thru hole facilitates passage of electrical wiring, pneumatic lines or mechanical linkages
Short camshaft motion periods are well-suited to continuous running applications or for special motion requirements
Available with custom motions such as oscillating motions
Imperial or Metric Product
Imperial
Base Model
1301RD2H80-330
Center Distance (in)
10.500
Center Thru Hole Diameter (in)
4.75
Accuracy (arcsec)
±39
Series
1301RD
Stops
2
Index Period (deg)
330
B10 Torque Capacity (in-lb)
41,144
Maximum Inertia Load at 30 indexes per minute (lb-in² x 1000)
108.000
Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)
29.000
Maximum Torque (in-lb)
47,861
Internal Inertia (lb-in²)
3,245
Output
Flange
Motion
msc.50
Repeatability (arcsec)
±10
Output Radial Capacity (lb)
15,800
Output Thrust/Axial Capacity (lb)
10,800
Output Overturning Moment Capacity (in-lb)
109,000
Mounting Surface Diameter (in)
13.75
Height To Mounting Surface (in)
14.00
Product Type
Flange Output
Family
RD
Product Series Description
1301RD
Product Function
Rotary Positioning
Product Family
Indexers
Product Group
Mechanical Rotary Indexers
Brand

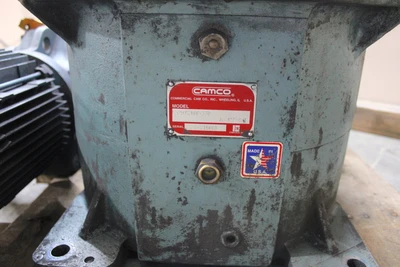

CAMCO
Distributor Group
Camco Indexers & Conveyors

SKU: IP10915
UPC: 635510927273
Condition: Used
Availability: In Stock
Weight: 500.00 LBS
Width: 48.00
(in)
Height: 24.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
Type: Rotary Indexer
Voltage: 460Vac 3 Phase
MPN: 1301RD2H80-330
Horsepower: 3 Hp
Model: 1301RD2H80-330
Series: 1301RD
Phase: 3
Manufacturer: Destaco
Country/Region of Manufacture: United States
GTIN: 635510927273
