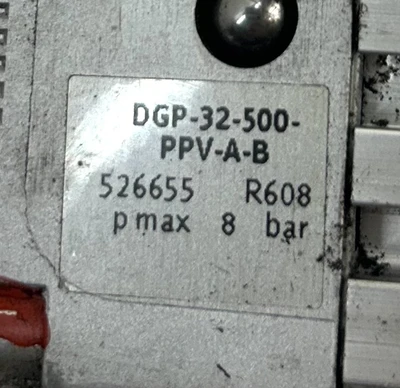

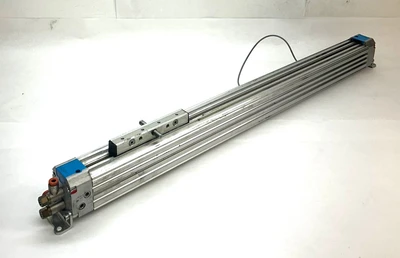

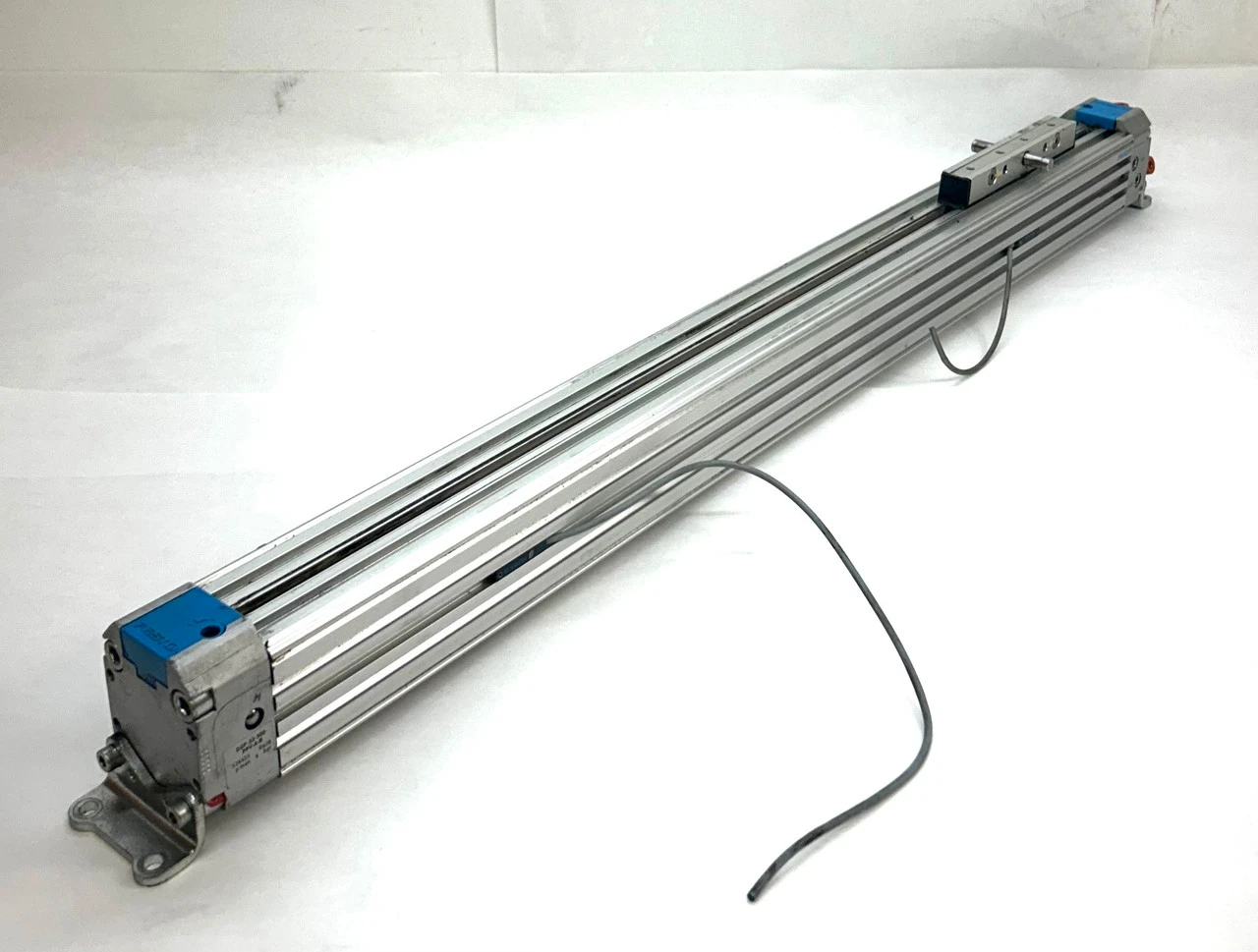

USED FESTO DGP-32-500-PPV-A-B

Festo DGP-32-500-PPV-A-B Linear Drive, 8 Bar
Stroke 500 mm
Piston diameter 32 mm
Cushioning:  PPV: Pneumatic cushioning adjustable at both ends
YXR: Shock absorber, hard characteristic curve
Assembly position Any
Guide Basic guide
Driver principle positive-locking (slot)
Position detection For proximity sensor
Operating pressure 2 ... 8 bar
Mode of operation double-acting
Operating medium
Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium : Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2
Ambient temperature -10 ... 60 °C
Cushioning length 20 mm
Transverse moment Mx (graph) 2 Nm
Theoretical force at 6 bar, return stroke 483 N
Theoretical force at 6 bar, advance stroke 483 N
Moving mass 320 g
Moving mass with 0 mm stroke 320 g
Basic weight for 0 mm stroke 1,550 g
Additional mass factor per 10 mm of stroke 41
Pneumatic connection G1/8
Materials information for cover
Aluminium casting coated
Materials information for seals NBR TPE-U(PU)
Materials information, housing Aluminium Anodised

SKU: IP15626
UPC: 721814244250
Condition: Used
Availability: In Stock
Weight: 10.00 LBS
Width: 8.00
(in)
Height: 8.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814244250
Max. Operating Pressure: 2..8 Bar
Manufacturer: Festo
Max. Pressure: 2..8 Bar
Part Number: DGP-32-500-PPV-A-B
Shelf: B-8
Stroke: 500mm
Model: DGP-32-500-PPV-A-B
MPN: DGP-32-500-PPV-A-B
Type: Linear Drive
