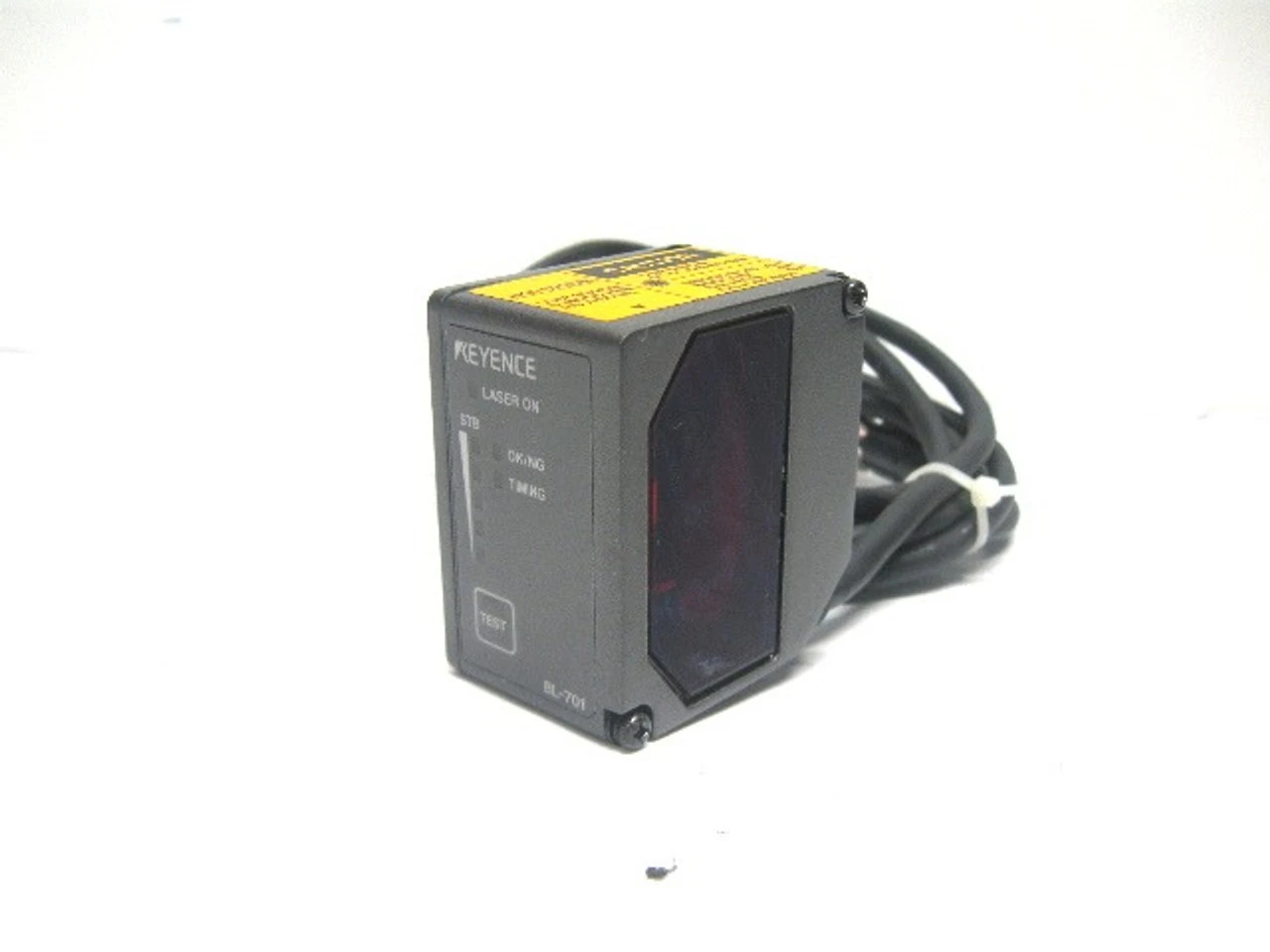

USED KEYENCE BL-701

Keyence BL-701 High Resolution BarCode Scanner 5 Vdc
Model
BL-701
Type
High-resolution type
Type
Scanning method
Raster
Laser
Light source
Visible semiconductor laser (wavelength: 655 nm)
Control output
100 μW
Pulse duration
99.5 μs (IEC 60825-1, JIS C6802), 50 μs (FDA [CDRH] Part 1040.10)
Laser class
Class 2 (JIS C6802), Class 2 (IEC 60825-1), Class II (FDA [CDRH] Part 1040.10)
Reading
Supported codes
CODE39; ITF; Industrial 2 of 5; NW-7 (Codabar); JAN, EAN, UPC; CODE128; COOP 2 of 5; CODE93
Number of readable digits
32 digits (64 digits for CODE128 with start character C)
*1
Readable bar width
0.15 mm to 1.0 mm
0.006" to 0.04"
Reading distance
160 to 370 mm
6.30” to 14.57"
(narrow bar width: 0.5 mm
0.02"
)
Focal point
230 mm
9.06"
Largest readable label width
310 mm
12.20"
 (335 mm
13.19"
)
*2
PCS
0.6 or more (reflectance of the white part: 75% or more)
Scanning rate
700 scans/sec.
I/O specifications
Input terminals
Number of inputs
1
Input format
Non-voltage or voltage input
*3
.
Output terminals
Number of outputs
2 (OK and NG)
Output
NPN open collector
Rated load
24 VDC, 30 mA
Leakage current (at OFF)
0.1 mA or less
Residual voltage (at ON)
0.5V or less
Serial interface
Communication method
Conforms to EIA RS-232C
Communication speed
600‹Û1200‹Û2400‹Û4800‹Û9600‹Û19200‹Û31250‹Û38400bps
Synchronization between the transmitter and receiver
Asynchronous
Data bit length
7 or 8 bits
Stop bit length
1 bit/2 bits
Parity check
None, odd, even
Rating
Power voltage
5 VDC ± 5%
Voltage consumption
510 mA or less
Environmental resistance
Enclosure rating
IP65
Operating ambientluminance
Sunlight: 10,000 lux, incandescent lamp: 6,000 lux
Operating temperature range
0 to +40‰ãÄ
32°F to 104°F
Operating ambient humidity
35 to 85% RH (No condensation)
Operating environment
No dust or corrosive gas present
Vibration
10 to 55 Hz, 1.5 mm
0.06"
 double amplitude for 2 hours in each of the X, Y, and Z directions
Weight
Approx. 300 g (including the cable)

SKU: IP489501144
UPC: 646412768123
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: BarCode Scanner
Voltage: 5 Vdc
MPN: BL-701
Model: BL-701
Shelf: O-5
Manufacturer: Keyence
Country/Region of Manufacture: Japan
GTIN: 646412768123
