USED CAMCO 1305RDM12H40-90
Overview

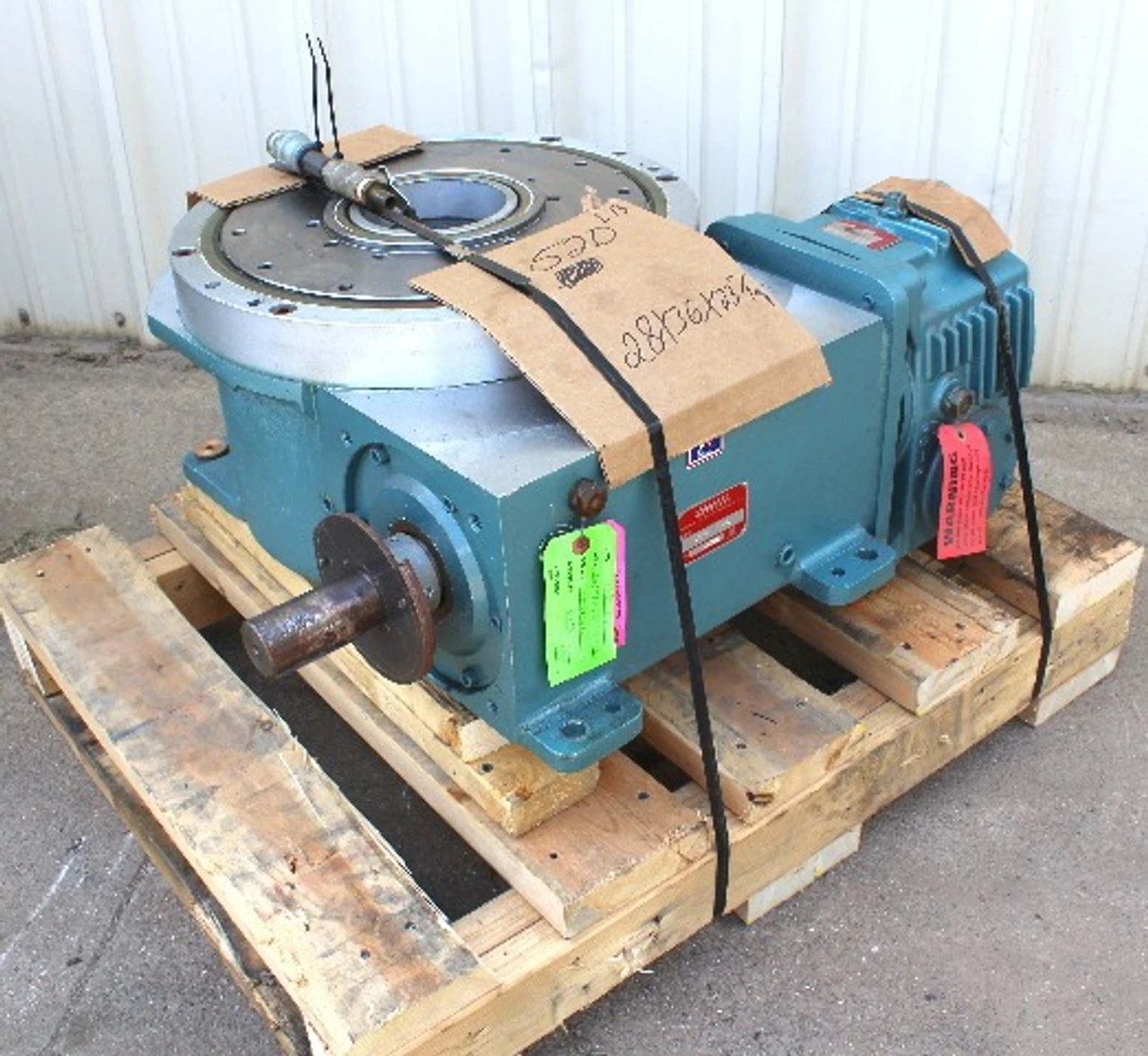

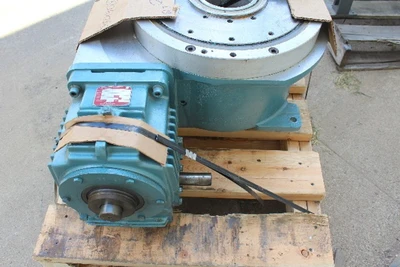

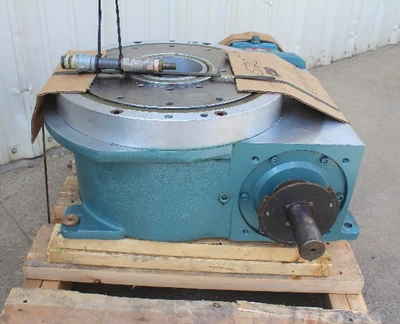

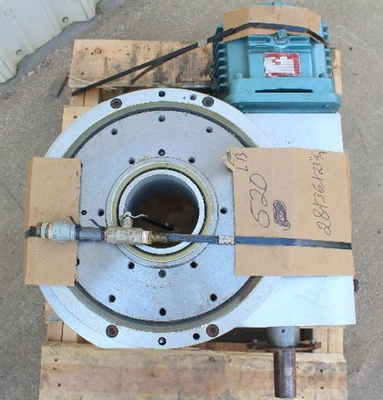

Camco Indexer 1305RDM12H40-90 Rotary Table 12 Station 15:1 Ratio 5" Through HoleåÊ
Click Here For Spec Sheet
Features
Û¢ 7300C Reducer (Ratios from 15:1 to 60:1)
Û¢ Double Extended Camshaft (Input Shaft)
Û¢ Center Thru Hole (5.00 in. Diameter)
Û¢ Cycle Cam and Limit Switch Mounted to Camshaft
Û¢ Right Hand Cam
Base Model
1305RDM12H40-90
Drive Package
SHV48880C-Y7A
Accuracy (arcsec)
å±.007" at 36" Radius
Series
1305RDM
Output
Flange
Stops
12
Index Period (deg)
330
Center Distance (in)
5"
Repeatability (arcsec)
å±10
Family
RDM
Output Thrust/Axial Capacity (lb)
11,650 lbs
Output Overturning Moment Capacity (in-lb)
40,528 in-lb
Center Thru Hole Diameter (in)
5"
Specs
SKU: IP499976605
UPC: 646412771208
Condition: Used
Availability: In Stock
Weight: 540.00 LBS
Width: 40.00
(in)
Height: 30.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
Type: Rotary Indexer
MPN: 1305RDM12H40-90
Model: 1305RDM12H40-90
Series: 1305RDM
RPM: 1750
Manufacturer: Camco
Ratio: 15:1
Increment: 12 Station
Country/Region of Manufacture: United States
Shelf: Freight
GTIN: 646412771208
