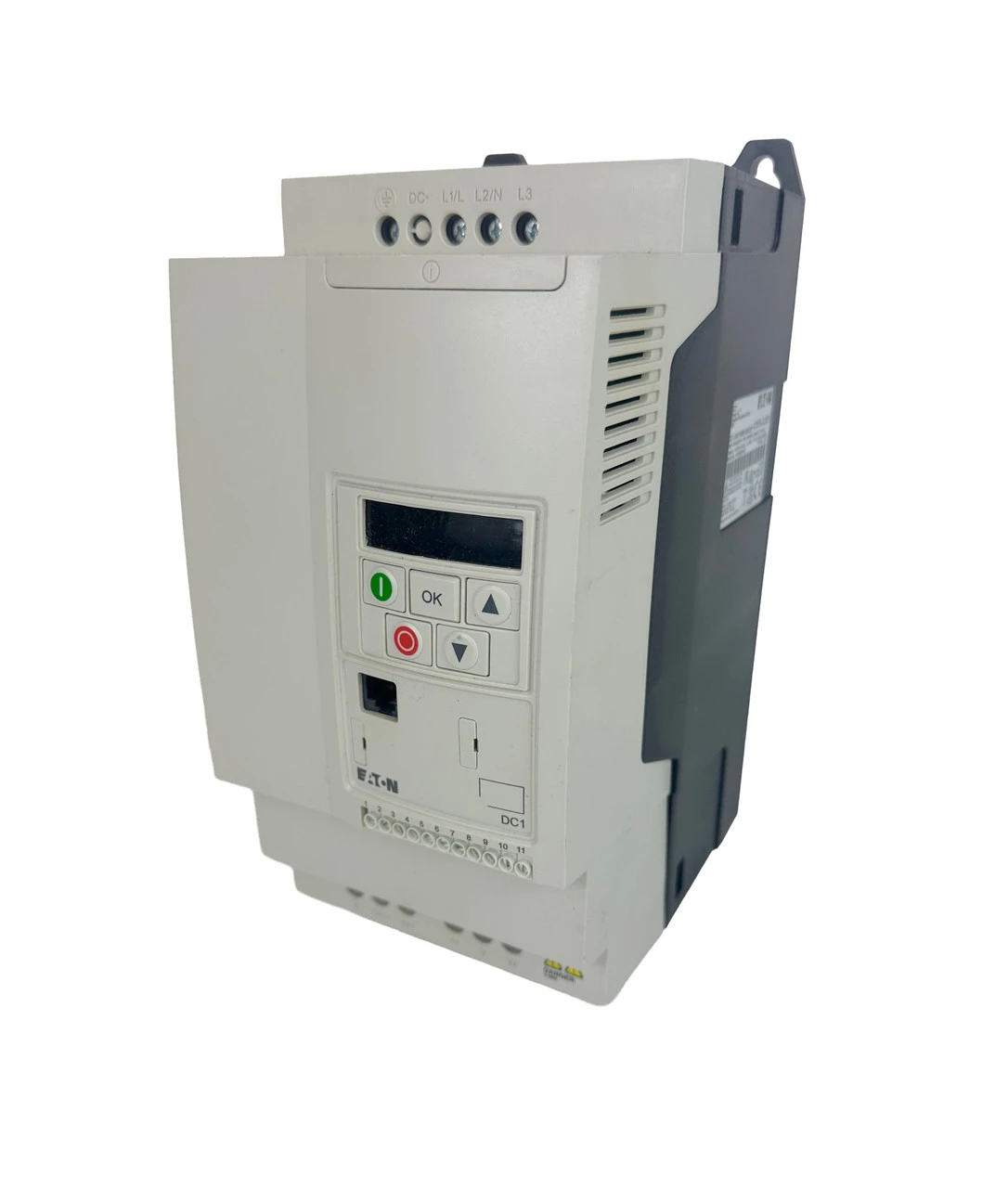

Eaton Power XL 7.5Hp 5.5Kw Variable Frequency Drive / Adjustable Speed Control. Excellent Condition with 30 Day Warranty.
Manufacturer Part Number
EATON-DC134014NBA20CE1
Manufacturer
Cutler Hammer, Div of Eaton
Product Series
DC1
Family Series
Cutler Hammer, Div of Eaton Drives, DC1 Series
Description
Eaton DC1 device series variable frequency drive, IP20 480V IN/460V OUT 7.5HP, 14A ENH FW
Phase
3
HP (Constant Torque Rating)
7.5 hp
Amps (Constant Torque Rating)
14 A
Brake
Dynamic Braking, Flux Braking
Closed Loop
No
AC Line Regenerative
No
Operator Controls
Built In
Motor Control-Max Level
Open Loop Vector (Sensorless Vector)
Mounting
Panel
Nominal Input Voltage
380 VAC, 415 VAC, 480 VAC
AC Voltage
380-480 VAC
Frequency
500 Hz
Frame Size
FS4
Protection Rating
IP20
Dynamic Braking
Included
Height
13 "
Width
6.25 "
Depth
9.75 "
Comments
Enhanced Firmware, SmartWire Capability, Contactor Style Power Wiring, Input Top, Output Bottom
Net Weight
10 lbs
Gross Weight
10 lbs
Product Description
Eaton DC1 VFD
Eaton’s PowerXL™ DC1 variable frequency drives are the next generation of drives specifically engineered for today’s machinery applications. The DC1 is compact with only 14 basic parameters, SmartWire-DT™ connectivity, and outstanding ease of mounting and installation. The DC1 is perfect for quick commissioning and is ideal for panel builders. This drive supports single-phase motor applications, and detachable terminal blocks make control wiring much easier..
Three Phase Main Connections
460VAC Main Voltage
Three Phase Output Connection
460VAC Output
7.5 HP
14 Amp
No Internal RFI Filter
No Internal Brake Chopper
LED Display
IP20/Nema 0 Housing
| Weight | 13.00 LBS | 13.00 LBS |
SKU: IP15269
UPC: 721814239447
Condition: Used
Availability: In Stock
Weight: 13.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814239430
Country/Region of Manufacture: United Kingdom
Manufacturer: Eaton Corp.
Input Voltage: 460 V
Model: DC1-34030NB-A20CE1
MPN: DC1-34030NB-A20CE1
Type: Variable Frequency Drive
Shelf: D-13
