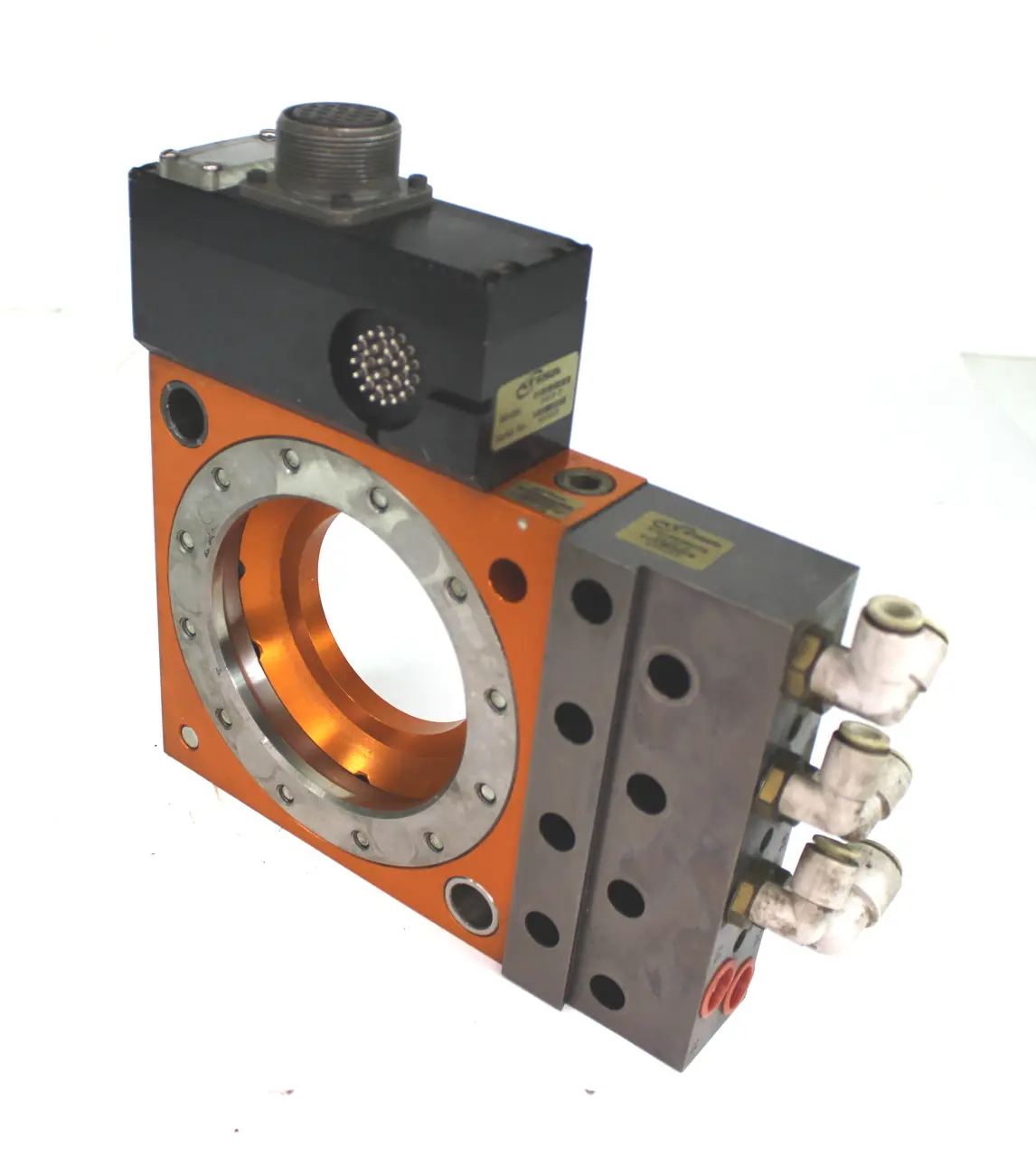

USED ATI QC202-T

ATI Robot End of Arm Tooling Quick Change QC202T with FA08-T & DS18-T IO Valve
QC202T
Modular: Power, coolant, servo, DeviceNet, and signal features are built into separate modules making maintenance easy - increasing commonality.
Extremely High Moment Capacity.
No exposed hoses or cables for DeviceNet: The DeviceNet module with lock/unlock valve is internally plumbed and interfaces with internal cable routing in the Tool Changer body - making it easy to add and remove the DeviceNet module.
Increased Strength: The QC-200 locking mechanism exceeds 200kg robot load specifications.
Easy Dress: The modules are designed to place electrical, pneumatic, and water ports in-line.
Weight and Size Reduction: Weight and size are kept as small as possible without reducing reliability or performance.
Suggested Payload Limit:
450 lb
Locking Force @ 80 psi (5.5 bar):
7000 lb
Static Moment Capacity (X & Y):
24000 lbf-in
Static Moment Capacity (Z):
20000 lbf-in
Positional Repeatability - (X, Y, & Z):
0.0006 in
Weight - when coupled:
16.8 lb
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar):
0.1 in
Pneumatic Pass-through Ports (qty) Size:
(1) 3/8 NPT *
FA08-T
(8) 3/8 NPT pass-through ports pneumatic module - Tool side
Description:
3/8 NPT ports pneumatic module
Cv Rating:
1.6
Weight:
4.5 lbs (2.04 kg)
Materials:
Zycor-plated housings
Rubber, PVC, and stainless steel valve components.
Operational Temperature Range:
-20 å¡F - 150 å¡F (-28.9 å¡C - 65.6 å¡C)
DS18-T
Discrete signal module, 18-pin pass-through with (2) 0-99 Tool ID (Mates with DS26 Master side) - Tool side
Description:
Discrete signal module, single-solenoid, spring return valve, TSI on Master, up to 18 pass-through signals. [Mates with DS14 (0-999 Tool ID) and DS18 (0-99 Tool ID)]
Weight:
3.18 lb. (1.44 kg)
Materials:
Aluminum housings/covers
Clear polycarbonate window
Rhodium-plated contacts
Nitrile seals.
Elec. Rating:
Control signals - 24VDC
Pass-through signals - 5 Amp/250V
Operational Temperature Range:
-20 å¡F - 150 å¡F (-28.9 å¡C - 65.6 å¡C)

SKU: IP479154591
UPC: 641752904668
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
Type: Quick Change Tool Adapter
MPN: QC202-T
Model: QC202-T
Shelf: B-4
Manufacturer: ATI
Country/Region of Manufacture: United States
GTIN: 641752904668
