USED CKD AX4150TH-X703266

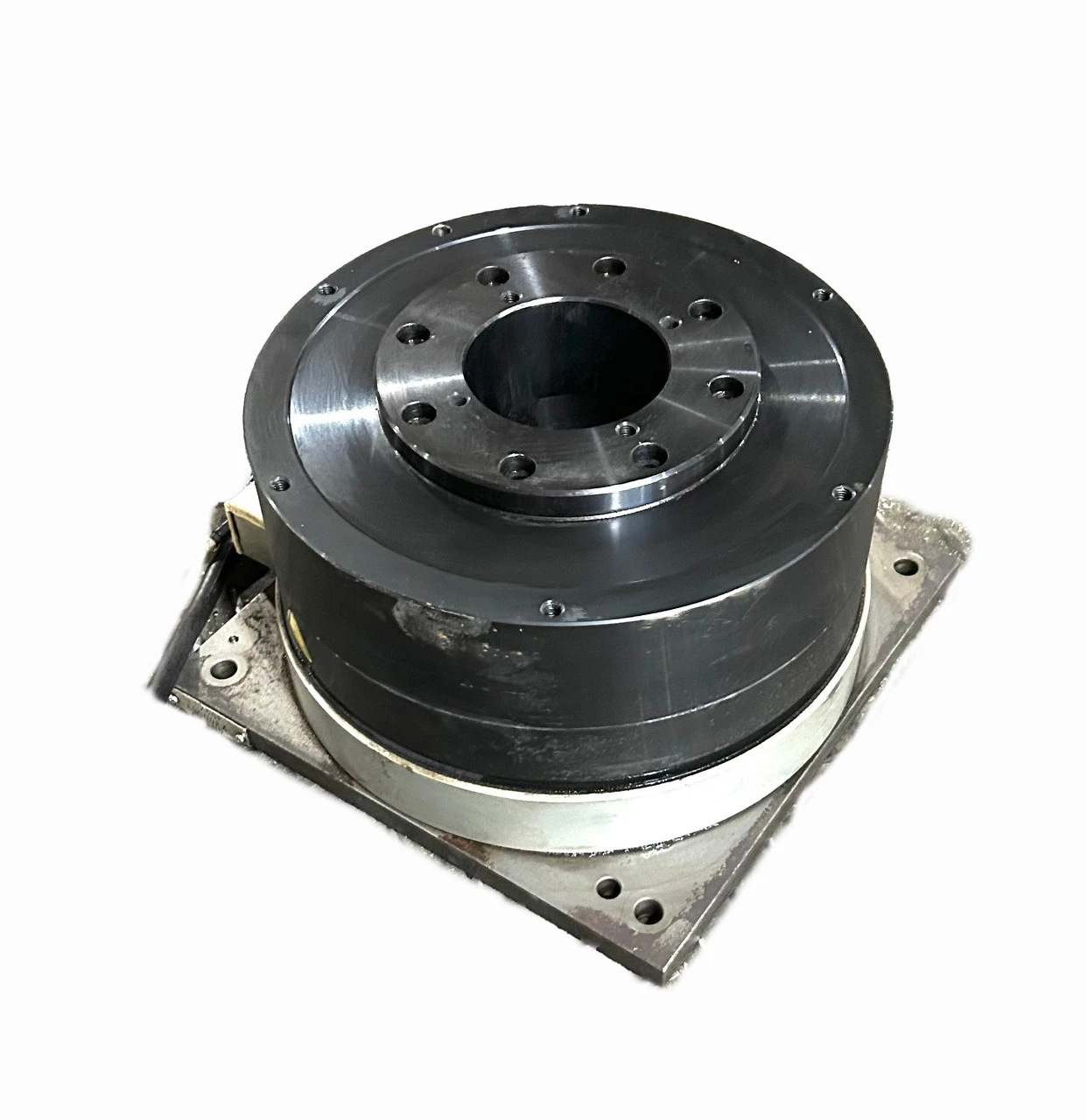

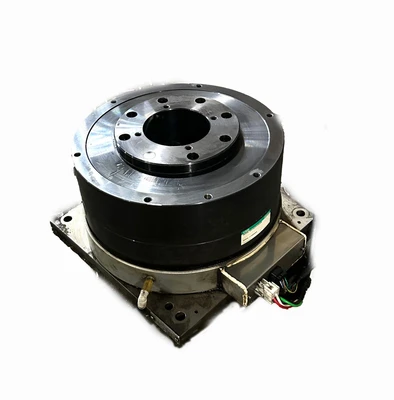

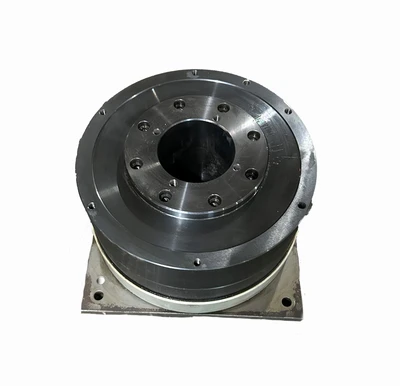

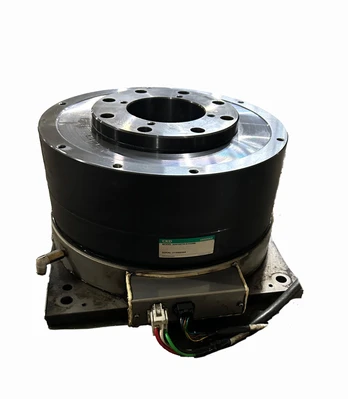

CKD AX4150TH-X703266 Absodex Rotary Indexer with Brake
- Torque : 150 Nm
- Driver : TH
- Continuous Output Torque : 50 Nm
- Max. Rotation Speed : 100 (*1) rpm
- Allowable Moment Load : 300 Nm
- Output Shaft Moment of Inertia Kg. m2 : 0.2120
- Allowable Moment Load of Inertia Kg m2 : 75.00 (*2)
- Index Accuracy  (*4) Sec : 30
- Repeatability (*4) Sec : 5
- Output Shaft Friction Torque : 10.0 Nm
- Motor Insulation Class : Class F
- Motor Withstand Voltage : 1,500 VAC 1 min
- Motor Insulation Resistance : 10 M or More 500 VDC
- Output Shaft Runout (4*) : 0.03mm
- Output Shaft Surface Runout (4*) : 0.05mm
- Degree of Protection : IP20

SKU: IP15295
UPC: 721814241037
Condition: Used
Availability: In Stock
Weight: 112.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 24.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814241037
Country/Region of Manufacture: Japan
Manufacturer: CKD
Part Number: AX4150TH-X703266
Shelf: Freight
Model: AX4150TH-X703266
MPN: AX4150TH-X703266
Type: Absodex
