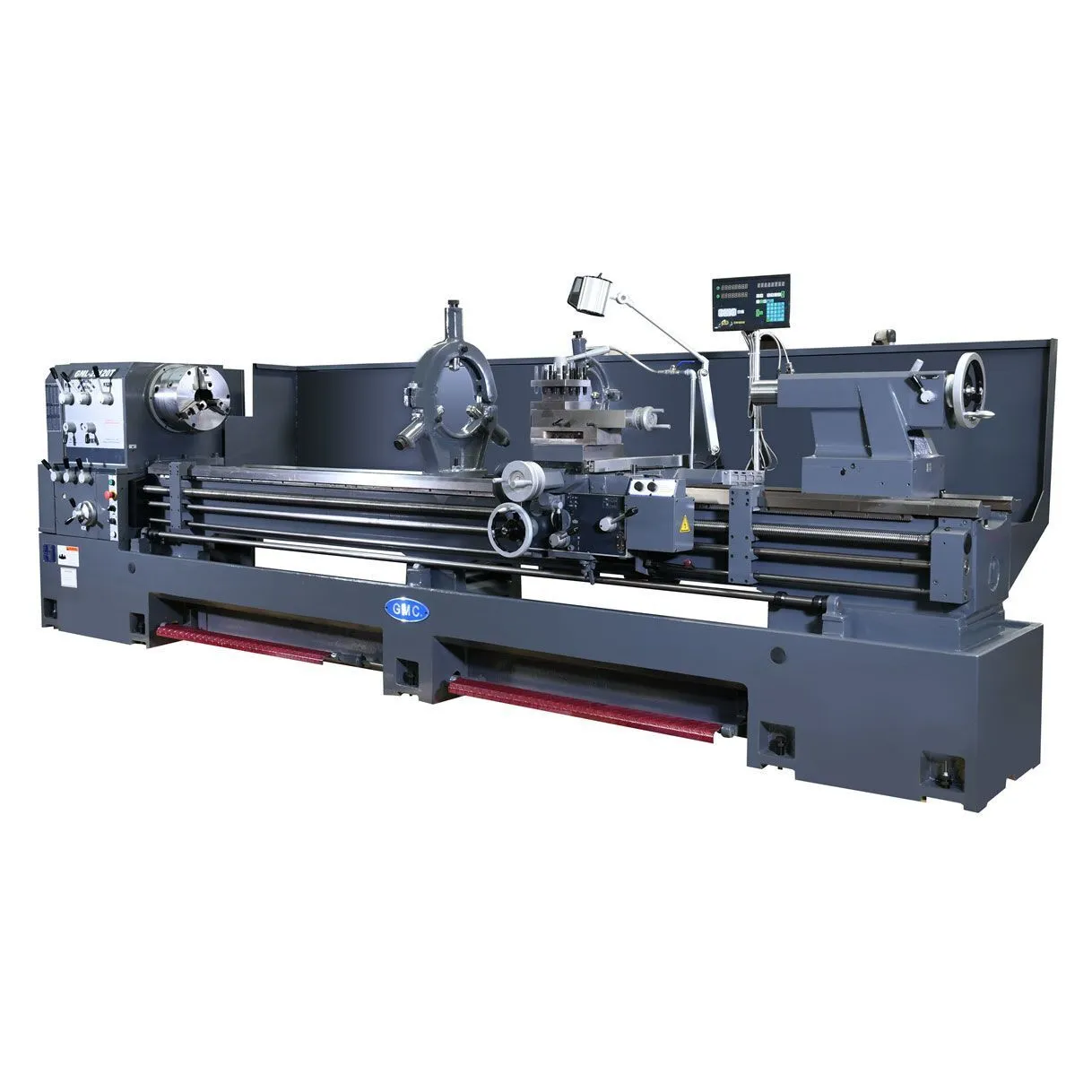

The GMC GML-33160T Heavy Duty Precision Gap Bed Lathe has a 32 x 160 inch capacity. Large spindle bore 4-3/4 inch. Heavy Duty spindle D1-11. Heavy Duty main motor 15HP, 220 or 440v, 3-phase. Free CARMAR DRO installed.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 33" | 838.2 mm |
| Distance Between Centers | 160" | 4,064 mm |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 440v | 440v |
| Amps | 30 | 30 |
| Shipping Dimensions | 232 x 44 x 79 | 232 x 44 x 79 |
| Dimensions | 219 x 50 x 76 | 219 x 50 x 76 |
| Weight | 11,230 lbs. | 11,230 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
3900-5160: 6pc ALORIS type QC tool post set - $2,850.00
3900-5005: Live Center - $195.00
Taper Attachment, Installed - $3,150.00
20" steady rest with roller jaws - $4,950.00
