USED ADVANTAGE MLS-8

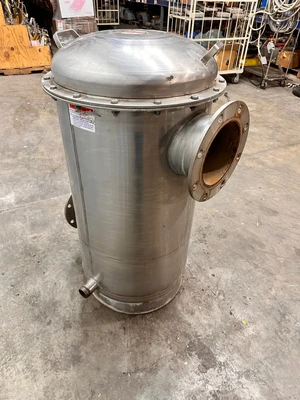

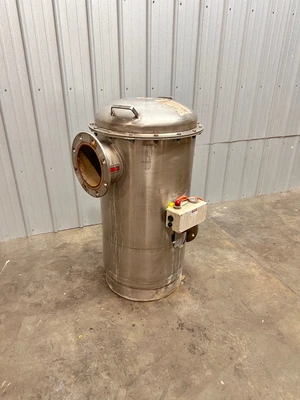

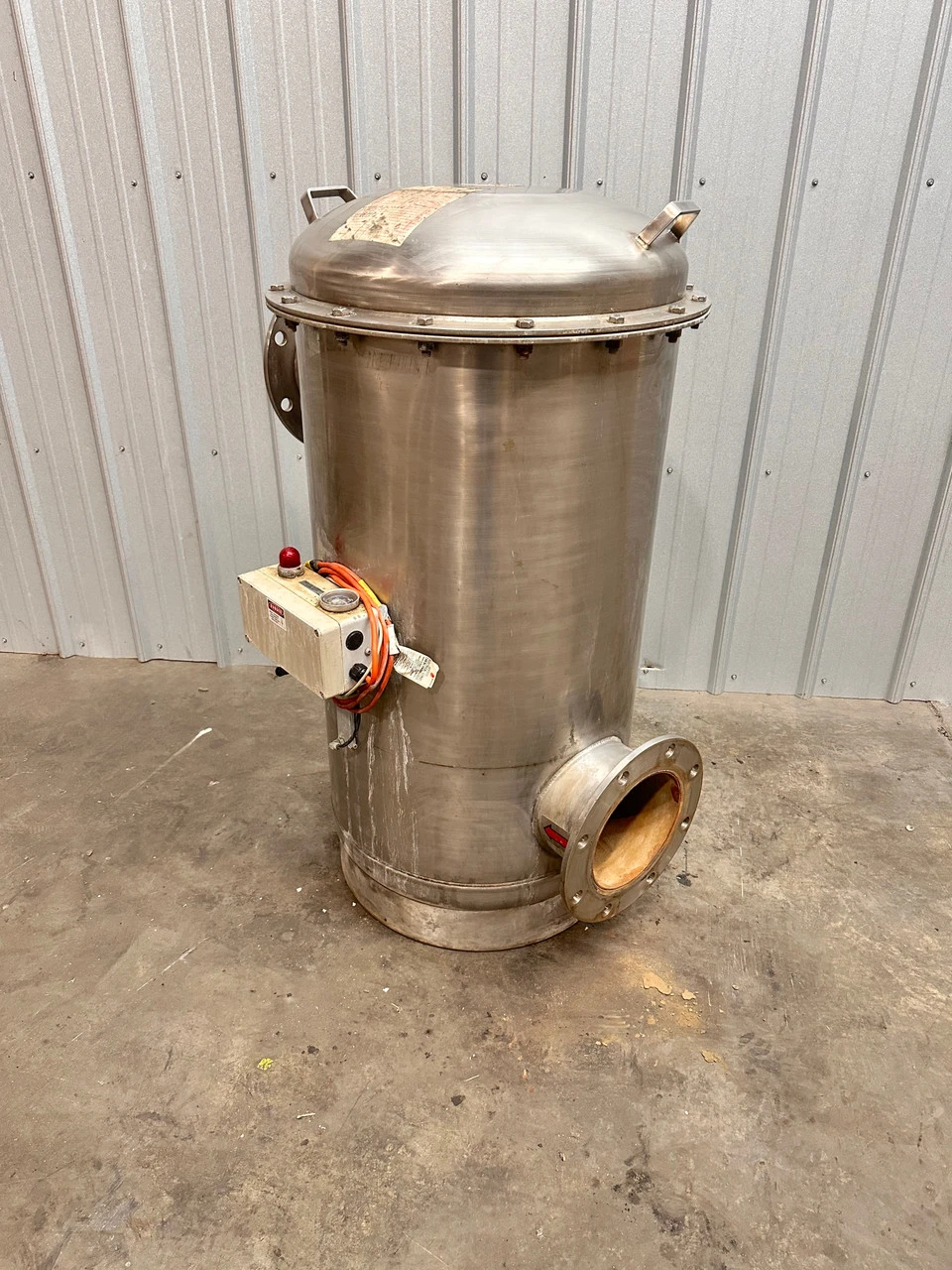

Advantage MLS-8 Stainless Steel Process Water Filter 1300 GPM 8" Flange 150 PSI.
Model: MLS-8
Max. Flow Rate: 1300 GPM
Working Pressure: 150 PSI

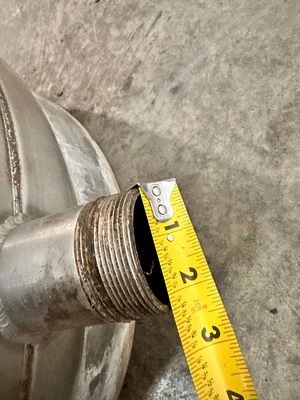

Flush Port Size: 1 1/2"

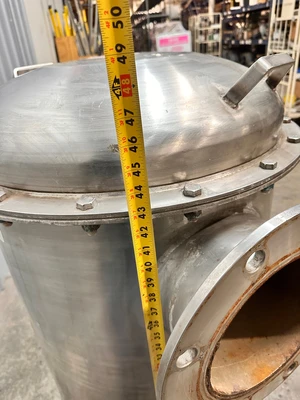

Unit Dimentions: 23" Diameter x 48" Tall x 31 3/4" Wide

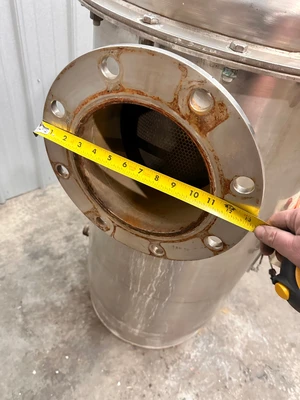

Connections: 8" Flange Inlet & Outlet
Lid Style: Bolt-on Lid
Unit Dry Weight: 219 Lbs
Product Overview
Highly efficient stainless steel strainers which feature a large conical screen offering substantially more filtering screen area versus traditional y-strainers or basket strainers.
Water enters the bottom of the strainer housing and flows upward. Heavier debris and particulate is accelerated downward away from the conical screen into the sizable reservoir at the base of the strainer. The debris can then be flushed from the reservoi
The flow path through the strainer in combination with the large filtering screen surface area allows these filters to operate with less than a 1 psi pressure drop at the maximum flow rate when clean.
Construction
Body and filter are made of 304 stainless steel
50 mesh (297 micron) and 100 mesh (149 micron) standard filter screens
1/4" NPT pressure gauge ports
1/4" air relief port

SKU: IP14561
Condition: Used
Availability: In Stock
Weight: 300.00 LBS
Width: 40.00
(in)
Height: 55.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: United States
Material: Stainless Steel
Max. PSI: 150 PSI
Manufacturer: Advantage
Capacity: 1300 GPM
Model: MLS-8
MPN: MLS-8
Type: Inline Process Water Filtration
Equipment Type: Process Water Filter
