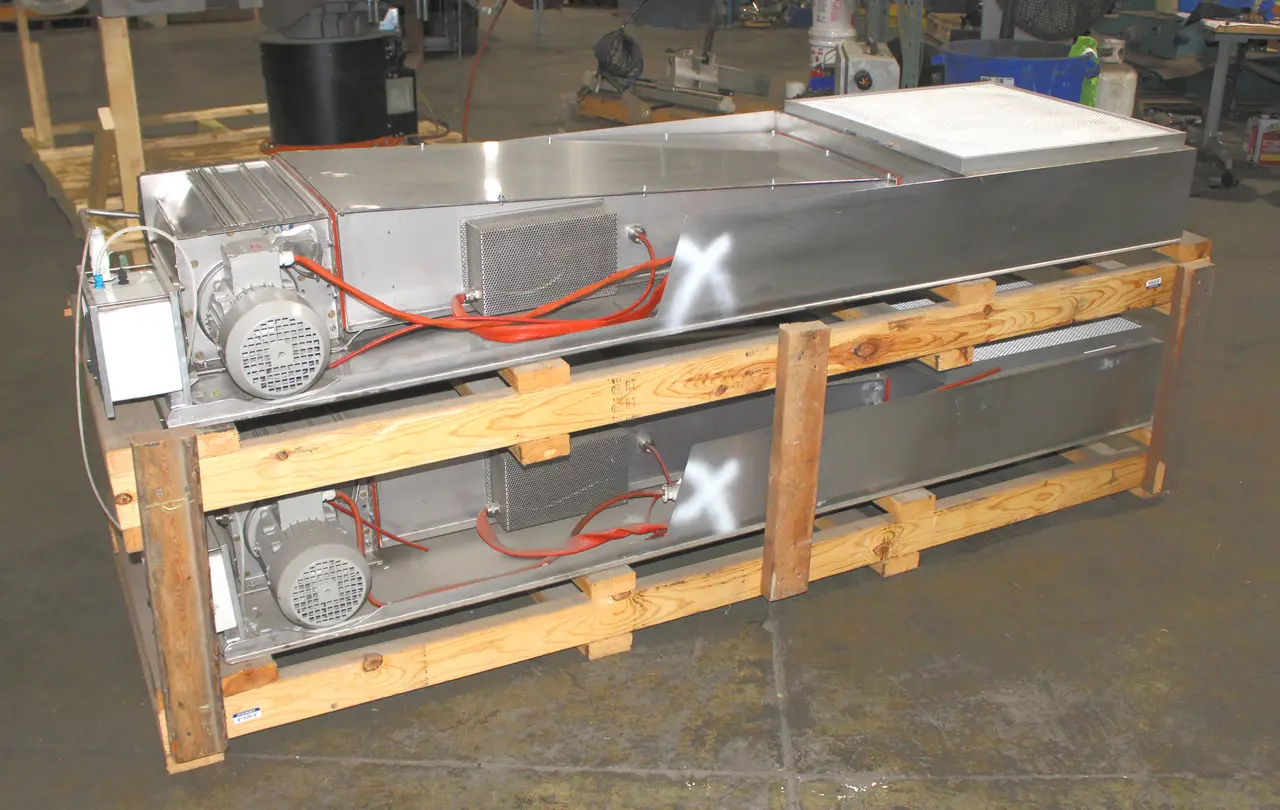

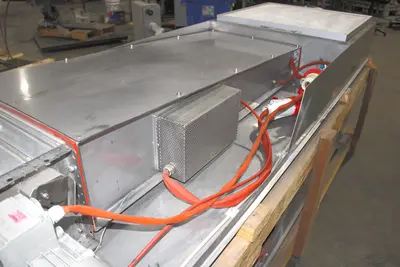

220V 12,000W Electric Heater Blower Assembly w/ LTG TMR 150/401/N Tangential Fan
Total Length: 7' (ft)
Total Width: 26.5" (in)
Total Height: 9" (in)
Heating Element:
220V
40,944 BTU
12,000 Watts Total
LTG Tangential Fan:
TMR 150/401/N
230V 50Hz
Max Medium Temp: -15F-(+160F)
Impeller Length 16IN/401MM
Stainless Steel Casing
Galvanized Steel Impeller
400/460V 50/60Hz IP 55 4Pole Motor
Air Volume: 1450 CFM/ 2460m3/h
1760 Max RPM
1HP/ 0.75KW
Siemens 1LA7083-4AA13-Z Motor w/ Fan

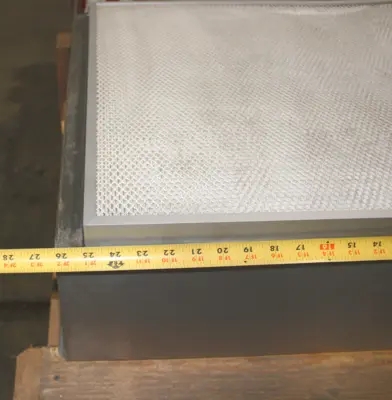

Camfil Filter:
MX14-2G10-1PU
Size: 610x610x90mm
Nominal Airflow 605m3/h
Filter Class H14
Briem Differential Pressure Gauge:
MD 201-2-B
Display Range: 0-200Pa
Adjusting Range: 40-125Pa
Pressure Connectors:
blue= high pressure
black= low pressure
| Weight | 300.00 LBS | 300.00 LBS |
SKU: IP12642
UPC: 635510921141
Condition: Used
Availability: In Stock
Weight: 300.00 LBS
Width: 32.00
(in)
Height: 22.00
(in)
Depth: 95.00
(in)
Shipping: Calculated at Checkout
Type: Electric Heater w/ Fan & Filter
Voltage: 220V
MPN: TMR 150/401/N
Horsepower: 1Hp
Model: MX14-2G10-1PU
Shelf: Freight
Hz: 50/60Hz
Frame: IP 55
RPM: 1760RPM Max
Overall Length: 84"/7'
Part Number: MD 201-2-B
Poles: 4
Manufacturer: Custom Built Assembly
Watts: 12,000W
GTIN: 635510921141
