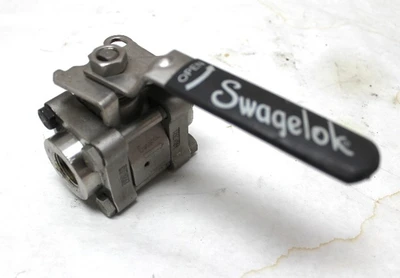

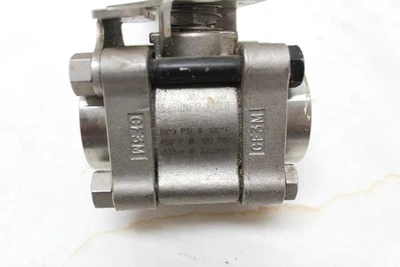

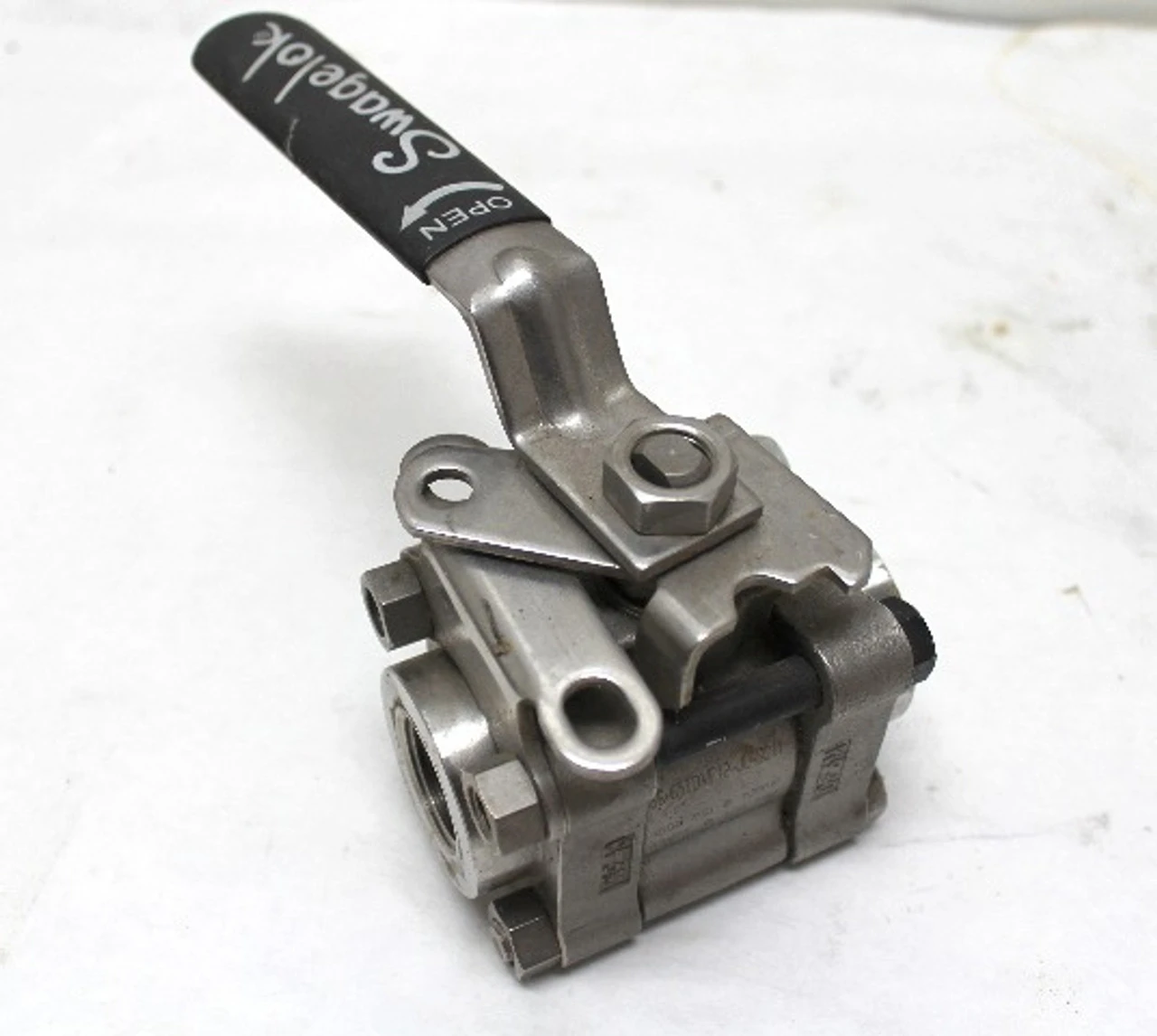

USED SWAGELOK SS-65TDVF12-JL

Swagelok SS-65TDVF12-JL-SC11 Shutoff Valve 316 Stainless Steel 3/4" NPT 1000 PSI
Body Material
316 Stainless Steel
Connection 1 Size
3/4 in.
Connection 1 Type
Female NPT
Available Option
Locking Lever Handle
Cleaning Process
Standard Cleaning and Packaging (SC-10)
Connection 2 Size
3/4 in.
Connection 2 Type
Female NPT
Size
3/4 in. Nominal - 65 Series
Ball/Stem Material
Stainless Steel
Fastener Material
316 Stainless Steel
Flange Seal Material
Fluorocarbon FKM
Flow Pattern
2-Way, Shutoff, Straight
Handle Color
Black
Handle Style
Locking SS Lever
Lubricant
DOW 111 and WL8 Mix
Max Temperature Pressure Rating
450°F @ 100 PSIG /232°C @ 6.8 BAR
Packing
Reinforced PTFE
Room Temperature Pressure Rating
1000 PSIG @ 100°F /68.9 BAR @ 37°C
Seat Material
Reinforced PTFE
Seat Spring Material
316 Stainless Steel
Service Class
General
Stem Bearing Material
Alloy X750
Testing
Testing according to WS-22
Valve Material
Stainless Steel

SKU: IP6362
UPC: 646412765887
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: Ball Valve
MPN: SS-65TDVF12-JL
Model: SS-65TDVF12-JL
Shelf: A-6
Series: 65 Series
PSI: 1000 Psi
Manufacturer: Swagelok
Application: Industrial
Material: 316SS
Connection Size: 3/4"
Thread: Female
Country/Region of Manufacture: United States
GTIN: 646412765887
Part Number: SS-65TDVF12-JL-SC11
